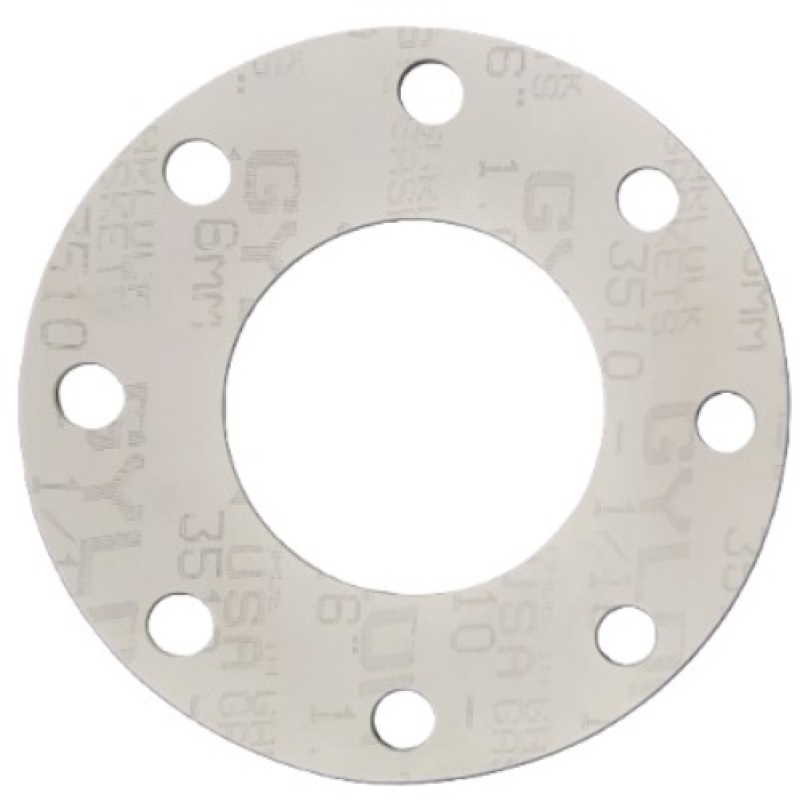

8 inch Full Face Gasket, 3510 Series Garlock, 1/8 inch Thickness, 8 bolt holes, Bolt Hole Diameter: 7/8 inch, Tempature range (F): 500 to -450, Pressure Class 150, Color: Off-White, For Use With: Strong Caustics, Moderate Acids, Chlorine, Gases, Monomers, Steam, Hydrocarbons, Cryogenics, and Aluminum Fluoride, Gasket Compound Material: PTFE with Barium Sulfate
| Bolt Circle Diameter | : | 11.75 in |
| Bolt Hole Size | : | 7/8 in |
| Color | : | Off-White |
| Compliances | : | ABS Certified, FDA Compliant, REACH Compliant, RoHS Compliant, USP VI 87 Compliant, USP VI 88 Compliant, ADI/TSE Free |
| Inside Diameter | : | 8.625 in |
| Item Type | : | Gasket-Full Face |
| Material | : | Gylon |
| Nominal/Diameter Size | : | 8 in |
| Number of Bolt Holes | : | 8 |
| Outside Diameter | : | 13.50 in |
| Pressure Class | : | 150 lb |
| Pressure Rating | : | 1200 psi |
| Series | : | 3510 |
| Temperature Range | : | 500 to -450 deg f |
| Thickness | : | 1/8 in |
