Spirax Sarco 74115 TSFTI3011/2

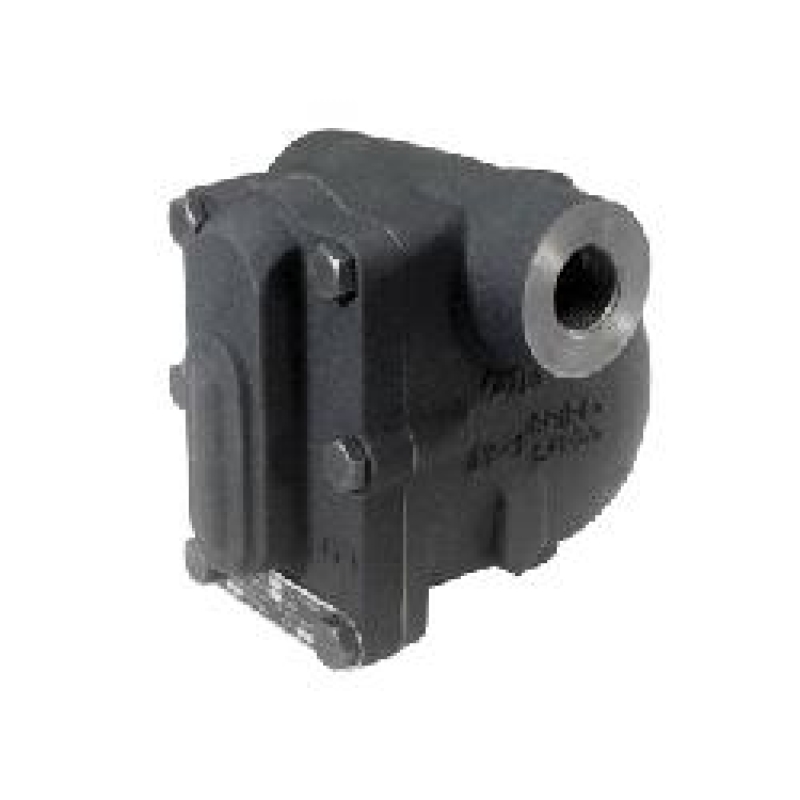

Spirax Sarco 74115, FTI-30 Float and Thermostatic Steam Trap, 1-1/2 in, NPT, 450 deg F, 30 psig, Cast Iron

  • Brand Name: Spirax Sarco
  • Manufacturers: Spirax-Sarco Inc
  • MKSPN: TSFTI3011/2
  • MPN: 74115
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

The Spirax Sarco FTI contains a float valve mechanism which modulates to discharge condensate continuously at steam temperature while non-condensable gases are released by a separate internal balanced pressure thermostatic air vent. The in-line piping connections simplify installation.

Spirax Sarco Float and Thermostatic Steam Trap, 1-1/2 in Nominal, NPT, 30 psig, Cast Iron, 450 deg F

End Style      :      FNPT
Item Type      :      Float and Thermostatic Steam Trap
Length      :      6-1/3 in
Material      :      Cast Iron
Nominal/Diameter Size      :      1-1/2 in
Pressure Rating      :      30
Series      :      FTI30
Temperature Rating      :      450 deg F
Stainless steel internals
