Milwaukee Valve 1150-12 VM11501/2 | MKS Pipe and Valve
Milwaukee Valve 1150-12 VM11501/2
Print this page Send this pageSend this Page
  1. pin-int

Milwaukee Valve 1150-12 VM11501/2

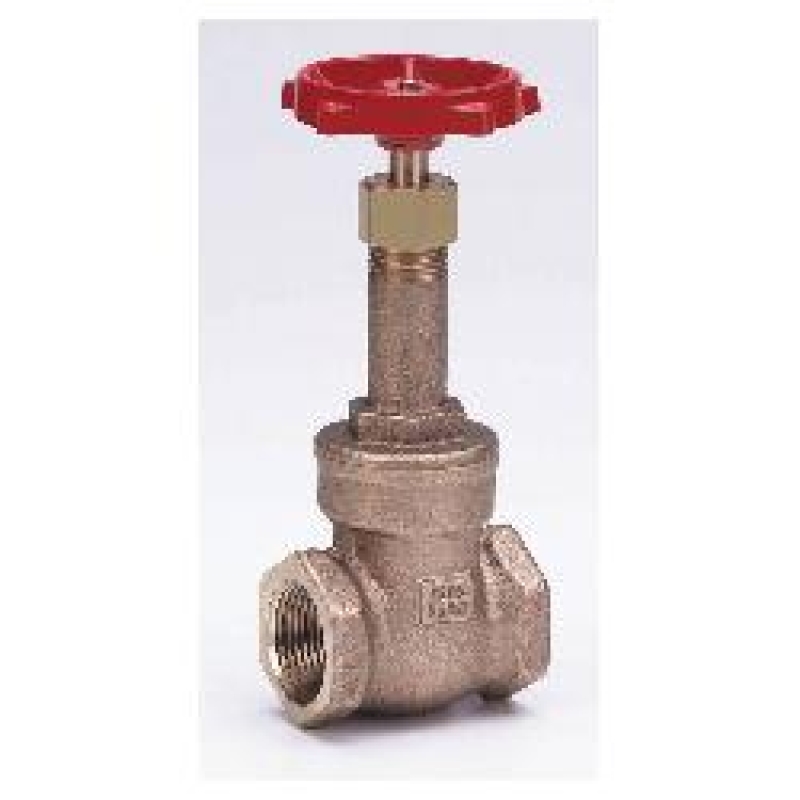

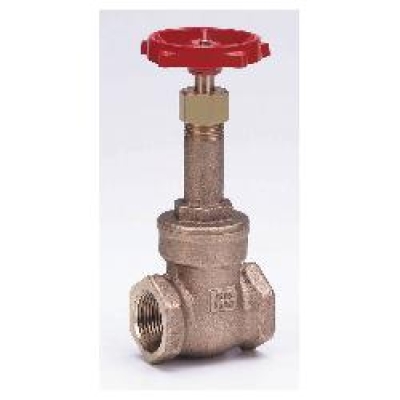

Milwaukee Valve 1150-12 Gate Valve, 1/2 in Nominal, FNPT End Style, 150 lb, Bronze Body, Handwheel Actuator, Domestic

  • Brand Name: Milwaukee Valve
  • Manufacturers: Milwaukee Valve
  • MKSPN: VM11501/2
  • MPN: 1150-12
  • UPC: 697988177338
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

Milwaukee Valve Gate Valve, Series: 1150, 1/2 in Nominal, FNPT End Style, 300 psi WOG Pressure, 150 lb Pressure Class, 406 deg F, Handwheel Actuator, 2 in Inlet to Outlet Length, 4.38 in Top to Inlet Center, Bronze Body, Bronze Trim, Graphite Packing Softgoods, 2 in Diameter Hand Wheel, Domestic

Actuator Type      :      Handwheel
Domestic/Import      :      Domestic
End Style      :      FNPT
Hand Wheel Diameter      :      2 in
Inlet to Outlet Length      :      2 in
Item Type      :      Gate Valve-Threaded
Material      :      Brass/Bronze
Media      :      Non-Potable Water
Nominal/Diameter Size      :      1/2 in
Pressure Class      :      150 lb
Pressure Rating      :      300 psi WOG
Series      :      1150
Softgoods Material      :      Graphite Packing
Temperature Rating      :      406 deg F
Trim Material      :      Bronze
Type      :      Stem Rising
150 SWP to 300 WOG non-shock
