Apollo™ 7060127 VAP7060127

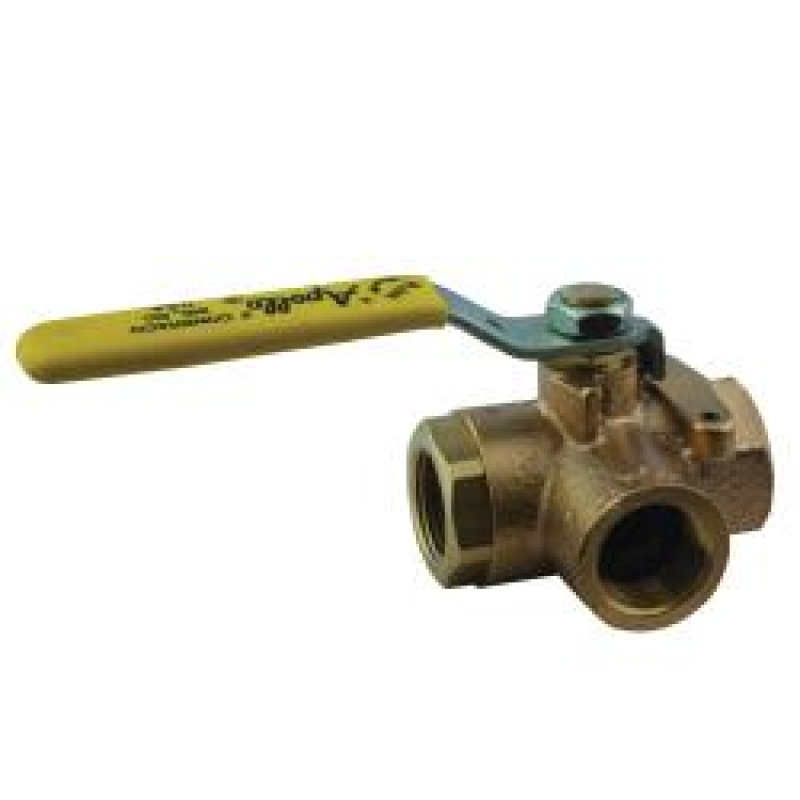

Apollo™ 7060127 70-600 3-Way Diversion Ball Valve, 1/4 in Nominal, FNPT End Style, Bronze Body, Standard Port, RPTFE/MPTFE Softgoods, Domestic

  • Brand Name: Apollo™
  • Manufacturers: Apollo Conbraco
  • MKSPN: VAP7060127
  • MPN: 7060127
  • UPC: 670750399985
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

The Apollo™ 70-600 series standard port 3-way diversion valve is ideal for making tank selection and fluid transfers simpler. Manufactured with proven ASTM Materials in the US.

Apollo™ Diversion Ball Valve, 3-Way, Series: 70-600, 1/4 in Nominal, FNPT, 400 psig CWP, 500 deg F, Standard Port, Latch-Lock Lever Actuator, Chrome Plated Brass Ball, 2-1/4 in Inlet to Outlet Length, 1.8 in Top to Inlet Center, Bronze Body, Brass Stem and RPTFE Seat Trim, RPTFE/MPTFE, Domestic

End Style      :      FNPT
Inlet to Outlet Length      :      2-1/4 in
Item Type      :      Ball Valve-Threaded 3-Way Diversion
Material      :      Brass/Bronze
Media      :      Water
Nominal/Diameter Size      :      1/4 in
Port Type      :      Standard
Pressure Rating      :      400 psig CWP
Series      :      70-600
Softgoods Material      :      RPTFE/MPTFE
Temperature Rating      :      500 deg f
Top to Inlet Center      :      1.8 in
Trim Material      :      Brass Stem and RPTFE Seat
Type      :      3-Way
  • 27 - Stainless steel latch-lock lever and nut
  • Blow-out proof stem
  • Drilled and tapped mounting pad
  • RPTFE seal and MPTFE stem packing
