Approved Vendor G3545R1/161508

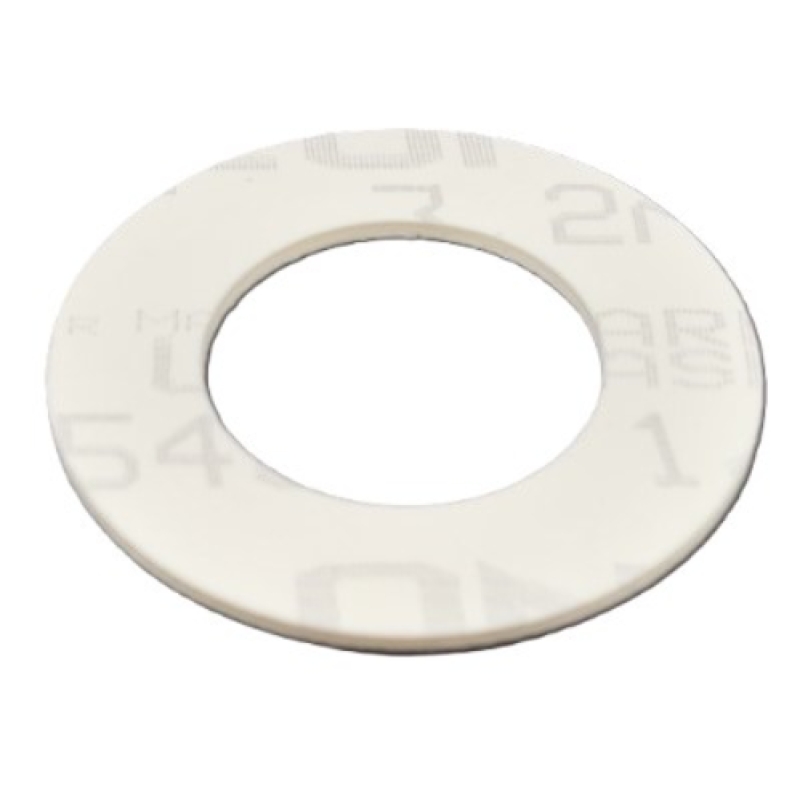

8 inch, 1/16 Inch Thickness, 150 LB, Ring, 3545 Garlock Series, Flange Gasket

  • Brand: Approved Vendor
  • Manufacturer:Approved Vendor
  • MKSPN: G3545R1/161508
  • Min. Order Qty: 1
  • Qty. Interval: 1

8 inch Ring Gasket, 3545 Series Garlock, 1/16 inch Thickness, Temperature range (F): 500 to -450, Pressure Class 150, Color: White, For Use With: Strong Caustics, Strong Acids, Hydrocarbons, Chlorine, Cryogenics, Glass Lined Equipment and Low Bolt load Equipment, Gasket Compound Material: Microcellular PTFE with RIgid PTFE Core.

Color      :      White
Compliances      :      ABS Certified, FDA Compliant, REACH Compliant, RoHS Compliant, USP VI 87 Compliant, USP VI 88 Compliant, ADI/TSE Free
Inside Diameter      :      8.625 in
Item Type      :      Gasket-Ring
Material      :      Gylon
Nominal/Diameter Size      :      8 in
Outside Diameter      :      11.000 in
Pressure Class      :      150 lb
Pressure Rating      :      1200 psi
Series      :      3545
Temperature Range      :      500 to -450 deg f
Thickness      :      1/16 in
