Gruvlok Flanged Adapter
Gruvlok® FIG 7788 Adapter, Flanged x Grooved End Style, 125/150 lb, Ductile Iron, Domestic
| Compare (0) selected | Item | Properties | Quantity | Price / UOM | Availability |
|---|---|---|---|---|---|
|

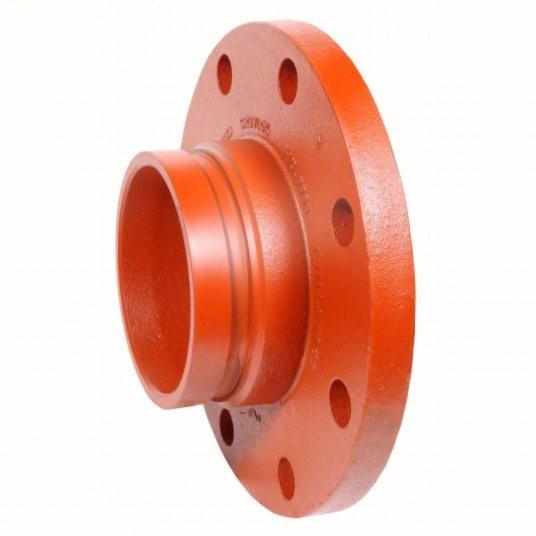

GV77882 |
ItemType: Flange Adapter Nominal/DiameterSize: 2 in Material: Ductile Iron EndStyle: Flanged x Grooved Type: Grooved Domestic/Import: Domestic TemperatureRating: -40 to 230 deg F Finish: Rust-Inhibiting Orange Paint Gruvlok® 0390202000 Gruvlok® 0390202000 FIG 7788 Adapter, 2 in Nominal, Flanged x Grooved End Style, 300 psi Pressure, 125/150 lb, Ductile Iron, Domestic |
/
|
|
|
|
|
GV778821/2 |
ItemType: Flange Adapter Nominal/DiameterSize: 2-1/2 in Material: Ductile Iron EndStyle: Flanged x Grooved Type: Grooved Domestic/Import: Domestic TemperatureRating: -40 to 230 deg F Finish: Rust-Inhibiting Orange Paint Gruvlok® 0390202026 Gruvlok® 0390202026 FIG 7788 Adapter, 2-1/2 in Nominal, Flanged End Style, 300 psi Pressure, 125/150 lb, Ductile Iron, Domestic |
/
|
|
|
|
|
GV77883 |
ItemType: Flange Adapter Nominal/DiameterSize: 3 in Material: Ductile Iron EndStyle: Flanged x Grooved Type: Grooved Domestic/Import: Domestic TemperatureRating: -40 to 230 deg F Finish: Rust-Inhibiting Orange Paint Gruvlok® 0390202042 Gruvlok® 0390202042 FIG 7788 Adapter, 3 in Nominal, Flanged End Style, 300 psi Pressure, 125/150 lb, Ductile Iron, Domestic |
/
|
|
|
|
|
GV77884 |
ItemType: Flange Adapter Nominal/DiameterSize: 4 in Material: Ductile Iron EndStyle: Flanged x Grooved Type: Grooved Domestic/Import: Domestic TemperatureRating: -40 to 230 deg F Finish: Rust-Inhibiting Orange Paint Gruvlok® 0390202067 Gruvlok® 0390202067 FIG 7788 Adapter, 4 in Nominal, Flanged End Style, 300 psi Pressure, 125/150 lb, Ductile Iron, Domestic |
/
|
|
|
|
|
GV77885 |
ItemType: Flange Adapter Nominal/DiameterSize: 5 in Material: Ductile Iron EndStyle: Flanged x Grooved Type: Grooved Domestic/Import: Domestic TemperatureRating: -40 to 230 deg F Finish: Rust-Inhibiting Orange Paint Gruvlok® 0390202083 Gruvlok® 0390202083 FIG 7788 Adapter, 5 in Nominal, Flanged x Grooved End Style, 300 psi Pressure, 125/150 lb, Ductile Iron, Domestic |
/
|
|
|
|
|
GV77886 |
ItemType: Flange Adapter Nominal/DiameterSize: 6 in Material: Ductile Iron EndStyle: Flanged x Grooved Type: Grooved Domestic/Import: Domestic TemperatureRating: -40 to 230 deg F Finish: Rust-Inhibiting Orange Paint Gruvlok® 0390202109 Gruvlok® 0390202109 FIG 7788 Adapter, 6 in Nominal, Flanged End Style, 300 psi Pressure, 125/150 lb, Ductile Iron, Domestic |
/
|
|
|
|
|
GV77888 |
ItemType: Flange Adapter Nominal/DiameterSize: 8 in Material: Ductile Iron EndStyle: Flanged x Grooved Type: Grooved Domestic/Import: Domestic TemperatureRating: -40 to 230 deg F Finish: Rust-Inhibiting Orange Paint Gruvlok® 0390202125 Gruvlok® 0390202125 FIG 7788 Adapter, 8 in Nominal, Flanged x Grooved End Style, 300 psi Pressure, 125/150 lb, Ductile Iron, Domestic |
/
|
|
|
|
|
GV778810 |
ItemType: Adapter Nominal/DiameterSize: 10 in Material: Ductile Iron EndStyle: Flanged x Grooved Type: Grooved Domestic/Import: Domestic TemperatureRating: -40 to 230 deg F Finish: Rust-Inhibiting Orange Paint Gruvlok® Gruvlok® 0390202141 FIG 7788 Adapter, 10 in Nominal, Flanged x Grooved End Style, 125/150 lb, Ductile Iron, Domestic |
/
|
|
|
|
|
GV778812 |
ItemType: Flange Adapter Nominal/DiameterSize: 12 in Material: Ductile Iron EndStyle: Flanged x Grooved Type: Grooved Domestic/Import: Domestic TemperatureRating: -40 to 230 deg F Finish: Rust-Inhibiting Orange Paint Gruvlok® 0390202166 Gruvlok® 0390202166 FIG 7788 Adapter, 12 in Nominal, Flanged x Grooved End Style, 300 psi Pressure, 125/150 lb, Ductile Iron, Domestic |
/
|
|
The Gruvlok® FIG 7788 flange adapter allows for direct connection of class 125 or class 150 flanged components to a grooved piping system. The Gruvlok® flange adapter provides an alternative method of connecting to flanged components than the traditional FIG 7012 Gruvlok® flange. The Gruvlok® flange adapter provides a raised serrated face flange connection with a shorter overall length than Anvil®'s FIG 7084 Flange x Groove Nipple.
Gruvlok® Adapter, Series: FIG 7788, 2 in Nominal, Flanged x Grooved, 11/16 in Thickness, 125/150 lb, 300 psi, Ductile Iron, Rust Inhibiting Painted, Orange, 2-3/8 in OD, Domestic
| Domestic/Import | : | Domestic |
| End Style | : | Flanged x Grooved |
| Finish | : | Rust-Inhibiting Orange Paint |
| Item Type | : | Flange Adapter |
| Material | : | Ductile Iron |
| Nominal/Diameter Size | : | 2 in |
| Pressure Class | : | 125/150 lb |
| Temperature Rating | : | -40 to 230 deg F |
| Type | : | Grooved |
