The Spirax Sarco® FTI contains a float valve mechanism which modulates to discharge condensate continuously at steam temperature while non-condensable gases are released by a separate internal balanced pressure thermostatic air vent. The in-line piping connections simplify installation.

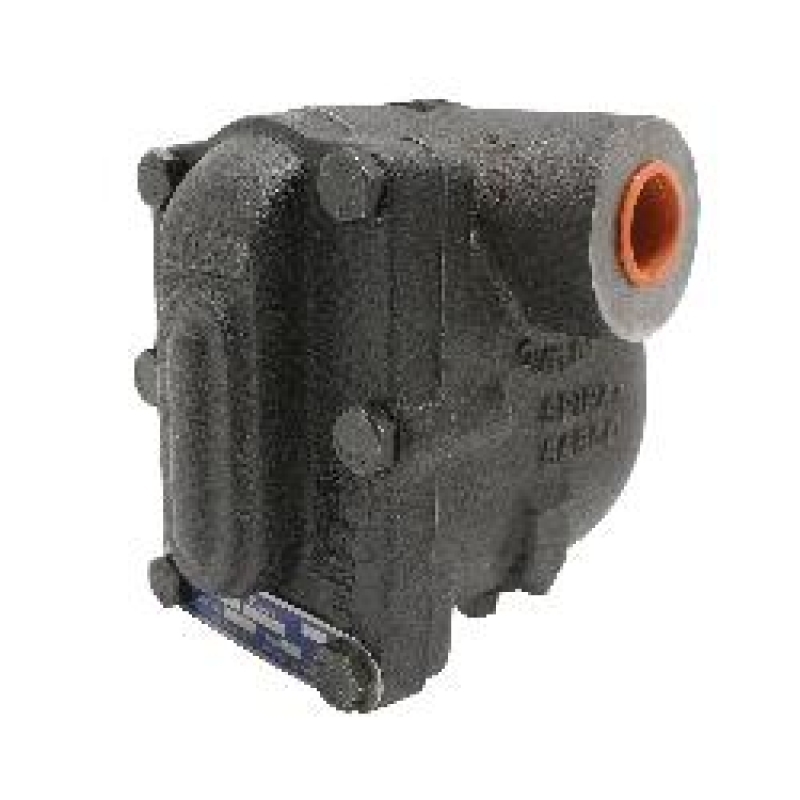

Spirax Sarco Float and Thermostatic Steam Trap, 1 in Nominal, FNPT, 6-1/2 in Length, 125 psi, Cast Iron, 450 deg F, 5.8 in H x 4.8 in W
| End Style | : | FNPT |
| Item Type | : | Float and Thermostatic Steam Trap |
| Length | : | 6-1/2 in |
| Material | : | Cast Iron |
| Nominal/Diameter Size | : | 1 in |
| Pressure Rating | : | 125 |
| Series | : | FTI125 |
| Temperature Rating | : | 450 deg F |
200 psig at 450 deg F Maximum allowable pressure
