Apollo™ 88A14A24 VAP88A14A24

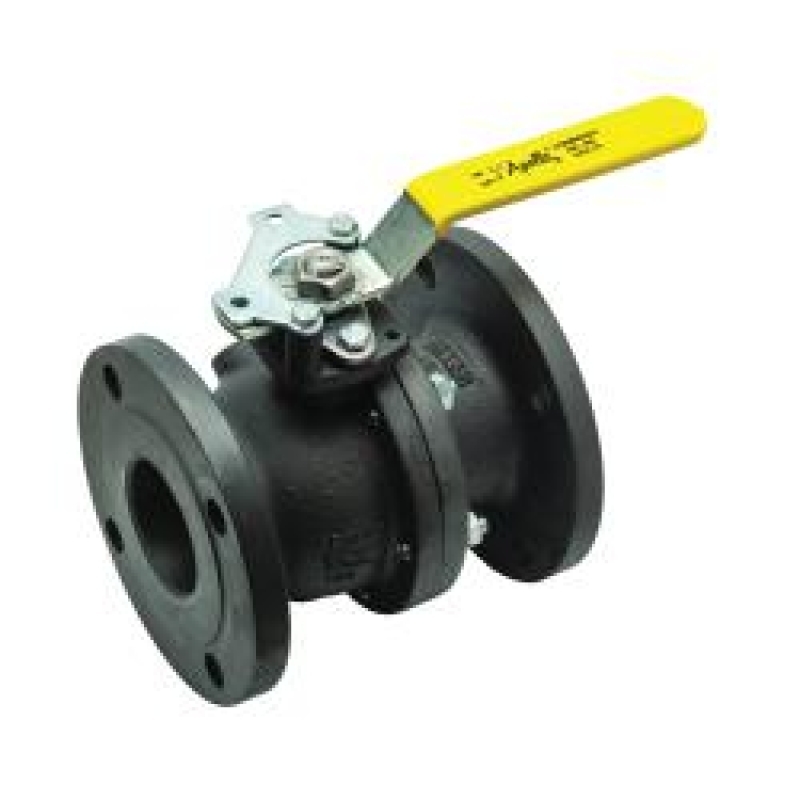

Apollo™ 88A14A24 88A-140 88A-140 Ball Valve, 4 in Nominal, Raised Face Flanged End Style, 150 lb, Standard Port
- Brand Name: Apollo™
- Manufacturers: Apollo Conbraco
- MKSPN: VAP88A14A24
- MPN: 88A14A24
- UPC: 670750912740
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
-
Login or Register for pricing
Apollo™ Ball Valve, Series: 88A-140, 4 in Nominal, Raised Face Flanged End Style, 150 lb Pressure Class, Standard Port, Lever Operated Actuator, 316 Stainless Steel Ball, 9 in Inlet to Outlet Length, 8.8 in Top to Inlet Center, Wrought Carbon Steel Body, 316 Stainless Steel/RPTFE Trim, Graphite/PTFE Softgoods, Domestic
| Actuator Type | : | Lever Handle |
| Ball Material | : | 316 Stainless Steel |
| Domestic/Import | : | Domestic |
| End Style | : | Raised Face Flanged |
| Inlet to Outlet Length | : | 9 in |
| Item Type | : | Flanged Ball Valve |
| Material | : | Wrought Carbon Steel |
| Media | : | Steam |
| Nominal/Diameter Size | : | 4 in |
| Port Type | : | Full |
| Pressure Class | : | 150 lb |
| Series | : | 88A-140 |
| Softgoods Material | : | Graphite/PTFE |
| Trim Material | : | 316 Stainless Steel/RPTFE |
| Type | : | 2-Piece |
2-position locking device
