Approved Vendor 88A-24C-01 VAP88A24C

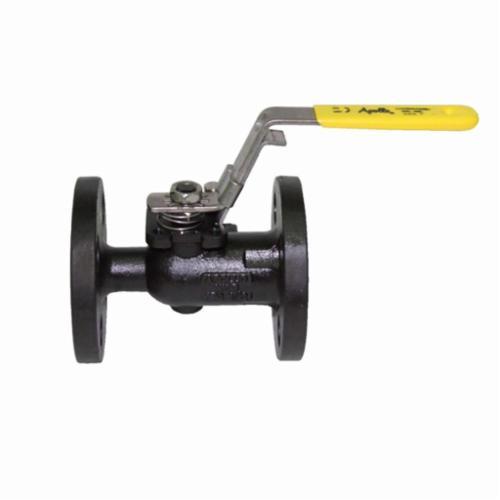

Apollo™ 88A-24C-01 88A-240 Ball Valve, 6 in Nominal, Raised Face Flange End Style, 150 lb, Wrought Carbon Steel Body, Full Port, RPTFE/PTFE Softgoods, Domestic
- Brand Name: Approved Vendor
- Manufacturers: Approved Vendor
- MKSPN: VAP88A24C
- MPN: 88A-24C-01
- UPC: 670750928208
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
-
Login or Register for pricing
Apollo™ Ball Valve, Series: 88A-240, 6 in Nominal, Raised Face Flange, 150 lb, Full Port, Lever Operated Actuator, 316 Stainless Steel Ball, 15-1/2 in Inlet to Outlet Length, 13.73 in Top to Inlet Center, Wrought Carbon Steel Body, 316 Stainless Steel Stem and RPTFE Seat Trim, RPTFE/PTFE, Domestic
| Actuator Type | : | Lever Handle |
| Ball Material | : | 316 Stainless Steel |
| Domestic/Import | : | Domestic |
| End Style | : | Raised Face Flange |
| Inlet to Outlet Length | : | 15-1/2 in |
| Item Type | : | Flanged Ball Valve |
| Material | : | Wrought Carbon Steel |
| Media | : | Steam |
| Nominal/Diameter Size | : | 6 in |
| Port Type | : | Full |
| Pressure Class | : | 150 lb |
| Pressure Rating | : | 150 psi SWP Pressure |
| Series | : | 88A-240 |
| Softgoods Material | : | RPTFE/PTFE |
| Trim Material | : | 316 Stainless Steel Stem and RPTFE Seat |
| Type | : | 2-Piece |
01: Standard Configuration 2-position locking device Chevron style adjustable stem seal ISO 5211 mounting pad bolt pattern Slot vented ball for thermal expansion Rated up to 150 psig saturated steam Anti-static grounded ball and stem Blow-out proof stem design Cast boss for bleed/drain port Vacuum service to 29 in Hg NACE MR0175 (2000) compliance on all 87A/87B/88A/88B/88L valves with stainless steel ball and stem NACE MR0103 (2003) compliance on all 87A/87B/88A/88B/88L valves with stainless steel ball and stem RPTFE seal and PTFE stem seal
