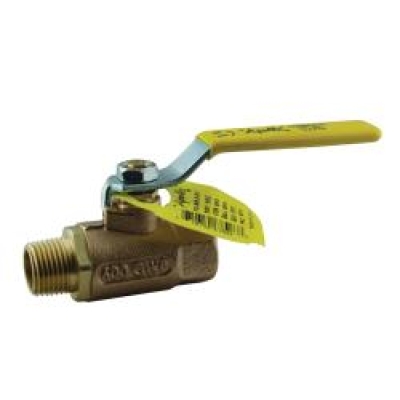

Apollo™ 70803B1 VAP7080701
Apollo™ 7080701 70-800 2-Piece Ball Valve, 1-1/2 in Nominal, MNPT x FNPT End Style, Bronze Body, Standard Port, RPTFE/MPTFE Softgoods, Domestic
- Brand: Apollo™
- Manufacturer:Apollo Conbraco
- MKSPN: VAP7080701
- MPN: 70803B1
- Min. Order Qty: 1
- Qty. Interval: 1
-
Login or Register for pricing
Eliminates need for extra nipple when connecting to female connection to save time and labor. Ruggedly built for lasting performance with chromium-plated ball and blow-out proof stem.
Apollo™ Ball Valve, 2-Piece, Series: 70-800, 1-1/2 in Nominal, MNPT x FNPT End Style, 600 psig CWP Pressure, 425 deg F, Standard Port, T-Handle Actuator, Bronze Ball, 5.18 in Inlet to Outlet Length, 3.06 in Top to Inlet Center, Bronze Body, Brass Stem and PTFE Seat Trim, RPTFE/MPTFE Softgoods, Domestic/Import: Domestic
| Actuator Type | : | T-Handle |
| Ball Material | : | Bronze |
| Domestic/Import | : | Domestic |
| End Style | : | MNPT x FNPT |
| Inlet to Outlet Length | : | 5.18 in |
| Item Type | : | Ball Valve-Threaded 2 Piece |
| Material | : | Brass/Bronze |
| Media | : | Gas/Water |
| Nominal/Diameter Size | : | 1-1/2 in |
| Port Type | : | Standard |
| Pressure Rating | : | 600 psig CWP |
| Series | : | 70-800 |
| Softgoods Material | : | RPTFE/MPTFE |
| Temperature Rating | : | 425 deg f |
| Top to Inlet Center | : | 3.06 in |
| Trim Material | : | Brass Stem and PTFE Seat |
| Type | : | 2-Piece |
01 - Standard configuration
