Apollo™ 76AR524 VAP76AR524

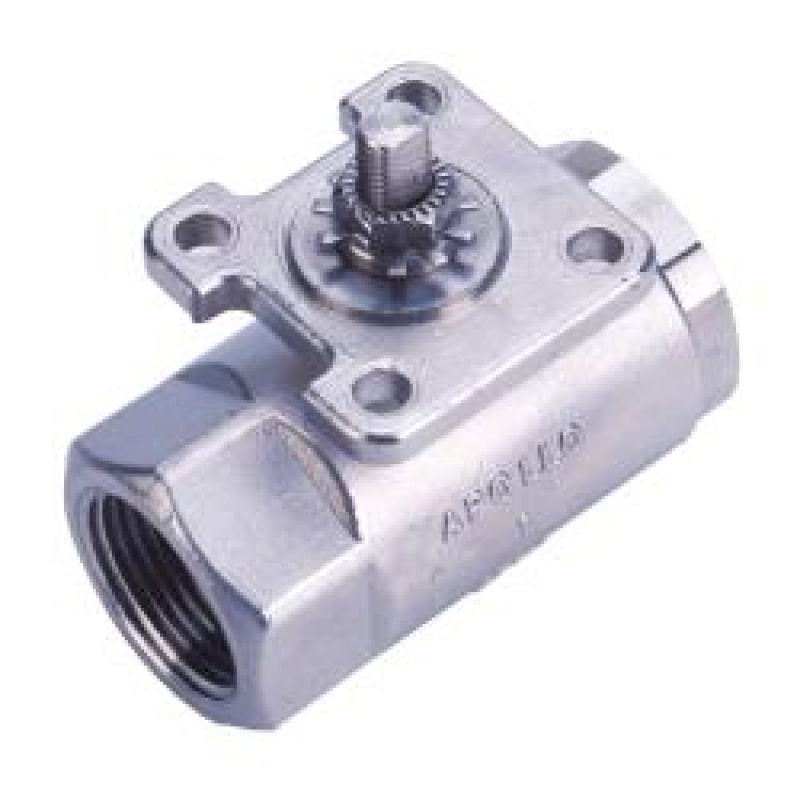

Apollo™ 76AR524 76-AR 76-AR 2-Piece Ball Valve, 1 in Nominal, FNPT End Style, Stainless Steel Body, Standard Port
- Brand Name: Apollo™
- Manufacturers: Apollo Conbraco
- MKSPN: VAP76AR524
- MPN: 76AR524
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
-
Login or Register for pricing
Apollo™ Ball Valve, 2-Piece, Series: 76-AR, 1 in Nominal, FNPT End Style, 2000 psig CWP Pressure, Standard Port, Stainless Steel Ball, 3.34 in Inlet to Outlet Length, 2.28 in Top to Inlet Center, Stainless Steel Body, 316 Stainless Steel/PTFE Trim, Graphite/MPTFE/PTFE Softgoods, Domestic
| Actuator Type | : | Actuator Ready |
| Ball Material | : | 316 Stainless Steel |
| Domestic/Import | : | Domestic |
| End Style | : | FNPT |
| Inlet to Outlet Length | : | 3.34 in |
| Item Type | : | Ball Valve-Threaded 2 Piece |
| Material | : | 316/316L Stainless Steel |
| Media | : | Water |
| Nominal/Diameter Size | : | 1 in |
| Port Type | : | Standard |
| Pressure Rating | : | 2000 psig CWP |
| Series | : | 76-AR |
| Softgoods Material | : | MPTFE/PTFE |
| Top to Inlet Center | : | 2.28 in |
| Trim Material | : | 316 Stainless Steel/MPTFE |
| Type | : | 2-Piece |
Multi-piece packing set
