RWV® 9574P 2-1/2 VRW9574P21/2

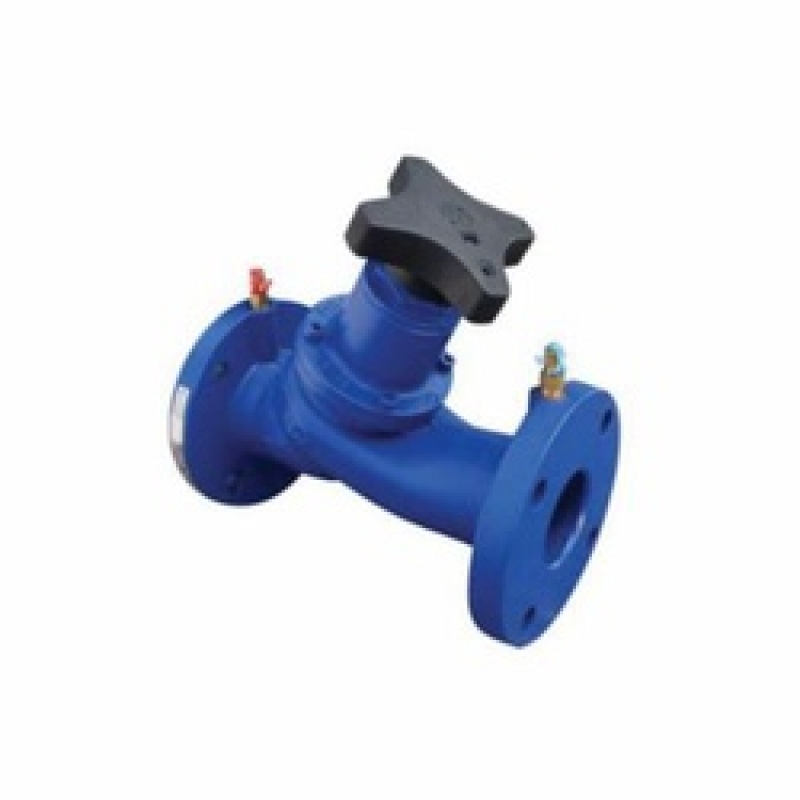

RWV® 9574P 2-1/2 Hydronic Balancing Valve, 2-1/2 in Nominal, Flat Face Flanged End Style, 47.9 to 110.2 gpm Flow Rate, Cast Iron Body

  • Brand Name: RWV®
  • Manufacturers: Red-White Valve
  • MKSPN: VRW9574P21/2
  • MPN: 9574P 2-1/2
  • UPC: 670779954257
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

Variable orifice cast iron double regulating valve Flanges drilled according to ASME B16.1 class 125 Lengths according to EN558-1 series 1 (ex DIN3202 F1) Alkyd/acrylic single layer water paint coating (2000-4000 micron) Tolerance on nominal Cv for completely open valve +/-5% With plugged threaded drains (1/4 in ISO 7/1Rp) for test points Provided with test points (given unmounted).

RWV® Hydronic Balancing Valve, Series: 9574P, 2-1/2 in Nominal, Flat Face Flanged End Style, 200 lb WOG Pressure Class, 15 to 250 deg F, 47.9 to 110.2 gpm Flow Rate, Media: Water, Handwheel Actuator, Cast Iron Body, DZR Brass Trim, EPDM Disc Gasket/Stem O-Ring Softgoods, 11.4 in L Dimensions

Actuator Type      :      Handwheel
Domestic/Import      :      Import
End Style      :      Flat Face Flanged
Item Type      :      Hydronic Balancing Valve
Material      :      Cast Iron
Media      :      Water
Nominal/Diameter Size      :      2-1/2 in
Pressure Class      :      200 lb WOG
Pressure Rating      :      200 lb WOG
Series      :      9574P
Softgoods Material      :      EPDM Disc Gasket/Stem O-Ring
Temperature Rating      :      15 to 250 deg f
Trim Material      :      DZR Brass
Type      :      Flat Face
