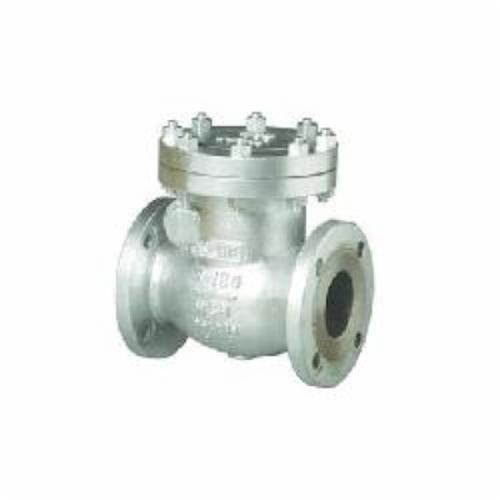

CRANE® Swing Check Valve, Series: 147, Flanged End Style, 285 psi Pressure, 150 lb Pressure Class, -20 to 100 deg F, No Low Lead Compliance, Cast Steel Body, 410 Stainless Steel Trim
CRANE® Swing Check Valve, Series: 147, Flanged End Style, 285 psi Pressure, 150 lb Pressure Class, -20 to 100 deg F, No Low Lead Compliance, Cast Steel Body, 410 Stainless Steel Trim
| Compare (0) selected | Item | Properties | Quantity | Price / UOM | Availability |
|---|---|---|---|---|---|
|
VC147XU21/2 |
ItemType: Flanged Swing Check Valve Nominal/DiameterSize: 2-1/2 in Material: Cast Steel EndStyle: Flanged Type: Standard TrimMaterial: 416 Stainless Steel PressureRating: 285 psi PressureClass: 150 lb InlettoOutletLength: 8.5 in Domestic/Import: Import Series: 147 TemperatureRating: -20 to 100 deg F CRANE® 147XU-2-1/2 CRANE® 147XU-2-1/2 147 Swing Check Valve, 2-1/2 in Nominal, Flanged End Style, 150 lb, Cast Steel Body |
/
|
|
|
|
|
VC147XU3 |
ItemType: Flanged Swing Check Valve Nominal/DiameterSize: 3 in Material: Cast Steel EndStyle: Flanged Type: Standard TrimMaterial: 416 Stainless Steel PressureRating: 285 psi PressureClass: 150 lb InlettoOutletLength: 9.5 in Domestic/Import: Import Series: 147 TemperatureRating: -20 to 100 deg F CRANE® 147XU-3 CRANE® 147XU-3 147 Swing Check Valve, 3 in Nominal, Flanged End Style, 150 lb, Cast Steel Body |
/
|
|
|
|
|
VC147XU4 |
ItemType: Flanged Swing Check Valve Nominal/DiameterSize: 4 in Material: Cast Steel EndStyle: Flanged Type: Standard TrimMaterial: 416 Stainless Steel PressureRating: 285 psi PressureClass: 150 lb InlettoOutletLength: 11.5 in Domestic/Import: Import Series: 147 TemperatureRating: -20 to 100 deg F CRANE® 147XU-4 CRANE® 147XU-4 147 Swing Check Valve, 4 in Nominal, Flanged End Style, 150 lb, Cast Steel Body |
/
|
|
|
|
|
VC147XU6 |
ItemType: Flanged Swing Check Valve Nominal/DiameterSize: 6 in Material: Cast Steel EndStyle: Flanged Type: Standard TrimMaterial: 416 Stainless Steel PressureRating: 285 psi PressureClass: 150 lb InlettoOutletLength: 14 in Domestic/Import: Import Series: 147 TemperatureRating: -20 to 100 deg F CRANE® 147XU-6 CRANE® 147XU-6 147 Swing Check Valve, 6 in Nominal, Flanged End Style, 150 lb, Cast Steel Body |
/
|
|
CRANE® swing check valves prevent reversal of flow through pipe lines. Most CRANE® swing check valves can be installed in horizontal or vertical, upward flow, piping. They offer low resistance to flow and are particularly suited to low velocity service.
CRANE® Swing Check Valve, Series: 147, 2-1/2 in Nominal, Flanged End Style, 285 psi Pressure, 150 lb Pressure Class, -20 to 100 deg F, No Low Lead Compliance, 8-1/2 in Inlet to Outlet Length, 7 in Top to Inlet Center, Cast Steel Body, 410 Stainless Steel Trim
| Domestic/Import | : | Import |
| End Style | : | Flanged |
| Inlet to Outlet Length | : | 8.5 in |
| Item Type | : | Flanged Swing Check Valve |
| Material | : | Cast Steel |
| Nominal/Diameter Size | : | 2-1/2 in |
| Pressure Class | : | 150 lb |
| Pressure Rating | : | 285 psi |
| Series | : | 147 |
| Temperature Rating | : | -20 to 100 deg F |
| Trim Material | : | 416 Stainless Steel |
| Type | : | Standard |
