Milwaukee Valve HP1LCS4212 060 VMHP1LCS4212060

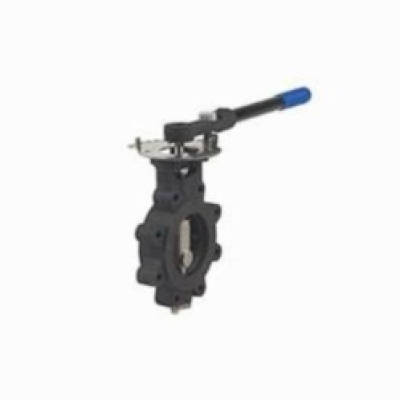

Milwaukee Valve HP1LCS4212 060 HP Series High Performance Lug Style Butterfly Valve, 6 in Nominal, Flanged End Style, 150 lb, Carbon Steel Body, PTFE Softgoods, Import

  • Brand: Milwaukee Valve
  • Manufacturer:Milwaukee Valve
  • MKSPN: VMHP1LCS4212060
  • MPN: HP1LCS4212 060
  • UPC: 697988524507
  • Min. Order Qty: 1
  • Qty. Interval: 1

Milwaukee Valve Butterfly Valve, High Performance Lug Style, Series: HP Series, 6 in Nominal, Flanged End Style, 150 lb Pressure Class, Lever-Lock Handle Actuator, Carbon Steel Body, 316 Stainless Steel Disc, 17-4PH Stainless Steel (Stem)/18-8 Stainless Steel (Taper Pin) Stem & Pin, PTFE Softgoods, Import

Actuator Type      :      10-Position Handle
Disc Material      :      316 Stainless Steel
Domestic/Import      :      Import
End Style      :      Flanged
Item Type      :      Butterfly Valve-Lug Style HP
Material      :      Carbon Steel
Media      :      Non-Potable Water
Nominal/Diameter Size      :      6 in
Pressure Class      :      150 lb
Pressure Rating      :      200 psi
Series      :      HP Series
Softgoods Material      :      PTFE
Stem & Pin Material      :      17-4PH Stainless Steel (Stem)/18-8 Stainless Steel (Taper Pin)
Trim Material      :      PTFE
Type      :      High Performance Lug Style
  • Double offset geometry to provide superior sealing with minimal seat contact and wear
  • Machined, tapered seat provides multiple sealing edges
  • One - piece shaft and disc designed for maximum strength and Cv
  • Internally cast disc position stop to prevent disc over travel while maintaining optimum disc/seat contact
  • Stem is centered in the adjustable stem packing by oversized bearings eliminating stem leakage and fugitive emissions
  • Disc spacers to center disc in seat to eliminate seat distortion
  • Blow-out proof stem prevents injury and product loss
  • Combination mechanical and pressure energized seat design for repeatable and reliable sealing performance and extended cycle life
  • Sealing retaining ring designed for double dead end service (lug style) and allows easy removal for seat replacement
  • Stem/disc connection ensures minimal lost motion and high strength
  • Stainless backed RTFE bearing
  • Wrought carbon steel body
  • Valve is rated at 150 psi steam for on and off application and 50 psi modulating service
  • Limit range 30 to 70 deg F, no dwell in near closed position
  • 285 psi CWP pressure
  • PTFE stem packing
