Milwaukee Valve ML333E D W VMML333E10

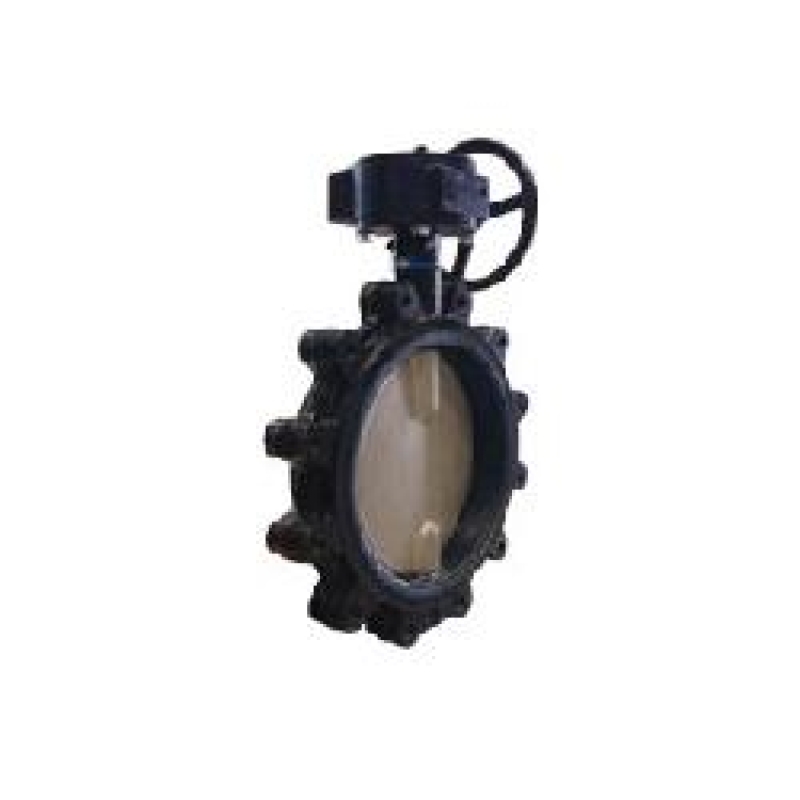

Milwaukee Valve Ultra Pure™ ML333E D W ML Series Lug Style Butterfly Valve, 10 in Nominal, Ductile Iron Body, EPDM Softgoods, Domestic

  • Brand: Milwaukee Valve
  • Manufacturer:Milwaukee Valve
  • MKSPN: VMML333E10
  • MPN: ML333E D W
  • UPC: 697988629080
  • Min. Order Qty: 1
  • Qty. Interval: 1

Milwaukee Valve Ultra Pure™ Butterfly Valve, Lug Style, Series: ML Series, 10 in Nominal, Gear Actuator, 10.56 in Top to Inlet Center, Ductile Iron Body, Aluminum Bronze Disc, 416 Stainless Steel (Stem)/Stainless Steel (Roll Pin) Stem & Pin Material, EPDM, 21.67 in H, Domestic

Actuator Type      :      Gear
Disc Material      :      Aluminum Bronze
Domestic/Import      :      Domestic
End Style      :      Flanged
Item Type      :      Butterfly Valve-Lug Style
Material      :      Ductile Iron
Media      :      Potable Water
Nominal/Diameter Size      :      10 in
Pressure Rating      :      200 psi
Series      :      ML Series
Softgoods Material      :      EPDM
Stem & Pin Material      :      416 Stainless Steel (Stem)/Stainless Steel (Roll Pin)
Top to Inlet Center      :      10.56 in
Trim Material      :      EPDM
Type      :      Lug Style
  • Low lead valve for potable water
  • 200 psig non-shock
  • Bi-directional dead end service to 200 psig max
  • Bubble tight shut-off
  • Milwaukee M series butterfly valve 2 to 12 in is approved by U.S coast guard for use in category A service as described in title 46 code of federal regulations 56.20-15
  • Heavy duty Design
  • Phenolic cartridge design
  • Low torque liner
  • Low torque polymer bearing standard
  • Field repairable
  • Extended neck body
  • Low profile disc
  • Blow-out proof disc
  • Bi-directional shut-off
  • Vacuum rating to 29 in of mercury
  • Lead free refers to the wetted surface of the pipe, fittings and fixtures in potable water systems that have a weighted average lead content =0.25%, source: california Health and safety code (116875)
  • EPDM liner/stem seal
