Approved Vendor W154WNR3/4

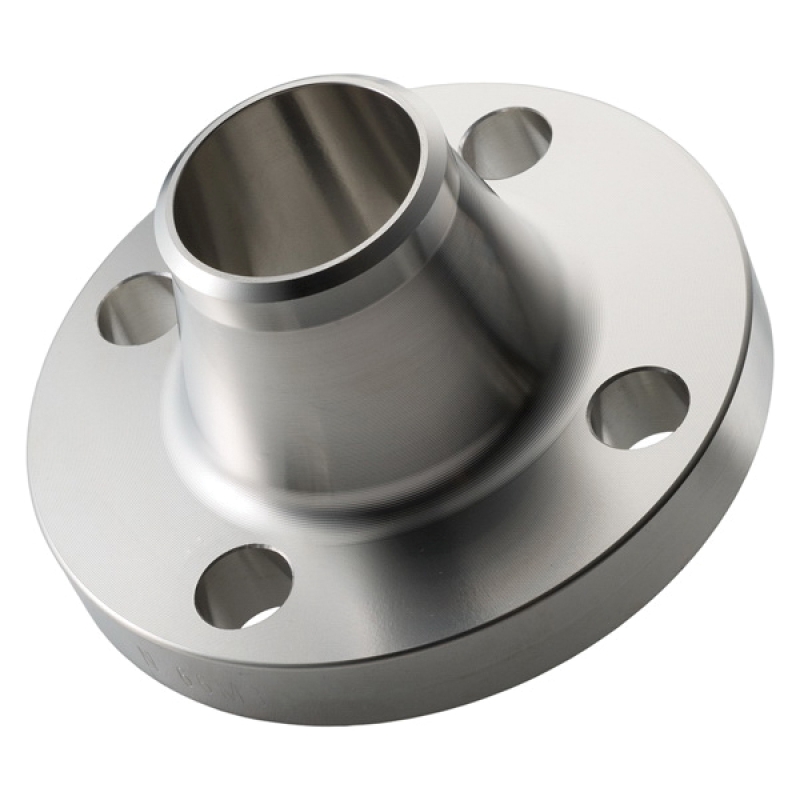

Raised Face Weld Neck Flange, 3/4 in, Butt Weld End, Method of Manufacture: Forged, SCH 40, Pressure Class: 150 lb

  • Brand: Approved Vendor
  • Manufacturer:Approved Vendor
  • MKSPN: W154WNR3/4
  • Min. Order Qty: 1
  • Qty. Interval: 1

Raised Face Weld Neck Flange, 3/4 in Nominal/Diameter Size, Butt Weld End Style, Forged Method of Manufacture, 304/304L Stainless Steel, SCH 40, Pressure Class: 150 lb, 2.06 in Length Through Hub, 2-3/4 in Bolt Circle Diameter, 0.82 in Bore, 1/2 in Thickness, 3.88 in Outside Diameter, 4 Bolt Holes, 0.62 in Bolt Hole, 1-1/2 in Hub Diameter

Bolt Circle Diameter      :      2-3/4 in
Bolt Hole Size      :      0.62 in
Bore Size      :      0.82 in
End Style      :      Butt Weld
Hub Diameter      :      1-1/2 in
Length Through Hub      :      2.06 in
Material      :      304/304L Stainless Steel
Method of Manufacture      :      Forged
Nominal/Diameter Size      :      3/4 in
Number of Bolt Holes      :      4
Outside Diameter      :      3.88 in
Pressure Class      :      150 lb
Schedule Rating      :      SCH 40
Thickness      :      1/2 in
