The IB Series Inverted Bucket Traps are available in several sizes and capacity ranges. Inverted bucket traps can handle superheated steam when a check valve is used. The smaller traps are primarily used in drip and tracer applications. These traps are also used on unit heaters, laundry equipment, and other process equipment where slow start-up due to poor air handling capability can be tolerated. Larger sizes are used on process equipment; however, since bucket traps have limited air handling capability, Fandt traps are the preferred choice.

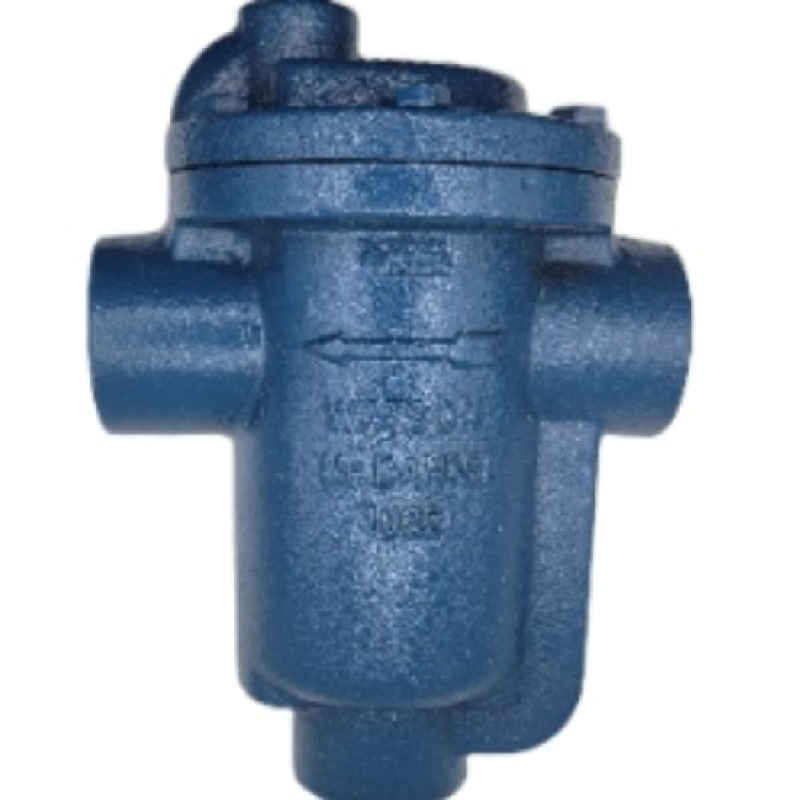

Watson McDaniel Inverted Bucket Steam Trap, Series: IB Series, 3/4 in Nominal, NPT, 5-7/8 in Length, 125 psig, Cast Iron, 450 deg F, 5 in W, Domestic
