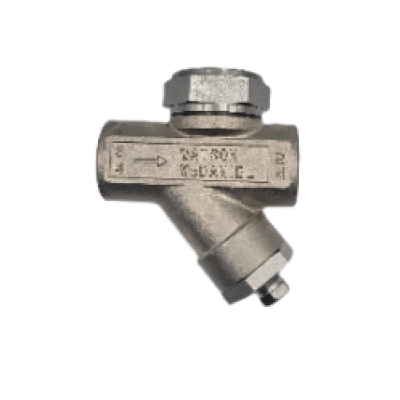

Watson McDaniel TD600S-13-N TWMTD600S13N

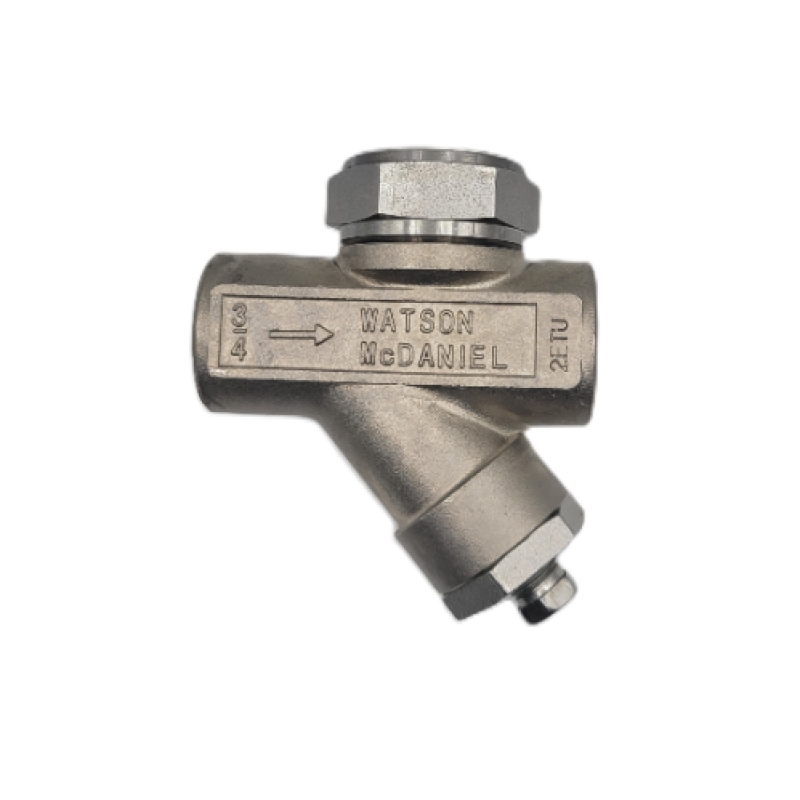

Watson McDaniel TD600S-13-N Thermodynamic Steam Trap, 3/4 in, NPT, 750 deg F, 600 psig, 420F Stainless Steel, Domestic

  • Brand: Watson McDaniel
  • Manufacturer:Watson McDaniel
  • MKSPN: TWMTD600S13N
  • MPN: TD600S-13-N
  • Min. Order Qty: 1
  • Qty. Interval: 1

The TD600S Thermodynamic Steam Trap is commonly used as a drip trap on steam mains and steam supply lines. Supplied with integral strainer and optional blowdown valve to protect the trap from contamination. These traps can be used on tracing applications; however, thermostatic traps are normally recommended for this service. Ideal for outdoor applications that are subject to freezing and for superheated steam conditions.

Watson McDaniel Thermodynamic Steam Trap, Series: TD600S, 3/4 in Nominal Size, NPT, 3.56 in Length, 600 psig, 420F Stainless Steel, 750 deg F, 4.15 in H, Domestic

Domestic/Import      :      Import
End Style      :      NPT
Item Type      :      Thermodynamic Steam Trap
Material      :      420F Stainless Steel
Nominal/Diameter Size      :      3/4 in
Pressure Rating      :      600 psig
Series      :      TD600S
Temperature Rating      :      750 deg F
  • 3140 lb/hr maximum capacity
  • Integral strainer with optional blowdown valve to protect trap from contamination
  • Hardened stainless steel seat and disc for extended service life even at high pressure
  • Single trap will operate over the entire pressure range of 3.5 to 600 psig (recommended above 30 psig)
  • Suitable for superheated steam
  • Freeze-proof when trap is piped in a vertical orientation for complete drainage of condensate
  • Three hole balanced discharge extends life of the seat area
  • Trap will function in any orientation (horizontal preferred)
