Bonomi North America 8P0143-1/4 VB8P0143CS1/4

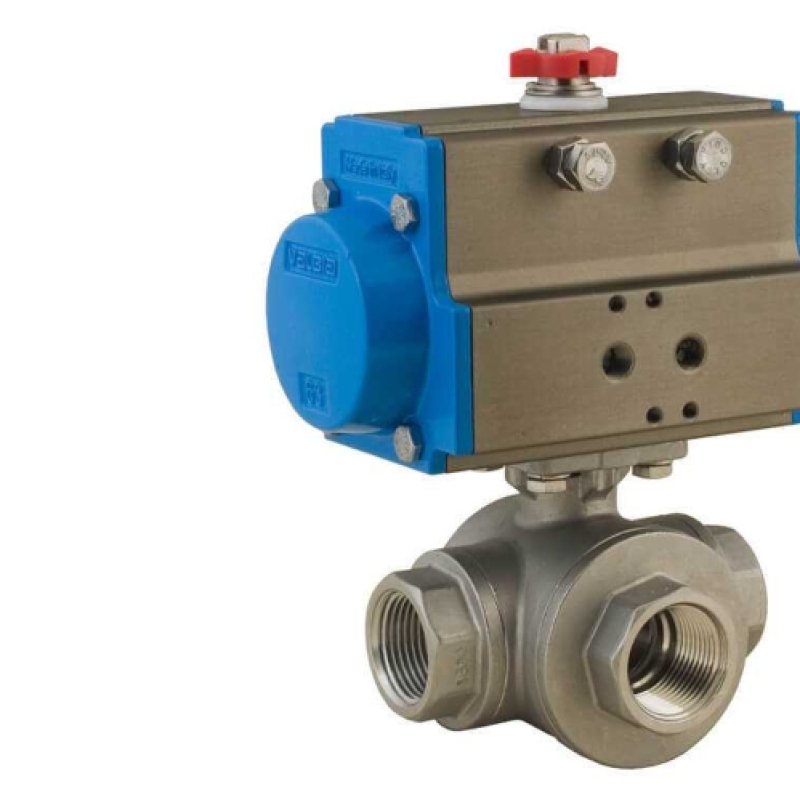

The 8P0143 series features the 956N in a 3-way ASTM A351-CF8M, full port ball valve, with four seats, and a T ported configuration. The 956N valve is also an ISO 5211 direct mount style, with four seats. The four seats allow one to use any port as an entry port and offers an optional straight through flow and shut-off capabilities. The Valbia pneumatic actuator comes with a hard-anodized aluminum body, and powder coated end caps. In addition, all Valbia pneumatic actuators are standardly furnished with elevated temperature seals to 302 deg F. The patented side loaded limit stops never enter the piston chamber eliminating extra possible leak paths.

Bonomi North America Ball Valve Package, 3-Way Direct Mount, Series: 956N, 1/4 in Nominal, FNPT, 1000 psi, -4 to 450 deg F, T-Full Port, Media: Water, 0.43 in Orifice, Double Acting Pneumatic Actuator, 316 Stainless Steel Ball, 2.83 in Inlet to Outlet Length, 5.45 in Top to Inlet Center, 316 Stainless Steel Body, 316 Stainless Steel/RPTFE/Vinyl Trim, FKM/PTFE/RPTFE, 5.55 in L x 2.8 in W x 6.23 in H, Import
