Flowserve® 1-T4E-11C11D033NW VFDG411C110T2M11A6

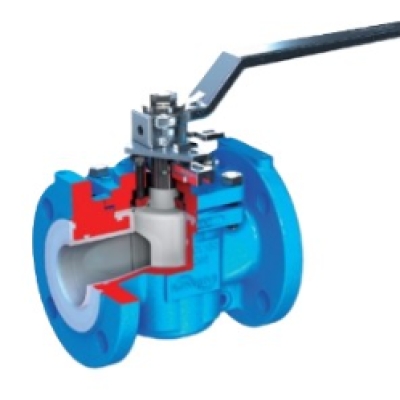

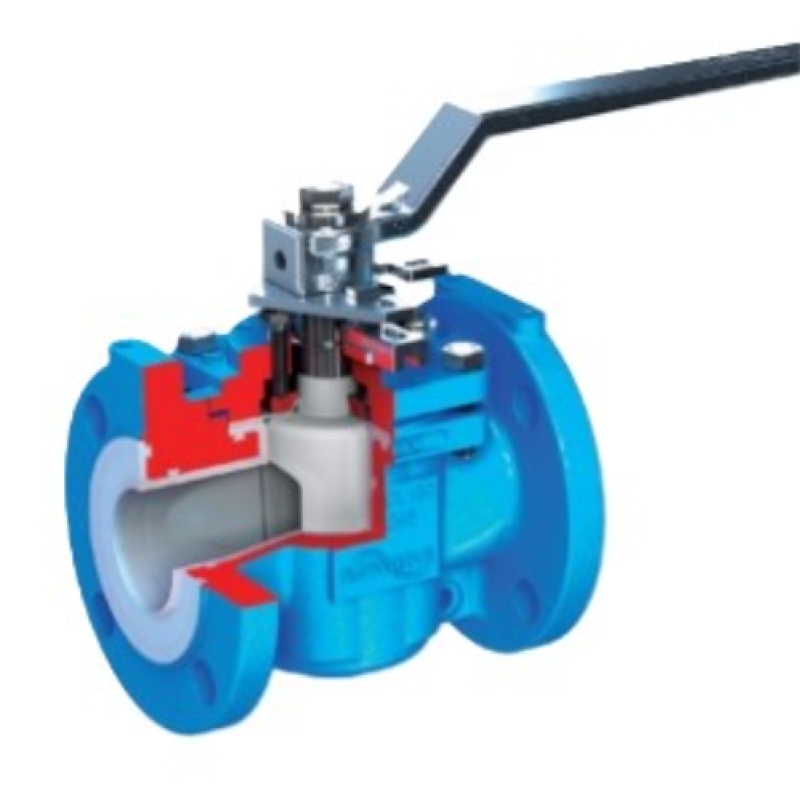

Flowserve® 1-T4E-11C11D033NW Standard Plug Valve, 1 in Nominal, Raised Face Flanged End Style, 150 lb, Ductile Iron/PFA Lined Body

  • Brand Name: Flowserve®
  • Manufacturers: Flowserve Corporation
  • MKSPN: VFDG411C110T2M11A6
  • MPN: 1-T4E-11C11D033NW
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

Flowserve® Plug Valve, Standard, 1 in Nominal, Raised Face Flanged End Style, 150 lb Pressure Class, 4.19 in Inlet to Outlet Length, 3.64 in Top to Inlet Center, Ductile Iron/PFA Lined Body

Domestic/Import      :      Domestic
End Style      :      Raised Face Flanged
Inlet to Outlet Length      :      4.19 in
Item Type      :      Gear Op
Material      :      Ductile Iron/PFA Lined
Nominal/Diameter Size      :      1 in
Pressure Class      :      150 lb
Top to Inlet Center      :      3.64 in
Type      :      Standard
  • Two-way plug style
  • Ductile iron, PFA lined plug alloy
  • DCI top cap: DIPA valve bodies
  • Standard wrench operator
  • Locking wrench standard thru 4 in
  • B7YC standard top cap fastener
  • B7YC standard adjuster fastener
  • Internal use
  • Durco T4E lined
