Rubber Connector and Expansion Joint Flanged End Pressure Class 150lb

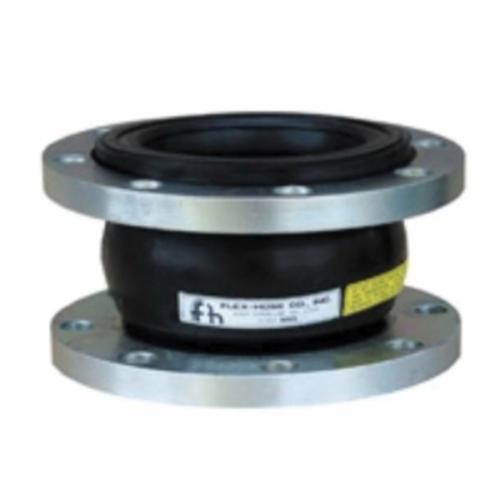

Flex-Hose Flexzorber® PRNNS48 Rubber Connector and Expansion Joint, NNS-Style, Single Sphere Flanged End, Pressure Class: 150 lb
| Compare (0) selected | Item | Properties | Quantity | Price / UOM | Availability |
|---|---|---|---|---|---|
|
PCPRNNS3 |
ItemType: NNS-Style Nominal/DiameterSize: 3 in PressureClass: 150 lb Material: Neoprene/Nylon/Steel EndStyle: Single Sphere Flanged Flex-Hose PRNNS48 Flex-Hose Flexzorber® PRNNS48 Rubber Connector and Expansion Joint, NNS-Style, 3 in, Single Sphere Flanged End, Pressure Class: 150 lb |
/
|
|
|
|
|
PCPRNNS6 |
ItemType: NNS-Style Nominal/DiameterSize: 6 in PressureClass: 150 lb Material: Neoprene/Nylon/Steel EndStyle: Single Sphere Flanged Flex-Hose PRNNS96 Flex-Hose Flexzorber® PRNNS96 Rubber Connector and Expansion Joint, NNS-Style, 6 in, Single Sphere Flanged End, Pressure Class: 150 lb |
/
|
|
|
|
|
PCPRNNS8 |
ItemType: NNS-Style Nominal/DiameterSize: 5 in PressureClass: 150 lb Material: Neoprene/Nylon/Steel EndStyle: Single Sphere Flanged Flex-Hose PRNNS8 Flex-Hose Flexzorber® PRNNS8 Rubber Connector and Expansion Joint, NNS-Style, 5 in, Single Sphere Flanged End, Pressure Class: 150 lb |
/
|
|
The Flexzorber® is an easy and economical way to control piping movement, vibration and noise transmission. The Flexzorber® neoprene construction combined with high strength nylon fabric reinforcement provides working pressures up to 225 psi and service temperatures up to 220 deg F. The spherical design is self-cleaning and allows pressure to exert itself uniformly in all directions. Rotatable flanges accommodate easy installation.
Flex-Hose Rubber Connector and Expansion Joint, 220 deg F, NNS-Style Item Type, Pressure Class: 150 lb, Single Sphere Flanged End Style, Neoprene/Nylon/Steel, 5 in Nominal/Diameter Size, 6 in Length, Vacuum Rate: 26 inHg, 8 Bolt Holes, 7/8 in Hole, 150 psi, 15 deg Angular
| Angular | : | 15 deg |
| End Style | : | Single Sphere Flanged |
| Hole Size | : | 7/8 in |
| Item Type | : | NNS-Style |
| Length | : | 6 in |
| Material | : | Neoprene/Nylon/Steel |
| Nominal/Diameter Size | : | 5 in |
| Number of Bolt Holes | : | 8 |
| Pressure Class | : | 150 lb |
| Pressure Rating | : | 150 psi |
| Temperature Rating | : | 220 deg F |
| Vacuum Rate | : | 26 inHg |
