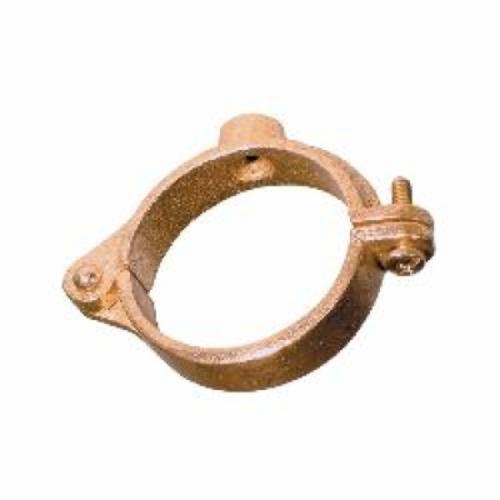

Extension Split Tube Clamp Copper Plated
Extension Split Tube Clamp, Malleable Iron, Copper Plated, Import
| Compare (0) selected | Item | Properties | Quantity | Price / UOM | Availability |
|---|---|---|---|---|---|
|
HCT138R11/4 |
ItemType: Split Ring Pipe Clamp Nominal/DiameterSize: 1-1/4 in Material: Malleable Iron Series: FIG CT-138R Finish: Copper Epoxy Coated (Copper-Gard) LoadCapacity: 180 lb Approved Vendor Extension Split Tube Clamp, 1-1/4 in Pipe/Tube, 180 lb Load, Malleable Iron, Copper Plated, Import |
/
|
|
|
|
|
HCT138R3/4 |
ItemType: Split Ring Pipe Clamp Nominal/DiameterSize: 3/4 in Material: Malleable Iron Series: FIG CT-138R Finish: Copper Epoxy Coated (Copper-Gard) LoadCapacity: 180 lb Approved Vendor Extension Split Tube Clamp, 3/4 in Pipe/Tube, 180 lb Load, Malleable Iron, Copper Plated, Import |
/
|
|
|
|
|
HCT138R21/2 |
ItemType: Split Ring Pipe Clamp Nominal/DiameterSize: 2-1/2 in Material: Malleable Iron Series: FIG CT-138R Finish: Copper Epoxy Coated (Copper-Gard) LoadCapacity: 300 lb Approved Vendor Bolt Thread Hinged Split Ring Hanger, 2-1/2 in Pipe/Tube, 1/2-13 Rod, 300 lb Load, Malleable Iron, Copper Epoxy Coated (Copper-Gard) |
/
|
|
|
|
|
HCT138R2 |
ItemType: Split Ring Pipe Clamp Nominal/DiameterSize: 2 in Material: Malleable Iron Series: FIG CT-138R Finish: Copper Epoxy Coated (Copper-Gard) LoadCapacity: 180 lb Approved Vendor Extension Split Tube Clamp, 2 in Pipe/Tube, 180 lb Load, Malleable Iron, Copper Plated, Import |
/
|
|
|
|
|
HCT138R11/2 |
ItemType: Split Ring Pipe Clamp Nominal/DiameterSize: 1-1/2 in Material: Malleable Iron Series: FIG CT-138R Finish: Copper Epoxy Coated (Copper-Gard) LoadCapacity: 180 lb Approved Vendor Extension Split Tube Clamp, 1-1/2 in Pipe/Tube, 180 lb Load, Malleable Iron, Copper Plated, Import |
/
|
|
|
|
HCT138R3 |

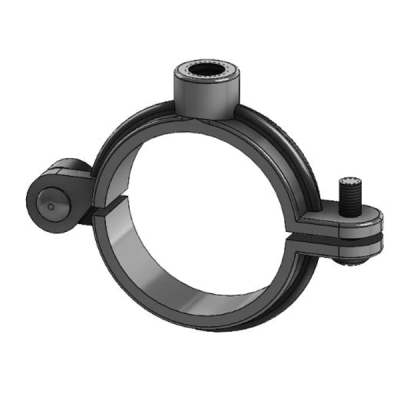

Nominal/DiameterSize: 3 in Material: Malleable Iron Series: 41HT Series Finish: Copper Epoxy-Coated TubeOD: 3-1/8 in ThreadSize: 1/4 in Dimensions: 4-1/16 in H x 5-1/2 in W LoadCapacity: 300 lb Approved Vendor Hinged Split Ring Hanger, 3 in, 3-1/8 in OD Tube, 300 lb Load, 1/4 in Thread, Malleable Iron, Copper Epoxy-Coated |
/
|
|
|
|
|
HCT138R1 |
ItemType: Split Ring Pipe Clamp Nominal/DiameterSize: 1 in Material: Malleable Iron Series: FIG CT-138R Finish: Copper Epoxy Coated (Copper-Gard) LoadCapacity: 180 lb Approved Vendor Extension Split Tube Clamp, 1 in Pipe/Tube, 180 lb Load, Malleable Iron, Copper Plated, Import |
/
|
|
|
|
|
HCT138R1/2 |
ItemType: Split Ring Pipe Clamp Nominal/DiameterSize: 1/2 in Material: Malleable Iron Series: FIG CT-138R Finish: Copper Epoxy Coated (Copper-Gard) LoadCapacity: 180 lb Approved Vendor Extension Split Tube Clamp, 1/2 in Pipe/Tube, 180 lb Load, Malleable Iron, Copper Plated, Import |
/
|
|
Extension Split Tube Clamp, 1/2 in Pipe/Tube, 180 lb, 3/4 in Thickness, Malleable Iron, Copper Plated, 2 in W, Import
| Domestic/Import | : | Import |
| Finish | : | Copper Epoxy Coated (Copper-Gard) |
| Item Type | : | Split Ring Pipe Clamp |
| Load Capacity | : | 180 lb |
| Material | : | Malleable Iron |
| Nominal/Diameter Size | : | 1/2 in |
| Pipe/Tube Size | : | 1/2 in |
| Rod Size | : | 3/8 in |
| Series | : | FIG CT-138R |
Hinged design provides for economical installation
