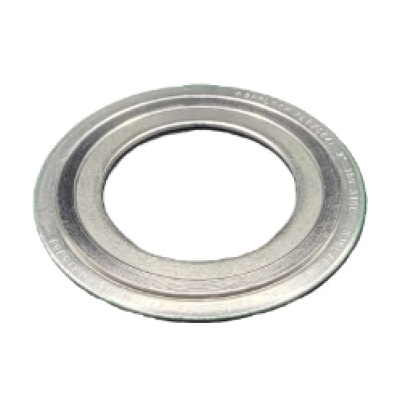

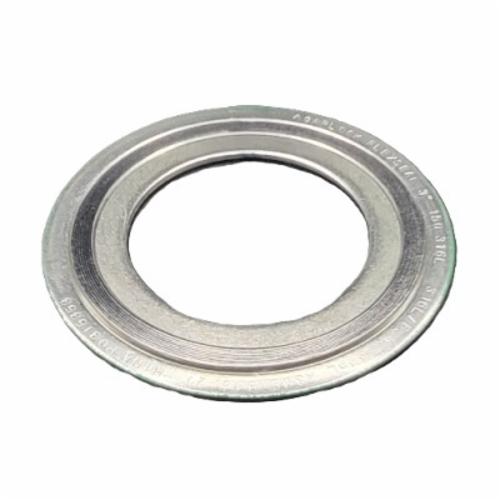

CGI Spiral Wound 304 SS Gasket 1/8in Thickness 150lb
CGI Spiral Wound Gasket, 304 Stainless Steel, 150 Lb, 1/8 inch Thickness Compressed
| Compare (0) selected | Item | Properties | Quantity | Price / UOM | Availability |
|---|---|---|---|---|---|
|
GSFCGI1/2 |
ItemType: Gasket-Spiral Wound Nominal/DiameterSize: 1/2 in Material: 316/316L Stainless Steel Thickness: 1/8 in PressureClass: 150 lb Color: Green with Gray Stripe Series: CGI Approved Vendor 1/2 inch CGI Spiral Wound Gasket, 304 Stainless Steel, 150 LB, 1/8 inch Thickness Compressed |
/
|
|
|
|
|
GSFCGI3/4 |
ItemType: Gasket-Spiral Wound Nominal/DiameterSize: 3/4 in Material: 316/316L Stainless Steel Thickness: 1/8 in PressureClass: 150 lb Color: Green with Gray Stripe Series: CGI Approved Vendor 3/4 inch CGI Spiral Wound Gasket, 304 Stainless Steel, 150 LB, 1/8 inch Thickness Compressed |
/
|
|
|
|
|
GSFCGI1 |
ItemType: Gasket-Spiral Wound Nominal/DiameterSize: 1 in Material: 316/316L Stainless Steel Thickness: 1/8 in PressureClass: 150 lb Color: Green with Gray Stripe Series: CGI Approved Vendor 1 inch CGI Spiral Wound Gasket, 304 Stainless Steel, 150 Lb, 1/8 inch Thickness Compressed |
/
|
|
|
|
|
GSFCGI11/2 |
ItemType: Gasket-Spiral Wound Nominal/DiameterSize: 1-1/2 in Material: 316/316L Stainless Steel Thickness: 1/8 in PressureClass: 150 lb Color: Green with Gray Stripe Series: CGI Approved Vendor 1-1/2 inch CGI Spiral Wound Gasket, 304 Stainless Steel, 150 LB, 1/8 inch Thickness Compressed |
/
|
|
|
|
|
GSFCGI2 |
ItemType: Gasket-Spiral Wound Nominal/DiameterSize: 2 in Material: 316/316L Stainless Steel Thickness: 1/8 in PressureClass: 150 lb Color: Green with Gray Stripe Series: CGI Approved Vendor 2 inch CGI Spiral Wound Gasket, 304 Stainless Steel, 150 Lb, 1/8 inch Thickness Compressed |
/
|
|
|
|
|
GSFCGI21/2 |
ItemType: Gasket-Spiral Wound Nominal/DiameterSize: 2-1/2 in Material: 316/316L Stainless Steel Thickness: 1/8 in PressureClass: 150 lb Color: Green with Gray Stripe Series: Spiral Wound Approved Vendor 2-1/2 CGI inch Spiral Wound Gasket, 304 Stainless Steel, 150 LB, 1/8 inch Thickness Compressed |
/
|
|
|
|
|
GSFCGI3 |
ItemType: Gasket-Spiral Wound Nominal/DiameterSize: 3 in Material: 316/316L Stainless Steel Thickness: 1/8 in PressureClass: 150 lb Color: Green with Gray Stripe Series: CGI Approved Vendor 3 inch CGI Spiral Wound Gasket, 304 Stainless Steel, 150 LB, 1/8 inch Thickness Compressed |
/
|
|
|
|
|
GSFCGI4 |
ItemType: Gasket-Spiral Wound Nominal/DiameterSize: 4 in Material: 316/316L Stainless Steel Thickness: 1/8 in PressureClass: 150 lb Color: Green with Gray Stripe Series: CGI Approved Vendor 4 inch CGI Spiral Wound Gasket, 304 Stainless Steel, 150 LB, 1/8 inch Thickness Compressed |
/
|
|
|
|
|
GSFCGI6 |
ItemType: Gasket-Spiral Wound Nominal/DiameterSize: 6 in Material: 316/316L Stainless Steel Thickness: 1/8 in PressureClass: 150 lb Color: Green with Gray Stripe Series: Spiral Wound Approved Vendor 6 inch CGI Spiral Wound Gasket, 304 Stainless Steel, 150 LB, 1/8 inch Thickness Compressed |
/
|
|
1/2 inch CGI Spiral Wound Gasket, 316 Stainless Steel , 1/8 inch Thickness Compressed, Temperature range (F): 850 to -150, Pressure Class 150, Color Code: Green with Gray Stripe, With Centering Ring
| Color | : | Green with Gray Stripe |
| Compliances/Standards | : | REACH Complaint, RoHS Compliant |
| Filler Material | : | Flexible Graphite |
| Inner Ring Material | : | 316L Stainless Steel |
| Inside Diameter (Inner Ring) | : | 0.560 in |
| Inside Diameter (Outer Ring) | : | 1.250 in |
| Inside Seal Diameter | : | 0.750 in |
| Item Type | : | Gasket-Spiral Wound |
| Material | : | 316/316L Stainless Steel |
| Nominal/Diameter Size | : | 1/2 in |
| Outer Diameter (Outer Ring) | : | 1.880 in |
| Outer Ring Material | : | 316L Stainless Steel |
| Outer Seal Diameter | : | 1.250 in |
| Pressure Class | : | 150 lb |
| Series | : | CGI |
| Temperature Range | : | 850 to -150 deg f |
| Thickness | : | 1/8 in |
| Type | : | CGI-Ring |
