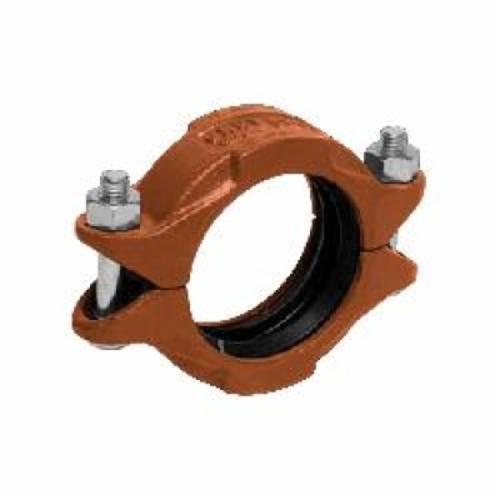

gRUVLOK Lightweight Flexible Pipe Coupling
Gruvlok® FIG 7000 Lightweight Flexible Pipe Coupling With (2) Bolt and Nut, 2 in Nominal, Grooved End Style, Ductile Iron, Rust Inhibiting Painted, Domestic
| Compare (0) selected | Item | Properties | Quantity | Price / UOM | Availability |
|---|---|---|---|---|---|
|
GV7000CT2 |
ItemType: Coupling Nominal/DiameterSize: 2 in Material: Ductile Iron EndStyle: Grooved Type: Lightweight Flexible Domestic/Import: Domestic TemperatureRating: 20 to 180 deg f Finish: Rust-Inhibiting Orange Paint PressureRating: 600 psi Gruvlok® 0390000800 Gruvlok® 0390000800 FIG 7000 Lightweight Flexible Pipe Coupling With (2) Bolt and Nut, 2 in Nominal, Grooved End Style, Ductile Iron, Rust Inhibiting Painted, Domestic |
/
|
|
|
|
|
GV7000CT3 |
ItemType: Coupling Nominal/DiameterSize: 3 in Material: Ductile Iron EndStyle: Grooved Type: Lightweight Flexible Domestic/Import: Domestic TemperatureRating: 20 to 180 deg f Finish: Rust-Inhibiting Orange Paint PressureRating: 600 psi Gruvlok® 0390000842 Gruvlok® 0390000842 FIG 7000 Lightweight Flexible Pipe Coupling With Grade "T" Nitrile Gasket, 3 in Nominal, Grooved End Style, Ductile Iron, Painted, Domestic |
/
|
|
|
|
|
GV7000CT4 |
ItemType: Coupling Nominal/DiameterSize: 4 in Material: Ductile Iron EndStyle: Grooved Type: Lightweight Flexible Domestic/Import: Domestic TemperatureRating: 20 to 180 deg f Finish: Rust-Inhibiting Orange Paint PressureRating: 600 psi Gruvlok® 0390000883 Gruvlok® 0390000883 FIG 7000 Lightweight Flexible Coupling, 4 in Nominal, Grooved End Style, Ductile Iron, Rust Inhibiting Painted, Domestic |
/
|
|
The Fig. 7000 Lightweight Flexible Coupling is designed for applications where system flexibility is desired. The Fig. 7000 Coupling is approximately 30% lighter in weight than the Fig. 7001 Coupling, and allows for working pressure ratings up to 600 psi (41.4 bar). The Figure 7000 Lightweight Flexible Coupling is intended for use in several applications. See Gasket Grade Index for gasket recommendations.
Gruvlok® Pipe Coupling, Lightweight Flexible, Series: FIG 7000, Fitting/Connector Type: Coupling, 3 in Nominal, Grooved, 1-3/4 in Thickness, 600 psi, Ductile Iron, Painted, 3-1/2 in OD, Domestic
| Domestic/Import | : | Domestic |
| End Style | : | Grooved |
| Finish | : | Rust-Inhibiting Orange Paint |
| Item Type | : | Coupling |
| Material | : | Ductile Iron |
| Nominal/Diameter Size | : | 3 in |
| Pressure Rating | : | 600 psi |
| Temperature Rating | : | 20 to 180 deg f |
| Thickness | : | 1-3/4 in |
| Type | : | Lightweight Flexible |
