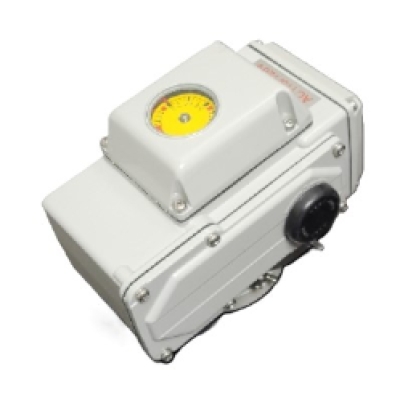

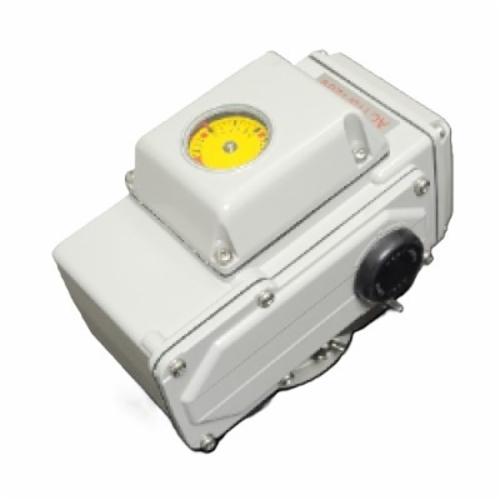

CRANE® On-Off Rotary Electric Actuator, Aluminum Body
CRANE® On-Off Rotary Electric Actuator, Aluminum Body
| Compare (0) selected | Item | Properties | Quantity | Price / UOM | Availability |
|---|---|---|---|---|---|
|
ACE44200 |
Domestic/Import: Domestic MountingType: Valve Series: 44000 OutputTorque: 868 in-lb TemperatureRating: -13 to 150 deg F CRANE® 44200-10 CRANE® 44200-10 44000 On-Off Rotary Electric Actuator, 868 in-lb Output Torque, Aluminum Body |
/
|
|
|
|
|
ACE44400 |
Domestic/Import: Domestic MountingType: Valve Series: 44000 OutputTorque: 3472 in-lb TemperatureRating: -13 to 150 deg F Type: Intumescent CRANE® 44400 CRANE® 44400 44000 On-Off Rotary Electric Actuator, 3472 in-lb Output Torque, Aluminum Body |
/
|
|
With nearly maintenance-free operation, the CRANE® 44000 electric actuator is ideal for small to medium diameter valves in high frequency applications. These actuators allow precise positioning of the valve and provide modulating service as well as on or off. Maintenance is simplified because no lubrication service or changing of brakes is required. The CRANE® 44000 actuator mounts directly to Center Line® valves and mounting to Flowseal valves is accomplished by using a separate mount kit.
CRANE® Electric Actuator, On-Off Rotary, Series: 44000, 3472 in-lb Output, 25 s Travel, 24 VAC 1.66/0.90 A 1 Ph 50/60 Hz Supply, -13 to 150 deg F, Valve Mount, Aluminum Body
| Base Type | : | Water |
| Color | : | Red |
| Container Size | : | 10.3 oz |
| Coverage | : | 18 cu-in |
| Curing Time | : | 3 to 4 Weeks |
| Domestic/Import | : | Domestic |
| Item Type | : | Electric Actuator |
| Material | : | Aluminum |
| Mounting Type | : | Valve |
| Output Torque | : | 3472 in-lb |
| Series | : | 44000 |
| Temperature Rating | : | -13 to 150 deg F |
| Type | : | Intumescent |
| VOC Content | : | <10 g/L |
| pH Range | : | 6.5 to 7 |
