Carbon Steel Flat Face Blind Flange 150lb Import
Flat Face Blind Flange, Carbon Steel, 150 lb
| Compare (0) selected | Item | Properties | Quantity | Price / UOM | Availability |
|---|---|---|---|---|---|
|
WA15BLF4 |
ItemType: Blind Flange Nominal/DiameterSize: 4 in BoltSize: 3/4 in Thickness: 0.88 in OutsideDiameter: 9.00 in HubDiameter: 5.31 in Finish: Black BoltHoleSize: 7/8 in EndStyle: Butt Weld BoltCircleDiameter: 7.50 in Material: Carbon Steel Domestic/Import: Import Type: Flat Face TemperatureRating: -20 to 100 deg F Approved Vendor Flat Face Blind Flange, 4 in, Carbon Steel, 150 lb |
/
|
|
|
|
|
WA15BLF6 |
ItemType: Blind Flange Nominal/DiameterSize: 6 in BoltSize: 3/4 in Thickness: 0.94 in OutsideDiameter: 11.00 in HubDiameter: 7.56 in Finish: Black BoltHoleSize: 7/8 in EndStyle: Butt Weld BoltCircleDiameter: 9.50 in Material: Carbon Steel Domestic/Import: Import Type: Flat Face TemperatureRating: -20 to 100 deg F Approved Vendor Flat Face Blind Flange, 6 in, Carbon Steel, 150 lb |
/
|
|
|
|
|
WA15BLF12 |
ItemType: Blind Flange Nominal/DiameterSize: 12 in BoltSize: 7/8 in Thickness: 1.19 in OutsideDiameter: 19.00 in HubDiameter: 14.38 in Finish: Black BoltHoleSize: 1 in EndStyle: Butt Weld BoltCircleDiameter: 17.00 in Material: Carbon Steel Domestic/Import: Import Type: Flat Face TemperatureRating: -20 to 100 deg F Approved Vendor Flat Face Blind Flange, 12 in, Carbon Steel, 150 lb |
/
|
|

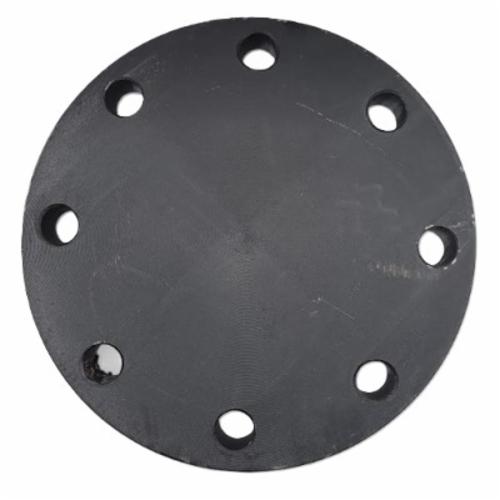

Blind Flange, Flat Face, 4 in Nominal, 0.88 in Thickness, 9 in Outside Dia, 150 lb, 5.31 in Hub Dia, 1-1/4 in Length Through Hub, Carbon Steel
| Bolt Circle Diameter | : | 7.50 in |
| Bolt Hole Size | : | 7/8 in |
| Bolt Size | : | 3/4 in |
| Domestic/Import | : | Import |
| End Style | : | Butt Weld |
| Finish | : | Black |
| Hub Diameter | : | 5.31 in |
| Item Type | : | Blind Flange |
| Material | : | Carbon Steel |
| Method Of Manufacture | : | Weld |
| Nominal/Diameter Size | : | 4 in |
| Number of Bolt Holes | : | 8 |
| Outside Diameter | : | 9.00 in |
| Temperature Rating | : | -20 to 100 deg F |
| Thickness | : | 0.88 in |
| Type | : | Flat Face |
