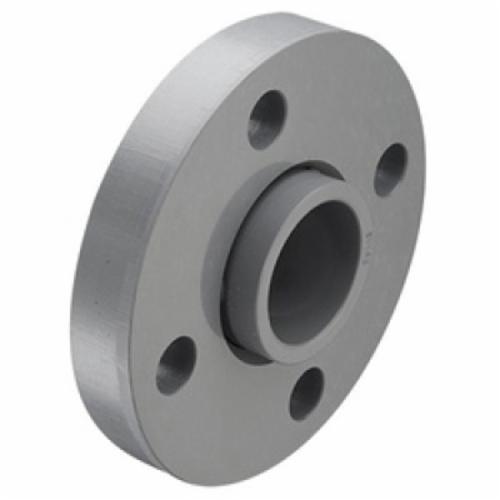

Threaded PVC 2-Piece Van Stone Flange 150lb Domestic
2-Piece Van Stone Molded Flange With PVC Ring, PVC, FNPT Connection, 150 lb, Domestic
| Compare (0) selected | Item | Properties | Quantity | Price / UOM | Availability |
|---|---|---|---|---|---|
|
Z8TFL1 |
ItemType: Van Stone Flange Nominal/DiameterSize: 1 in Material: PVC EndStyle: FNPT ScheduleRating: SCH 40/STD/SCH 80/XH Domestic/Import: Domestic Finish: Gray MethodofManufacture: Molded Type: 2 Piece TemperatureRating: 140 deg F BoltCircleDiameter: 3.12 in BoltHoleSize: 5/8 in BoltSize: 1/2 in HubDiameter: 1.94 in NumberofBoltHoles: 4 OutsideDiameter: 4.25 in PressureClass: 150 lb Approved Vendor 2-Piece Van Stone Molded Flange With PVC Ring, 1 in Nominal, PVC, FNPT Connection, 150 lb, 4-1/4 in OD, Domestic |
/
|
|
|
|
|
Z8TFL11/4 |
ItemType: Van Stone Flange Nominal/DiameterSize: 1-1/4 in Material: PVC EndStyle: FNPT ScheduleRating: SCH 40/STD/SCH 80/XH Domestic/Import: Domestic Finish: Gray MethodofManufacture: Molded Type: 2 Piece TemperatureRating: 140 deg F BoltCircleDiameter: 3.50 in BoltHoleSize: 5/8 in BoltSize: 1/2 in HubDiameter: 2.31 in NumberofBoltHoles: 4 OutsideDiameter: 4.62 in PressureClass: 150 lb Approved Vendor 2-Piece Van Stone Molded Flange With PVC Ring, 1-1/4 in Nominal, PVC, FNPT Connection, 150 lb, 4-5/8 in OD, Domestic |
/
|
|
|
|
|
Z8TFL11/2 |
ItemType: Van Stone Flange Nominal/DiameterSize: 1-1/2 in Material: PVC EndStyle: FNPT ScheduleRating: SCH 40/STD/SCH 80/XH Domestic/Import: Domestic Finish: Gray MethodofManufacture: Molded Type: 2 Piece TemperatureRating: 140 deg F BoltCircleDiameter: 3.88 in BoltHoleSize: 5/8 in BoltSize: 1/2 in HubDiameter: 2.56 in NumberofBoltHoles: 4 OutsideDiameter: 5.00 in PressureClass: 150 lb Approved Vendor 2-Piece Van Stone Molded Flange With PVC Ring, 1-1/2 in Nominal, PVC, FNPT Connection, 150 lb, 5 in OD, Domestic |
/
|
|
|
|
|
Z8TFL21/2 |
ItemType: Van Stone Flange Nominal/DiameterSize: 2-1/2 in Material: PVC EndStyle: FNPT ScheduleRating: SCH 40/STD/SCH 80/XH Domestic/Import: Domestic Finish: Gray MethodofManufacture: Molded Type: 2 Piece TemperatureRating: 140 deg F BoltCircleDiameter: 5.50 in BoltHoleSize: 3/4 in BoltSize: 5/8 in HubDiameter: 3.56 in NumberofBoltHoles: 4 OutsideDiameter: 7.00 in PressureClass: 150 lb Approved Vendor 2-Piece Van Stone Molded Flange With PVC Ring, 2-1/2 in Nominal, PVC, FNPT Connection, 150 lb, 7 in OD, Domestic |
/
|
|
|
|
|
Z8TFL3 |
ItemType: Van Stone Flange Nominal/DiameterSize: 3 in Material: PVC EndStyle: FNPT ScheduleRating: SCH 40/STD/SCH 80/XH Domestic/Import: Domestic Finish: Gray MethodofManufacture: Molded Type: 2 Piece TemperatureRating: 140 deg F BoltCircleDiameter: 6.00 in BoltHoleSize: 3/4 in BoltSize: 5/8 in HubDiameter: 4.25 in NumberofBoltHoles: 4 OutsideDiameter: 7.50 in PressureClass: 150 lb Approved Vendor 2-Piece Van Stone Molded Flange With Glass Filled PVC Ring, 3 in Nominal, PVC, FNPT Connection, 150 lb, 7-1/2 in OD, Domestic |
/
|
|
|
|
|
Z8TFL4 |
ItemType: Van Stone Flange Nominal/DiameterSize: 4 in Material: PVC EndStyle: FNPT ScheduleRating: SCH 40/STD/SCH 80/XH Domestic/Import: Domestic Finish: Gray MethodofManufacture: Molded Type: 2 Piece TemperatureRating: 140 deg F BoltCircleDiameter: 7.50 in BoltHoleSize: 3/4 in BoltSize: 5/8 in HubDiameter: 5.31 in NumberofBoltHoles: 8 OutsideDiameter: 9.00 in PressureClass: 150 lb Approved Vendor 2-Piece Van Stone Molded Flange With Glass Filled PVC Ring, 4 in Nominal, PVC, FNPT Connection, 150 lb, 9 in OD, Domestic |
/
|
|
Flange, 2-Piece Van Stone Molded, 1 in Nominal, 4-1/4 in OD, 3-1/8 in Diameter Bolt Circle, FNPT Connection, 150 psi Pressure, 150 lb Pressure Class, SCH 40/STD/SCH 80/XH Schedule, 73 deg F, PVC, Gray, 1-1/4 in H Dimensions, Domestic
| Bolt Circle Diameter | : | 3.12 in |
| Bolt Hole Size | : | 5/8 in |
| Bolt Size | : | 1/2 in |
| Domestic/Import | : | Domestic |
| End Style | : | FNPT |
| Finish | : | Gray |
| Hub Diameter | : | 1.94 in |
| Item Type | : | Van Stone Flange |
| Material | : | PVC |
| Method of Manufacture | : | Molded |
| Nominal/Diameter Size | : | 1 in |
| Number of Bolt Holes | : | 4 |
| Outside Diameter | : | 4.25 in |
| Pressure Class | : | 150 lb |
| Schedule Rating | : | SCH 40/STD/SCH 80/XH |
| Temperature Rating | : | 140 deg F |
| Type | : | 2 Piece |
