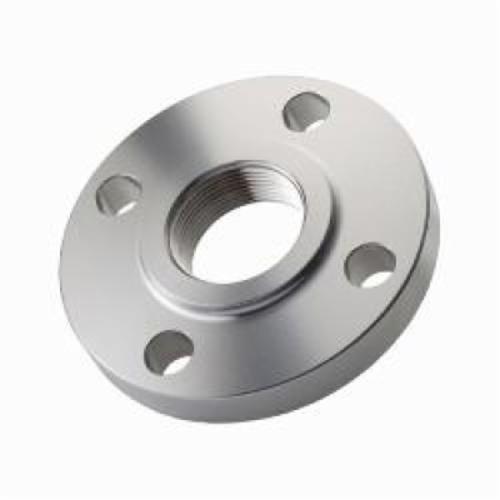

316 Stainless Raised Face Threaded Flange 150lb Import
Raised Face Pipe Flange, 316/316L Stainless Steel, Thread Connection, 150 lb, Import
| Compare (0) selected | Item | Properties | Quantity | Price / UOM | Availability |
|---|---|---|---|---|---|
|
W156THR1/2 |
ItemType: Threaded Flange Nominal/DiameterSize: 1/2 in Type: Raised Face Thickness: 0.38 in Domestic/Import: Import Material: 316/316L Stainless Steel EndStyle: FNPT BoltCircleDiameter: 2.38 in HubDiameter: 1.19 in PressureClass: 150 lb OutsideDiameter: 3.50 in BoltSize: 1/2 in BoltHoleSize: 5/8 in NumberofBoltHoles: 4 Approved Vendor Raised Face Pipe Flange, 1/2 in Nominal, 316/316L Stainless Steel, Thread Connection, 150 lb, Import |
/
|
|
|
|
|
W156THR3/4 |
ItemType: Threaded Flange Nominal/DiameterSize: 3/4 in Type: Raised Face Thickness: 0.44 in Domestic/Import: Domestic Material: 316/316L Stainless Steel EndStyle: FNPT BoltCircleDiameter: 2.75 in HubDiameter: 1.50 in PressureClass: 150 lb OutsideDiameter: 3.88 in BoltSize: 1/2 in BoltHoleSize: 5/8 in NumberofBoltHoles: 4 Approved Vendor Raised Face Pipe Flange, 3/4 in Nominal, 316/316L Stainless Steel, Thread Connection, 150 lb, Import |
/
|
|
|
|
|
W156THR1 |
ItemType: Threaded Flange Nominal/DiameterSize: 1 in Type: Raised Face Thickness: 0.50 in Domestic/Import: Import Material: 316/316L Stainless Steel EndStyle: FNPT BoltCircleDiameter: 3.12 in HubDiameter: 1.94 in PressureClass: 150 lb OutsideDiameter: 4.25 in BoltSize: 1/2 in BoltHoleSize: 5/8 in NumberofBoltHoles: 4 Approved Vendor Raised Face Pipe Flange, 1 in Nominal, 316/316L Stainless Steel, Thread Connection, 150 lb, Import |
/
|
|
|
|
|
W156THR11/2 |
ItemType: Threaded Flange Nominal/DiameterSize: 1-1/2 in Type: Raised Face Thickness: 0.62 in Domestic/Import: Import Material: 316/316L Stainless Steel EndStyle: FNPT BoltCircleDiameter: 3.88 in HubDiameter: 2.56 in PressureClass: 150 lb OutsideDiameter: 5.00 in BoltSize: 1/2 in BoltHoleSize: 5/8 in NumberofBoltHoles: 4 Approved Vendor Raised Face Pipe Flange, 1-1/2 in Nominal, 316/316L Stainless Steel, Thread Connection, 150 lb, Import |
/
|
|
|
|
|
W156THR2 |
ItemType: Threaded Flange Nominal/DiameterSize: 2 in Type: Raised Face Thickness: 0.69 in Domestic/Import: Import Material: 316/316L Stainless Steel EndStyle: FNPT BoltCircleDiameter: 4.75 in HubDiameter: 3.06 in PressureClass: 150 lb OutsideDiameter: 6.00 in BoltSize: 1/2 in BoltHoleSize: 5/8 in NumberofBoltHoles: 4 Approved Vendor Raised Face Pipe Flange, 2 in Nominal, 316/316L Stainless Steel, Thread Connection, 150 lb, Import |
/
|
|
|
|
|
W156THR3 |
ItemType: Threaded Flange Nominal/DiameterSize: 3 in Type: Raised Face Thickness: 0.88 in Domestic/Import: Import Material: 316/316L Stainless Steel EndStyle: FNPT BoltCircleDiameter: 6.00 in HubDiameter: 4.25 in PressureClass: 150 lb OutsideDiameter: 7.50 in BoltSize: 5/8 in BoltHoleSize: 3/4 in NumberofBoltHoles: 4 Approved Vendor Raised Face Pipe Flange, 3 in Nominal, 316/316L Stainless Steel, Thread Connection, 150 lb, Import |
/
|
|
|
|
|
W156THR4 |
ItemType: Threaded Flange Nominal/DiameterSize: 4 in Type: Raised Face Thickness: 0.88 in Domestic/Import: Domestic Material: 316/316L Stainless Steel EndStyle: FNPT BoltCircleDiameter: 7.50 in HubDiameter: 5.31 in PressureClass: 150 lb OutsideDiameter: 9.00 in BoltSize: 5/8 in BoltHoleSize: 3/4 in NumberofBoltHoles: 8 Approved Vendor Raised Face Pipe Flange, 4 in Nominal, 316/316L Stainless Steel, Thread Connection, 150 lb, Import |
/
|
|
.jpg){kind=link}
Pipe Flange, Raised Face, 1/2 in Nominal, 0.44 in Thickness, 2.38 in Diameter Bolt Circle, 4 Bolt Holes, 1/2 in Bolt Hole, Thread Connection, 3-1/2 in OD, 150 lb Pressure Class, 1.19 in Diameter Hub, 0.62 in Length Through Hub, 316/316L Stainless Steel, Domestic/Import: Import
| Bolt Circle Diameter | : | 2.38 in |
| Bolt Hole Size | : | 5/8 in |
| Bolt Size | : | 1/2 in |
| Domestic/Import | : | Import |
| End Style | : | FNPT |
| Hub Diameter | : | 1.19 in |
| Item Type | : | Threaded Flange |
| Length Through Hub | : | 0.56 in |
| Material | : | 316/316L Stainless Steel |
| Method Of Manufacture | : | Weld |
| Nominal/Diameter Size | : | 1/2 in |
| Number of Bolt Holes | : | 4 |
| Outside Diameter | : | 3.50 in |
| Pressure Class | : | 150 lb |
| Thickness | : | 0.38 in |
| Type | : | Raised Face |
