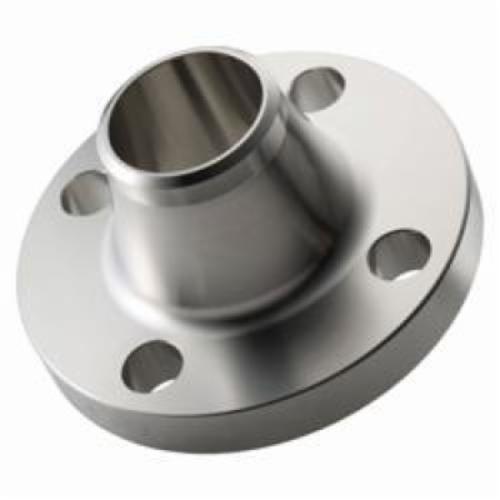

316 Stainless Raised Face Weld Neck Flange 150lb Import
Raised Face Weld Neck Flange, Forged 316/316L Stainless Steel, 150 lb, SCH 40S Bore, Import
| Compare (0) selected | Item | Properties | Quantity | Price / UOM | Availability |
|---|---|---|---|---|---|
|
W156WNR1 |
ItemType: Weld Neck Flange Nominal/DiameterSize: 1 in Domestic/Import: Import Type: Raised Face EndStyle: Butt Weld Material: 316/316L Stainless Steel OutsideDiameter: 4.25 in Thickness: 0.50 in BoltSize: 1/2 in HubDiameter: 1.94 in LengthThroughHub: 2.12 in BoreSize: SCH 40S/STD PressureClass: 150 lb NumberofBoltHoles: 4 BoltHoleSize: 5/8 in BoltCircleDiameter: 3.12 in Approved Vendor Raised Face Weld Neck Flange, 1 in, Forged 316/316L Stainless Steel, 150 lb, SCH 40S Bore, Import |
/
|
|
|
|
|
W156WNR11/2 |
ItemType: Weld Neck Flange Nominal/DiameterSize: 1-1/2 in Domestic/Import: Import Type: Raised Face EndStyle: Butt Weld Material: 316/316L Stainless Steel OutsideDiameter: 5.00 in Thickness: 0.62 in BoltSize: 1/2 in HubDiameter: 2.56 in LengthThroughHub: 2.38 in BoreSize: SCH 40S/STD PressureClass: 150 lb NumberofBoltHoles: 4 BoltHoleSize: 5/8 in BoltCircleDiameter: 3.88 in Approved Vendor Raised Face Weld Neck Flange, 1-1/2 in, Forged 316/316L Stainless Steel, 150 lb, SCH 40S Bore, Import |
/
|
|
|
|
|
W156WNR2 |
ItemType: Weld Neck Flange Nominal/DiameterSize: 2 in Domestic/Import: Import Type: Raised Face EndStyle: Butt Weld Material: 316/316L Stainless Steel OutsideDiameter: 6.00 in Thickness: 0.69 in BoltSize: 5/8 in HubDiameter: 3.06 in LengthThroughHub: 2.44 in BoreSize: SCH 40S/STD PressureClass: 150 lb NumberofBoltHoles: 4 BoltHoleSize: 3/4 in BoltCircleDiameter: 4.75 in Approved Vendor Raised Face Weld Neck Flange, 2 in, Forged 316/316L Stainless Steel, 150 lb, SCH 40S Bore, Import |
/
|
|
|
|
|
W156WNR3 |
ItemType: Weld Neck Flange Nominal/DiameterSize: 3 in Domestic/Import: Import Type: Raised Face EndStyle: Butt Weld Material: 316/316L Stainless Steel OutsideDiameter: 7.50 in Thickness: 0.88 in BoltSize: 5/8 in HubDiameter: 4.25 in LengthThroughHub: 2.69 in BoreSize: SCH 40S/STD PressureClass: 150 lb NumberofBoltHoles: 4 BoltHoleSize: 3/4 in BoltCircleDiameter: 6.00 in Approved Vendor Raised Face Weld Neck Flange, 3 in, Forged 316/316L Stainless Steel, 150 lb, SCH 40S Bore, Import |
/
|
|
|
|
|
W156WNR4 |
ItemType: Weld Neck Flange Nominal/DiameterSize: 4 in Domestic/Import: Import Type: Raised Face EndStyle: Butt Weld Material: 316/316L Stainless Steel OutsideDiameter: 9.00 in Thickness: 0.88 in BoltSize: 5/8 in HubDiameter: 5.31 in LengthThroughHub: 2.94 in BoreSize: SCH 40S/STD PressureClass: 150 lb NumberofBoltHoles: 8 BoltHoleSize: 3/4 in BoltCircleDiameter: 7.50 in Approved Vendor Raised Face Weld Neck Flange, 4 in, Forged 316/316L Stainless Steel, 150 lb, SCH 40S Bore, Import |
/
|
|
|
|
|
W156WNR6 |
ItemType: Weld Neck Flange Nominal/DiameterSize: 6 in Domestic/Import: Import Type: Raised Face EndStyle: Butt Weld Material: 316/316L Stainless Steel OutsideDiameter: 11.00 in Thickness: 0.94 in BoltSize: 3/4 in HubDiameter: 7.56 in LengthThroughHub: 3.44 in BoreSize: SCH 40S/STD PressureClass: 150 lb NumberofBoltHoles: 8 BoltHoleSize: 7/8 in BoltCircleDiameter: 9.50 in Approved Vendor Raised Face Weld Neck Flange, 6 in, Forged 316/316L Stainless Steel, 150 lb, SCH 40S Bore, Import |
/
|
|
|
|
|
W156WNR10 |
ItemType: Weld Neck Flange Nominal/DiameterSize: 10 in Domestic/Import: Import Type: Raised Face EndStyle: Butt Weld Material: 316/316L Stainless Steel OutsideDiameter: 16.00 in Thickness: 1.12 in BoltSize: 7/8 in HubDiameter: 12.00 in LengthThroughHub: 3.94 in BoreSize: SCH 40S/STD PressureClass: 150 lb NumberofBoltHoles: 12 BoltHoleSize: 1 in BoltCircleDiameter: 14.25 in Approved Vendor Raised Face Weld Neck Flange, 10 in, Forged 316/316L Stainless Steel, 150 lb, SCH 40S Bore, Import |
/
|
|
Weld Neck Flange, Raised Face, 3 in Nominal, 3.07 in Inside Dia, 0.94 in Thickness, SCH 40S Bore, 6 in Bolt Circle, 4 Bolt Holes, 3/4 in, 7-1/2 in Outside Dia, 150 lb, 4.62 in Hub Dia, 3.12 in Length Through Hub, Forged 316/316L Stainless Steel, Import
| Bolt Circle Diameter | : | 6.00 in |
| Bolt Hole Size | : | 3/4 in |
| Bolt Size | : | 5/8 in |
| Bore Size | : | SCH 40S/STD |
| Domestic/Import | : | Import |
| End Style | : | Butt Weld |
| Hub Diameter | : | 4.25 in |
| Item Type | : | Weld Neck Flange |
| Length Through Hub | : | 2.69 in |
| Material | : | 316/316L Stainless Steel |
| Method Of Manufacture | : | Weld |
| Nominal/Diameter Size | : | 3 in |
| Number of Bolt Holes | : | 4 |
| Outside Diameter | : | 7.50 in |
| Pressure Class | : | 150 lb |
| Thickness | : | 0.88 in |
| Type | : | Raised Face |
5/8 in Dia bolt
