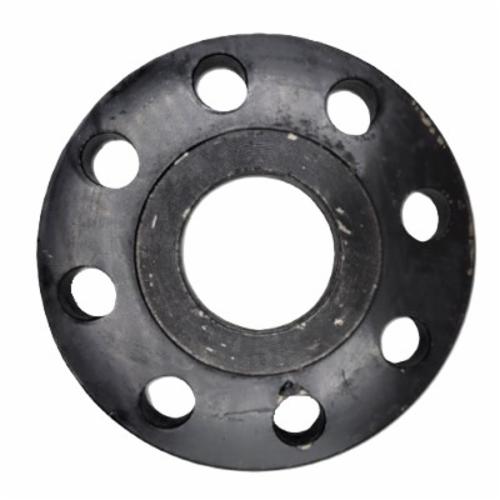

Carbon Steel Raised Face Threaded Flange 300lb Black Import
Raised Face Flange, Forged Carbon Steel, Thread Connection, 300 lb
| Compare (0) selected | Item | Properties | Quantity | Price / UOM | Availability |
|---|---|---|---|---|---|
|
WA30THR2 |
ItemType: Threaded Flange Nominal/DiameterSize: 2 in BoltSize: 5/8 in PressureClass: 300 lb Thickness: 0.81 in OutsideDiameter: 6.50 in HubDiameter: 3.31 in Finish: Black BoltHoleSize: 3/4 in EndStyle: FNPT BoltCircleDiameter: 5.00 in Material: Carbon Steel Domestic/Import: Import Type: Raised Face TemperatureRating: -20 to 100 deg F Approved Vendor Raised Face Flange, 2 in Nominal, Forged Carbon Steel, Thread Connection, 300 lb |
/
|
|
|
|
|
WA30THR21/2 |
ItemType: Threaded Flange Nominal/DiameterSize: 2-1/2 in BoltSize: 3/4 in PressureClass: 300 lb Thickness: 0.94 in OutsideDiameter: 7.50 in HubDiameter: 3.94 in Finish: Black BoltHoleSize: 7/8 in EndStyle: FNPT BoltCircleDiameter: 5.88 in Material: Carbon Steel Domestic/Import: Import Type: Raised Face TemperatureRating: -20 to 100 deg F Approved Vendor Raised Face Flange, 2-1/2 in Nominal, Forged Carbon Steel, Thread Connection, 300 lb |
/
|
|
|
|
|
WA30THR3 |
ItemType: Threaded Flange Nominal/DiameterSize: 3 in BoltSize: 3/4 in PressureClass: 300 lb Thickness: 1.06 in OutsideDiameter: 8.25 in HubDiameter: 4.62 in Finish: Black BoltHoleSize: 7/8 in EndStyle: FNPT BoltCircleDiameter: 6.62 in Material: Carbon Steel Domestic/Import: Import Type: Raised Face TemperatureRating: -20 to 100 deg F Approved Vendor Raised Face Flange, 3 in Nominal, Forged Carbon Steel, Thread Connection, 300 lb |
/
|
|
Raised Face, 2 in Nominal, 0.81 in Thickness, Thread Connection, 6-1/2 in OD, 300 lb Pressure Class, 3.31 in Diameter Hub, 1-1/4 in Length Through Hub, Forged Carbon Steel
| Bolt Circle Diameter | : | 5.00 in |
| Bolt Hole Size | : | 3/4 in |
| Bolt Size | : | 5/8 in |
| Domestic/Import | : | Import |
| End Style | : | FNPT |
| Finish | : | Black |
| Hub Diameter | : | 3.31 in |
| Item Type | : | Threaded Flange |
| Length Through Hub | : | 1-1/4 in |
| Material | : | Carbon Steel |
| Method Of Manufacture | : | Weld |
| Nominal/Diameter Size | : | 2 in |
| Number of Bolt Holes | : | 8 |
| Outside Diameter | : | 6.50 in |
| Pressure Class | : | 300 lb |
| Temperature Rating | : | -20 to 100 deg F |
| Thickness | : | 0.81 in |
| Type | : | Raised Face |
