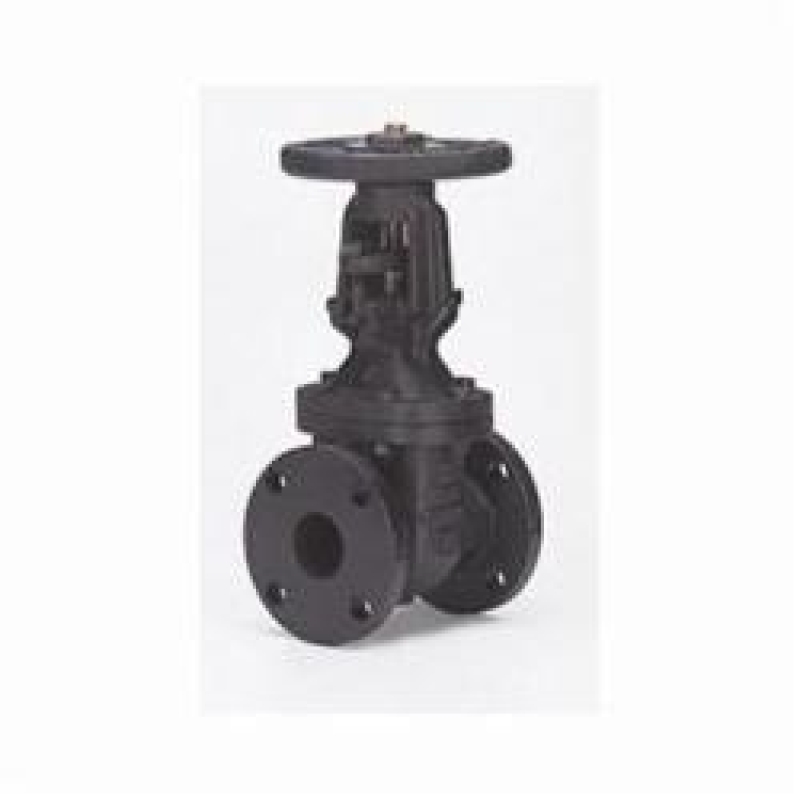

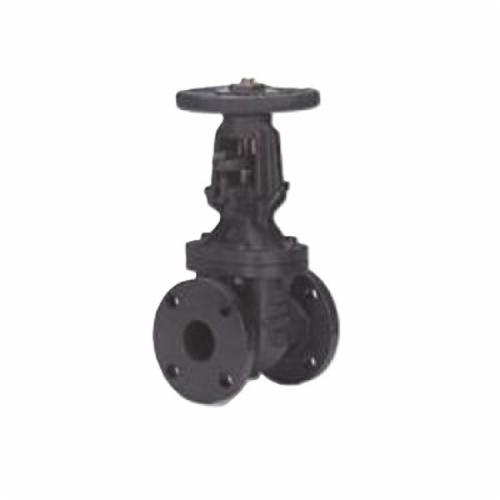

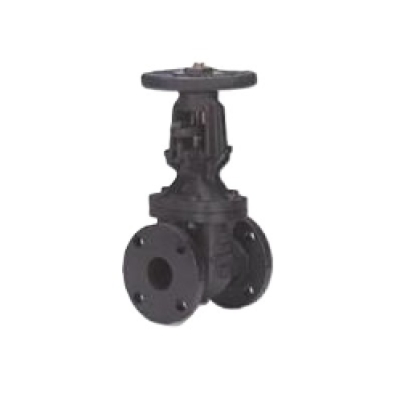

Milwaukee Valve F2885A-400 F-2885A Gate Valve, Flanged End Style, 125 lb, Cast Iron Body, Handwheel Actuator, Import
Milwaukee Valve Gate Valve, Series: F-2885A, Flanged End Style, 200 psi WOG Pressure, 125 lb Pressure Class, Handwheel Actuator, Cast Iron Body, Brass Trim, Graphite Packing/Body Gasket Softgoods, Import
| Compare (0) selected | Item | Properties | Quantity | Price / UOM | Availability |
|---|---|---|---|---|---|
|
VM2885A2 |
ItemType: Flanged Gate Valve Nominal/DiameterSize: 2 in Material: Cast Iron EndStyle: Flanged ActuatorType: Handwheel Type: Standard TrimMaterial: Brass PressureClass: 125 lb InlettoOutletLength: 7 in Domestic/Import: Import Series: F-2885A Milwaukee Valve F2885A-200 Milwaukee Valve F2885A-200 F-2885A Gate Valve, 2 in Nominal, Flanged End Style, 125 lb, Cast Iron Body, Handwheel Actuator, Import |
/
|
|
|
|
|
VM2885A21/2 |
ItemType: Flanged Gate Valve Nominal/DiameterSize: 2-1/2 in Material: Cast Iron EndStyle: Flanged ActuatorType: Handwheel Type: Standard TrimMaterial: Brass PressureClass: 125 lb InlettoOutletLength: 7-1/2 in Domestic/Import: Import Series: F-2885A Milwaukee Valve F2885A-212 Milwaukee Valve F2885A-212 F-2885A Gate Valve, 2-1/2 in Nominal, Flanged End Style, 125 lb, Cast Iron Body, Handwheel Actuator, Import |
/
|
|
|
|
|
VM2885A3 |
ItemType: Flanged Gate Valve Nominal/DiameterSize: 3 in Material: Cast Iron EndStyle: Flanged ActuatorType: Handwheel Type: Standard TrimMaterial: Brass PressureClass: 125 lb InlettoOutletLength: 8 in Domestic/Import: Import Series: F-2885A Milwaukee Valve F2885A-300 Milwaukee Valve F2885A-300 F-2885A Gate Valve, 3 in Nominal, Flanged End Style, 125 lb, Cast Iron Body, Handwheel Actuator, Import |
/
|
|
|
|
|
VM2885A4 |
ItemType: Flanged Gate Valve Nominal/DiameterSize: 4 in Material: Cast Iron EndStyle: Flanged ActuatorType: Handwheel Type: Standard TrimMaterial: Brass PressureClass: 125 lb InlettoOutletLength: 9 in Domestic/Import: Import Series: F-2885A Milwaukee Valve F2885A-400 Milwaukee Valve F2885A-400 F-2885A Gate Valve, 4 in Nominal, Flanged End Style, 125 lb, Cast Iron Body, Handwheel Actuator, Import |
/
|
|
|
|
|
VM2885A5 |
ItemType: Flanged Gate Valve Nominal/DiameterSize: 5 in Material: Cast Iron EndStyle: Flanged ActuatorType: Handwheel Type: Standard TrimMaterial: Brass PressureClass: 125 lb InlettoOutletLength: 10 in Domestic/Import: Import Series: F-2885A Milwaukee Valve F2885A-500 Milwaukee Valve F2885A-500 F-2885A Gate Valve, 5 in Nominal, Flanged End Style, 125 lb, Cast Iron Body, Handwheel Actuator, Import |
/
|
|
|
|
|
VM2885A6 |
ItemType: Flanged Gate Valve Nominal/DiameterSize: 6 in Material: Cast Iron EndStyle: Flanged ActuatorType: Handwheel Type: Standard TrimMaterial: Brass PressureClass: 125 lb InlettoOutletLength: 10-1/2 in Domestic/Import: Import Series: F-2885A Milwaukee Valve F2885A-600 Milwaukee Valve F2885A-600 F-2885A Gate Valve, 6 in Nominal, Flanged End Style, 125 lb, Cast Iron Body, Handwheel Actuator |
/
|
|
Milwaukee Valve Gate Valve, Series: F-2885A, 2 in Nominal, Flanged End Style, 200 psi WOG Pressure, 125 lb Pressure Class, Handwheel Actuator, 7 in Inlet to Outlet Length, 12 in Top to Inlet Center, Cast Iron Body, Brass Trim, Graphite Packing/Body Gasket Softgoods, 7 in Diameter Hand Wheel, Import
| Actuator Type | : | Handwheel |
| Domestic/Import | : | Import |
| End Style | : | Flanged |
| Inlet to Outlet Length | : | 7 in |
| Item Type | : | Flanged Gate Valve |
| Material | : | Cast Iron |
| Media | : | Steam |
| Nominal/Diameter Size | : | 2 in |
| Pressure Class | : | 125 lb |
| Pressure Rating | : | 200 psi WOG |
| Series | : | F-2885A |
| Softgoods Material | : | Graphite Packing |
| Trim Material | : | Brass |
| Type | : | Standard |
