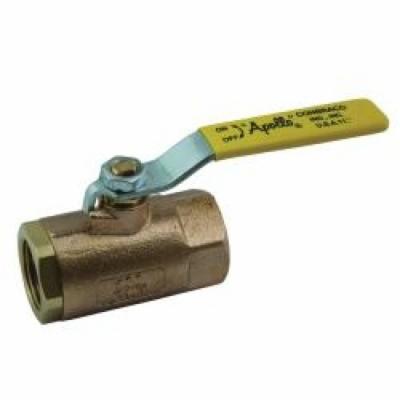

Bronze 2 Piece Ball Valve with Stainless Steel Ball & Stem, 250# Steam Trim FNPT
Apollo™ Ball Valve, 2-Piece, Series: 70-140, FNPT, 600 psig CWP, 500 deg F, Standard Port, Lever Operated Actuator, Stainless Steel Ball, Center, Bronze Body, 316 Stainless Steel Stem and RPTFE Seat Trim, MPTFE, Domestic
| Compare (0) selected | Item | Properties | Quantity | Price / UOM | Availability |
|---|---|---|---|---|---|
|
VAP701416401 |
ItemType: Ball Valve-Threaded 2 Piece Nominal/DiameterSize: 1/4 in Material: Brass/Bronze EndStyle: FNPT BallMaterial: Chrome Plated Brass ActuatorType: Lever Handle SoftgoodsMaterial: MPTFE Type: 2-Piece TrimMaterial: 316 Stainless Steel Stem and RPTFE Seat PressureRating: 600 psig CWP InlettoOutletLength: 2.06 in Domestic/Import: Domestic PortType: Standard Series: 70-140 Media: Water TemperatureRating: 500 deg f ToptoInletCenter: 1-3/4 in Apollo™ 7014164 Apollo™ 7014164 70-140 2-Piece Ball Valve, 1/4 in Nominal, FNPT End Style, Bronze Body, Standard Port, MPTFE Softgoods, Domestic |
/
|
|
|
|
|
VAP7014264 |
ItemType: Ball Valve-Threaded 2 Piece Nominal/DiameterSize: 3/8 in Material: Brass/Bronze EndStyle: FNPT BallMaterial: 316 Stainless Steel ActuatorType: Lever Handle SoftgoodsMaterial: MPTFE/PTFE Type: 2-Piece TrimMaterial: 316 Stainless Steel Stem and RPTFE Seat PressureRating: 600 psig CWP InlettoOutletLength: 2.06 in Domestic/Import: Domestic PortType: Standard Series: 70-140 Media: Water TemperatureRating: 500 deg f ToptoInletCenter: 1-3/4 in Apollo™ 7014264 Apollo™ 7014264 70-140 2-Piece Ball Valve, 3/8 in Nominal, FNPT End Style, Bronze Body, Standard Port, MPTFE Softgoods, Domestic |
/
|
|
|
|
|
VAP7014364 |
ItemType: Ball Valve-Threaded 2 Piece Nominal/DiameterSize: 1/2 in Material: Brass/Bronze EndStyle: FNPT BallMaterial: 316 Stainless Steel ActuatorType: Lever Handle SoftgoodsMaterial: MPTFE/PTFE Type: 2-Piece TrimMaterial: Stainless Steel Stem and RPTFE Seat PressureRating: 601 psig CWP InlettoOutletLength: 2.17 in Domestic/Import: Domestic PortType: Standard Series: 70-140 Media: Water TemperatureRating: 500 deg f ToptoInletCenter: 1-3/4 in Apollo™ 7014364 Apollo™ 7014364 70-140 2-Piece In-Line Ball Valve, 1/2 in Nominal, FNPT End Style, Bronze Body, Standard Port, PTFE Softgoods, Domestic |
/
|
|
|
|
|
VAP7014464 |
ItemType: Ball Valve-Threaded 2 Piece Nominal/DiameterSize: 3/4 in Material: Brass/Bronze EndStyle: FNPT BallMaterial: 316 Stainless Steel ActuatorType: Lever Handle SoftgoodsMaterial: MPTFE/PTFE Type: 2-Piece TrimMaterial: 316 Stainless Steel Stem and RPTFE Seat PressureRating: 600 psig CWP InlettoOutletLength: 2.12 in Domestic/Import: Domestic PortType: Standard Series: 70-140 Media: Water TemperatureRating: 500 deg f ToptoInletCenter: 2.12 in Apollo™ 7014464 Apollo™ 7014464 70-140 2-Piece Ball Valve, 3/4 in Nominal, FNPT End Style, Bronze Body, Standard Port, MPTFE Softgoods, Domestic |
/
|
|
|
|
|
VAP7014564 |
ItemType: Ball Valve-Threaded 2 Piece Nominal/DiameterSize: 1 in Material: Brass/Bronze EndStyle: FNPT BallMaterial: 316 Stainless Steel ActuatorType: Lever Handle SoftgoodsMaterial: MPTFE/PTFE Type: 2-Piece TrimMaterial: 316 Stainless Steel Stem and RPTFE Seat PressureRating: 600 psig CWP InlettoOutletLength: 2.14 in Domestic/Import: Domestic PortType: Standard Series: 70-140 Media: Water TemperatureRating: 500 deg f ToptoInletCenter: 2-1/4 in Apollo™ 7014564 Apollo™ 7014564 70-140 2-Piece Ball Valve, 1 in Nominal, FNPT End Style, Bronze Body, Standard Port, MPTFE Softgoods, Domestic |
/
|
|
|
|
|
VAP7014664 |
ItemType: Ball Valve-Threaded 2 Piece Nominal/DiameterSize: 1-1/4 in Material: Brass/Bronze EndStyle: FNPT BallMaterial: 316 Stainless Steel ActuatorType: Lever Handle SoftgoodsMaterial: MPTFE/PTFE Type: 2-Piece TrimMaterial: 316 Stainless Steel Stem and RPTFE Seat PressureRating: 600 psig CWP InlettoOutletLength: 2.62 in Domestic/Import: Domestic PortType: Standard Series: 70-140 Media: Water TemperatureRating: 500 deg f ToptoInletCenter: 2.62 in Apollo™ 7014664 Apollo™ 7014664 70-140 2-Piece Ball Valve, 1-1/4 in Nominal, FNPT End Style, Bronze Body, Standard Port, PTFE/MPTFE Softgoods, Domestic |
/
|
|
|
|
|
VAP7014764 |
ItemType: Ball Valve-Threaded 2 Piece Nominal/DiameterSize: 1-1/2 in Material: Brass/Bronze EndStyle: FNPT BallMaterial: 316 Stainless Steel ActuatorType: Lever Handle SoftgoodsMaterial: MPTFE/PTFE Type: 2-Piece TrimMaterial: 316 Stainless Steel Stem and RPTFE Seat PressureRating: 600 psig CWP InlettoOutletLength: 4.37 in Domestic/Import: Domestic PortType: Standard Series: 70-140 Media: Water TemperatureRating: 500 deg f ToptoInletCenter: 3.06 in Apollo™ 7014764 Apollo™ 7014764 70-140 2-Piece Ball Valve, 1-1/2 in Nominal, FNPT End Style, Bronze Body, Standard Port, MPTFE/PTFE Softgoods, Domestic |
/
|
|
|
|
|
VAP7014864 |
ItemType: Ball Valve-Threaded 2 Piece Nominal/DiameterSize: 2 in Material: Brass/Bronze EndStyle: FNPT BallMaterial: 316 Stainless Steel ActuatorType: Lever Handle SoftgoodsMaterial: MPTFE/PTFE Type: 2-Piece TrimMaterial: 316 Stainless Steel Stem and RPTFE Seat PressureRating: 600 psig CWP InlettoOutletLength: 4.68 in Domestic/Import: Domestic PortType: Standard Series: 70-140 Media: Water TemperatureRating: 500 deg f ToptoInletCenter: 3-1/4 in Apollo™ 7014864 Apollo™ 7014864 70-140 2-Piece Ball Valve, 2 in Nominal, FNPT End Style, Bronze Body, Standard Port, PTFE/MPTFE Softgoods, Domestic |
/
|
|
The Apollo™ 70 Series is the most widely used general purpose bronze ball valve on the market today. The 70-100 model is a 2-piece standard port ball valve featuring female NPT connections. Cast and machined in Apollo™'s South Carolina manufacturing plants, these valves provide trusted performance and a wide range of options.
Apollo™ Ball Valve, 2-Piece, Series: 70-140, 1/4 in Nominal, FNPT, 600 psig CWP, 500 deg F, Standard Port, Media: Water, Lever Operated Actuator, 316 Stainless Steel Ball, 2.06 in Inlet to Outlet Length, 1-3/4 in Top to Inlet Center, Bronze Body, 316 Stainless Steel Stem and RPTFE Seat Trim, MPTFE, Domestic
| Actuator Type | : | Lever Handle |
| Ball Material | : | Chrome Plated Brass |
| Domestic/Import | : | Domestic |
| End Style | : | FNPT |
| Inlet to Outlet Length | : | 2.06 in |
| Item Type | : | Ball Valve-Threaded 2 Piece |
| Material | : | Brass/Bronze |
| Media | : | Water |
| Nominal/Diameter Size | : | 1/4 in |
| Port Type | : | Standard |
| Pressure Rating | : | 600 psig CWP |
| Series | : | 70-140 |
| Softgoods Material | : | MPTFE |
| Temperature Rating | : | 500 deg f |
| Top to Inlet Center | : | 1-3/4 in |
| Trim Material | : | 316 Stainless Steel Stem and RPTFE Seat |
| Type | : | 2-Piece |
