Gruvlok® 0763100062 VRW951711/4

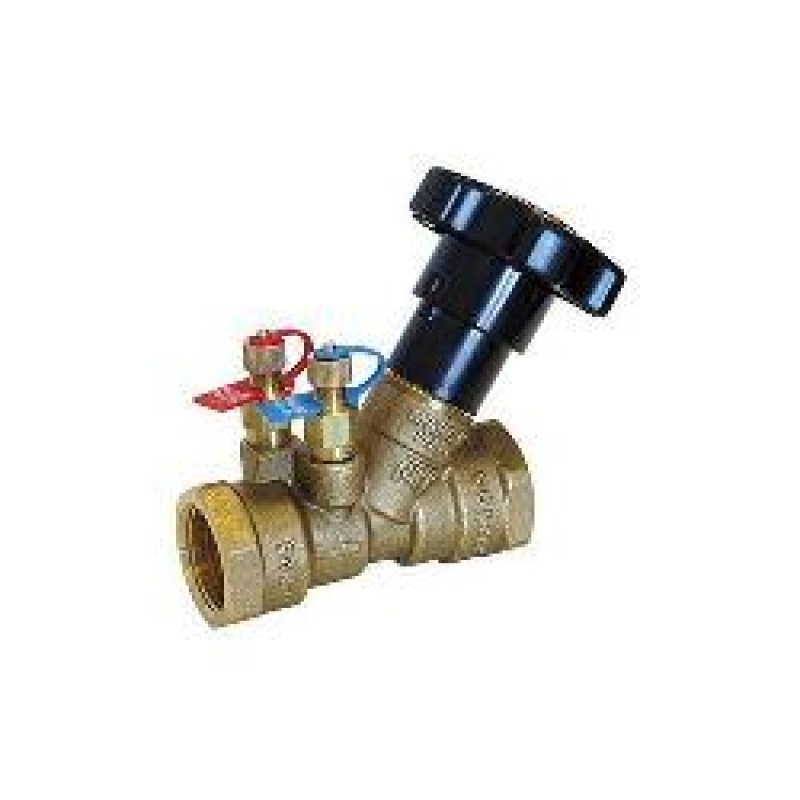

Gruvlok® 0763100062 FIG MBV-9517 Fixed Orifice Double Regulating Valve, 1-1/4 in Nominal, NPT End Style, 300 psi Working Pressure, 8.56 to 19.81 gpm Flow Rate, Brass Body, Import
- Brand: Gruvlok®
- Manufacturer:ASC Engineered Solutions
- MKSPN: VRW951711/4
- MPN: 0763100062
- UPC: 662428521811
- Min. Order Qty: 1
- Qty. Interval: 1
-
Login or Register for pricing
| Compare (0) selected | Item | Properties | Quantity | Price / UOM | Availability |
|---|---|---|---|---|---|
|
VRW95171/2 | Gruvlok® 0763100005 Gruvlok® 0763100005 FIG MBV-9517 Fixed Orifice Double Regulating Valve, 1/2 in Nominal, NPT End Style, 300 psi Pressure, Brass Body, Import |
/
|
|
|
|
|
VRW95173/4 | Gruvlok® 0763100021 Gruvlok® 0763100021 FIG MBV-9517 Fixed Orifice Double Regulating Valve, 3/4 in Nominal, NPT End Style, 300 psi Pressure, Brass Body, Import |
/
|
|
|
|
|
VRW95171 | Gruvlok® 0763100047 Gruvlok® 0763100047 FIG MBV-9517 Fixed Orifice Double Regulating Valve, 1 in Nominal, NPT End Style, 300 psi Pressure, Brass Body, Import |
/
|
|
|
|
VRW951711/4 | Gruvlok® 0763100062 Gruvlok® 0763100062 FIG MBV-9517 Fixed Orifice Double Regulating Valve, 1-1/4 in Nominal, NPT End Style, 300 psi Working Pressure, 8.56 to 19.81 gpm Flow Rate, Brass Body, Import |
/
|
|
|
|
|
VRW951711/2 | Gruvlok® 0763100088 Gruvlok® 0763100088 FIG MBV-9517 Fixed Orifice Double Regulating Valve, 1-1/2 in Nominal, NPT End Style, 300 psi Pressure, Brass Body, Import |
/
|
|
|
|
|
VRW95172 | Gruvlok® 0763100104 Gruvlok® 0763100104 FIG MBV-9517 Fixed Orifice Double Regulating Valve, 2 in Nominal, NPT End Style, 300 psi Pressure, Brass Body, Import |
/
|
|
Fixed orifice DZR brass double regulating valve. Intended for HVAC use. Threaded F/F (ASME B1.20.1-NPT) or solder joint ends (ASME B16.22). Design according to BS7350. Tolerance on nominal Cvs +3% (test according to BS7350). 300 WOG (Maximum 300 psi up to 160 deg F. Maximum 150 psi at 260 deg F).
Gruvlok® Double Regulating Valve, Fixed Orifice, Series: FIG MBV-9517, 1-1/4 in Nominal, NPT End Style, 300 psi Working Pressure, 300 lb WOG Pressure Class, 160 deg F, 8.56 to 19.81 gpm Flow Rate, Handwheel Actuator, Brass Body, EPDM Perox Softgoods, Import
| Domestic/Import | : | Import |
| End Style | : | FNPT |
| Item Type | : | Double Regulating Valve |
| Material | : | Brass/Bronze |
| Media | : | Water |
| Nominal/Diameter Size | : | 1-1/4 in |
| Pressure Rating | : | 300 psi |
| Series | : | MBV-9517 |
| Softgoods Material | : | PTFE |
| Trim Material | : | Brass Stem |
| Type | : | Fixed Orifice |
With test points
