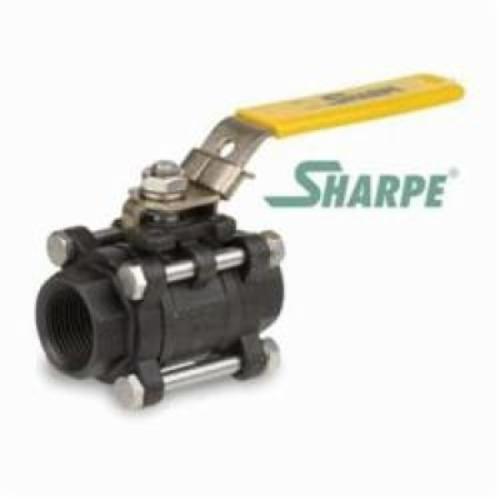

Sharpe® Ball Valve, 3-Piece, Series: 53034, Socket Welded End Style, 1000 psi Pressure, 0 to 450 deg F, Full Port, Lever Operated Actuator, 316 Stainless Steel Ball, Carbon Steel Body, 316 Stainless Steel Stem and RTFE Seat Trim, PTFE Softgoods
Sharpe® Ball Valve, 3-Piece, Series: 53034, Socket Welded End Style, 1000 psi Pressure, 0 to 450 deg F, Full Port, Lever Operated Actuator, 316 Stainless Steel Ball, Carbon Steel Body, 316 Stainless Steel Stem and RTFE Seat Trim, PTFE Softgoods
| Compare (0) selected | Item | Properties | Quantity | Price / UOM | Availability |
|---|---|---|---|---|---|
|
VS53034SW1/2 |
ItemType: Ball Valve-Socket Welded 3-Piece Nominal/DiameterSize: 1/2 in Material: CPVC EndStyle: Socket Weld BallMaterial: 316 Stainless Steel ActuatorType: Lever Handle SoftgoodsMaterial: PTFE Type: 3-Piece TrimMaterial: 316 Stainless Steel Stem and RTFE Seat InlettoOutletLength: 2.83 in Domestic/Import: Import PortType: Full Series: 53034 ToptoInletCenter: 2.36 in OrificeSize: 0.86 in TemperatureRating: 0 to 450 deg f Sharpe® SV53034SW004 Sharpe® SV53034SW004 53034 3-Piece Ball Valve With Mounting Pad, 1/2 in Nominal, Socket Welded End Style, Carbon Steel Body, Full Port, PTFE Softgoods |
/
|
|
|
|
|
VS53034SW3/4 |
ItemType: Ball Valve-Socket Welded 3-Piece Nominal/DiameterSize: 3/4 in Material: Carbon Steel EndStyle: Socket Weld BallMaterial: 316 Stainless Steel ActuatorType: Lever Handle SoftgoodsMaterial: PTFE Type: 3-Piece TrimMaterial: 316 Stainless Steel Stem and RTFE Seat InlettoOutletLength: 3.34 in Domestic/Import: Import PortType: Full Series: 53034 ToptoInletCenter: 2.47 in OrificeSize: 1.07 in TemperatureRating: 0 to 450 deg f Sharpe® SV53034SW006 Sharpe® SV53034SW006 53034 3-Piece Ball Valve With Mounting Pad, 3/4 in Nominal, Socket Welded End Style, Carbon Steel Body, Full Port, PTFE Softgoods |
/
|
|
|
|
|
VS53034SW1 |
ItemType: Ball Valve-Socket Welded 3-Piece Nominal/DiameterSize: 1 in Material: Carbon Steel EndStyle: Socket Weld BallMaterial: 316 Stainless Steel ActuatorType: Lever Handle SoftgoodsMaterial: PTFE Type: 3-Piece TrimMaterial: 316 Stainless Steel Stem and RTFE Seat InlettoOutletLength: 3.62 in Domestic/Import: Import PortType: Full Series: 53034 ToptoInletCenter: 2.81 in OrificeSize: 1.33 in TemperatureRating: 0 to 450 deg f Sharpe® SV53034SW010 Sharpe® SV53034SW010 53034 3-Piece Ball Valve With Mounting Pad, 1 in Nominal, Socket Welded End Style, Carbon Steel Body, Full Port, PTFE Softgoods |
/
|
|
|
|
|
VS53034SW11/4 |
ItemType: Ball Valve-Socket Welded 3-Piece Nominal/DiameterSize: 1-1/4 in Material: Carbon Steel EndStyle: Socket Weld BallMaterial: 316 Stainless Steel ActuatorType: Lever Handle SoftgoodsMaterial: PTFE Type: 3-Piece TrimMaterial: 316 Stainless Steel Stem and RTFE Seat InlettoOutletLength: 4.33 in Domestic/Import: Import PortType: Full Series: 53034 ToptoInletCenter: 3.08 in OrificeSize: 1.68 in TemperatureRating: 0 to 450 deg f Sharpe® SV53034SW012 Sharpe® SV53034SW012 53034 3-Piece Ball Valve With Mounting Pad, 1-1/4 in Nominal, Socket Welded End Style, Carbon Steel Body, Full Port, PTFE Softgoods |
/
|
|
|
|
|
VS53034SW11/2 |
ItemType: Ball Valve-Socket Welded 3-Piece Nominal/DiameterSize: 1-1/2 in Material: Carbon Steel EndStyle: Socket Weld BallMaterial: 316 Stainless Steel ActuatorType: Lever Handle SoftgoodsMaterial: PTFE Type: 3-Piece TrimMaterial: 316 Stainless Steel Stem and RTFE Seat InlettoOutletLength: 4.83 in Domestic/Import: Import PortType: Full Series: 53034 ToptoInletCenter: 3.47 in OrificeSize: 1.92 in TemperatureRating: 0 to 450 deg f Sharpe® SV53034SW014 Sharpe® SV53034SW014 53034 3-Piece Ball Valve With Mounting Pad, 1-1/2 in Nominal, Socket Welded End Style, Carbon Steel Body, Full Port, PTFE Softgoods |
/
|
|
|
|
|
VS53034SW2 |
ItemType: Ball Valve-Socket Welded 3-Piece Nominal/DiameterSize: 2 in Material: Carbon Steel EndStyle: Socket Weld BallMaterial: 316 Stainless Steel ActuatorType: Lever Handle SoftgoodsMaterial: PTFE Type: 3-Piece TrimMaterial: 316 Stainless Steel Stem and RTFE Seat InlettoOutletLength: 5.58 in Domestic/Import: Import PortType: Full Series: 53034 ToptoInletCenter: 3.82 in OrificeSize: 2.41 in TemperatureRating: 0 to 450 deg f Sharpe® SV53034SW020 Sharpe® SV53034SW020 53034 3-Piece Ball Valve With Mounting Pad, 2 in Nominal, Socket Welded End Style, Carbon Steel Body, Full Port, PTFE Softgoods |
/
|
|
Sharpe® Ball Valve, 3-Piece, Series: 53034, 1/2 in Nominal, Socket Welded End Style, 1000 psi Pressure, 0 to 450 deg F, Full Port, 0.86 in Orifice, Lever Operated Actuator, 316 Stainless Steel Ball, 2.83 in Inlet to Outlet Length, 2.36 in Top to Inlet Center, Carbon Steel Body, 316 Stainless Steel Stem and RTFE Seat Trim, PTFE Softgoods
| Actuator Type | : | Lever Handle |
| Ball Material | : | 316 Stainless Steel |
| Domestic/Import | : | Import |
| End Style | : | Socket Weld |
| Inlet to Outlet Length | : | 2.83 in |
| Item Type | : | Ball Valve-Socket Welded 3-Piece |
| Material | : | CPVC |
| Nominal/Diameter Size | : | 1/2 in |
| Orifice Size | : | 0.86 in |
| Port Type | : | Full |
| Pressure Rating | : | 1000 psig CWP |
| Series | : | 53034 |
| Softgoods Material | : | PTFE |
| Temperature Rating | : | 0 to 450 deg f |
| Top to Inlet Center | : | 2.36 in |
| Trim Material | : | 316 Stainless Steel Stem and RTFE Seat |
| Type | : | 3-Piece |
