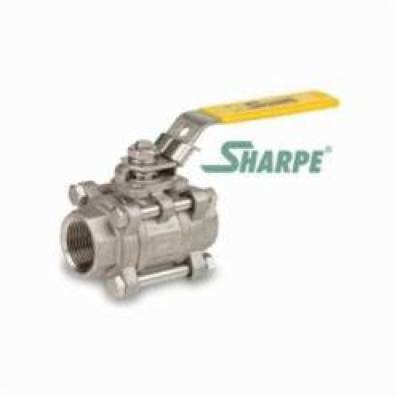

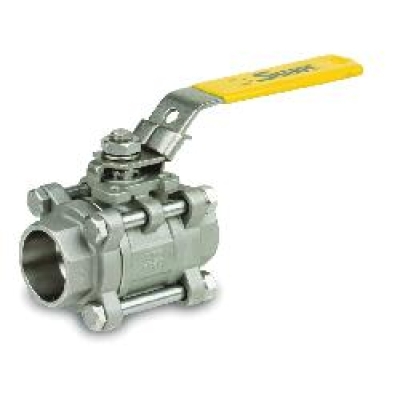

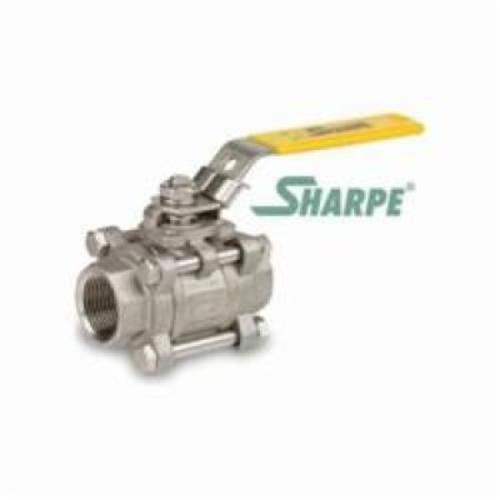

Sharpe® SV53036SW53036 3-Piece Ball Valve With Mounting Pad, Socket Welded End Style, 316 Stainless Steel Body, Full Port, PTFE Softgoods
Sharpe® SV53036SW53036 3-Piece Ball Valve With Mounting Pad, Socket Welded End Style, 316 Stainless Steel Body, Full Port, PTFE Softgoods
| Compare (0) selected | Item | Properties | Quantity | Price / UOM | Availability |
|---|---|---|---|---|---|
|
VS53036SW1 |
ItemType: Ball Valve-Socket Welded 3-Piece Nominal/DiameterSize: 1 in Material: 316/316L EndStyle: Socket Weld Series: 53036 Type: 3-Piece SoftgoodsMaterial: PTFE TrimMaterial: 316 Stainless Steel Stem and RTFE Seat InlettoOutletLength: 3.62 in ToptoInletCenter: 2.81 in PressureRating: 1000 psig CWP BallMaterial: 316 Stainless Steel ActuatorType: Lever Handle Domestic/Import: Import PortType: Full TemperatureRating: 0 to 450 deg f OrificeSize: 1.33 in Sharpe® SV53036SW010 Sharpe® SV53036SW010 53036 3-Piece Ball Valve With Mounting Pad, 1 in Nominal, Socket Welded End Style, 316 Stainless Steel Body, Full Port, PTFE Softgoods |
/
|
|
|
|
|
VS53036SW1/2 |
ItemType: Ball Valve-Socket Welded 3-Piece Nominal/DiameterSize: 1/2 in Material: 316/316L EndStyle: Socket Weld Series: 53036 Type: 3-Piece SoftgoodsMaterial: PTFE TrimMaterial: 316 Stainless Steel Stem and RTFE Seat InlettoOutletLength: 2.83 in ToptoInletCenter: 2.36 in PressureRating: 1000 psig CWP BallMaterial: 316 Stainless Steel ActuatorType: Lever Handle Domestic/Import: Import PortType: Full TemperatureRating: 0 to 450 deg f OrificeSize: 0.86 in Sharpe® Sharpe® SV53036SW004 53036 3-Piece Ball Valve With Mounting Pad, 1/2 in Nominal, Socket Welded End Style, 316 Stainless Steel Body, Full Port, PTFE Softgoods |
/
|
|
|
|
|
VS53036SW11/2 |
ItemType: Ball Valve-Socket Welded 3-Piece Nominal/DiameterSize: 1-1/2 in Material: 316/316L Stainless Steel EndStyle: Socket Weld Series: 53036 Type: 3-Piece SoftgoodsMaterial: PTFE TrimMaterial: 316 Stainless Steel Stem and RTFE Seat InlettoOutletLength: 4.83 in ToptoInletCenter: 3.47 in PressureRating: 1000 psig CWP BallMaterial: 316 Stainless Steel ActuatorType: Lever Handle Domestic/Import: Import PortType: Full TemperatureRating: 0 to 450 deg f OrificeSize: 1.92 in Sharpe® SV53036SW014 Sharpe® SV53036SW014 53036 3-Piece Ball Valve With Mounting Pad, 1-1/2 in Nominal, Socket Welded End Style, 316 Stainless Steel Body, Full Port, PTFE Softgoods |
/
|
|
|
|
|
VS53036SW2 |
ItemType: Ball Valve-Socket Welded 3-Piece Nominal/DiameterSize: 2 in Material: 316/316L Stainless Steel EndStyle: Socket Weld Series: 53036 Type: 3-Piece SoftgoodsMaterial: PTFE TrimMaterial: 316 Stainless Steel Stem and RTFE Seat InlettoOutletLength: 5.58 in ToptoInletCenter: 3.82 in PressureRating: 1000 psig CWP BallMaterial: 316 Stainless Steel ActuatorType: Lever Handle Domestic/Import: Import PortType: Full TemperatureRating: 0 to 450 deg f OrificeSize: 2.41 in Sharpe® SV53036SW020 Sharpe® SV53036SW020 53036 3-Piece Ball Valve With Mounting Pad, 2 in Nominal, Socket Welded End Style, 316 Stainless Steel Body, Full Port, PTFE Softgoods |
/
|
|
|
|
VS53036SW11/4 |
ItemType: Ball Valve-Socket Welded 3-Piece Nominal/DiameterSize: 1-1/4 in Material: 316/316L Stainless Steel EndStyle: Socket Weld Series: 53036 Type: 3-Piece SoftgoodsMaterial: PTFE TrimMaterial: 316 Stainless Steel Stem and RTFE Seat InlettoOutletLength: 4.33 in ToptoInletCenter: 3.8 in PressureRating: 1000 psig CWP BallMaterial: 316 Stainless Steel ActuatorType: Lever Handle Domestic/Import: Import PortType: Full TemperatureRating: 0 to 450 deg f OrificeSize: 1.68 in Sharpe® SV53036SW012 Sharpe® SV53036SW012 53036 3-Piece Ball Valve, 1-1/4 in Nominal, Socket Welded End Style, 316 Stainless Steel Body, Full Port, PTFE Softgoods |
/
|
|
|
|
|
VS53036SW3/4 |
ItemType: Ball Valve-Socket Welded 3-Piece Nominal/DiameterSize: 3/4 in Material: 316/316L Stainless Steel EndStyle: Socket Weld Series: 53036 Type: 3-Piece SoftgoodsMaterial: PTFE TrimMaterial: 316 Stainless Steel Stem and RTFE Seat InlettoOutletLength: 3.34 in ToptoInletCenter: 2.47 in PressureRating: 1000 psig CWP BallMaterial: 316 Stainless Steel ActuatorType: Lever Handle Domestic/Import: Import PortType: Full TemperatureRating: 0 to 450 deg f OrificeSize: 1.07 in Sharpe® SV53036SW006 Sharpe® SV53036SW006 53036 3-Piece Ball Valve With Mounting Pad, 3/4 in Nominal, Socket Welded End Style, 316 Stainless Steel Body, Full Port, PTFE Softgoods |
/
|
|
Sharpe® Ball Valve, 3-Piece, Series: 53036, 1/2 in Nominal, Socket Welded End Style, 1000 psi Pressure, 0 to 450 deg F, Full Port, 0.86 in Orifice, Lever Operated Actuator, 316 Stainless Steel Ball, 2.83 in Inlet to Outlet Length, 2.36 in Top to Inlet Center, 316 Stainless Steel Body, 316 Stainless Steel Stem and RTFE Seat Trim, PTFE Softgoods
| Actuator Type | : | Lever Handle |
| Ball Material | : | 316 Stainless Steel |
| Domestic/Import | : | Import |
| End Style | : | Socket Weld |
| Inlet to Outlet Length | : | 2.83 in |
| Item Type | : | Ball Valve-Socket Welded 3-Piece |
| Material | : | 316/316L |
| Nominal/Diameter Size | : | 1/2 in |
| Orifice Size | : | 0.86 in |
| Port Type | : | Full |
| Pressure Rating | : | 1000 psig CWP |
| Series | : | 53036 |
| Softgoods Material | : | PTFE |
| Temperature Rating | : | 0 to 450 deg f |
| Top to Inlet Center | : | 2.36 in |
| Trim Material | : | 316 Stainless Steel Stem and RTFE Seat |
| Type | : | 3-Piece |
