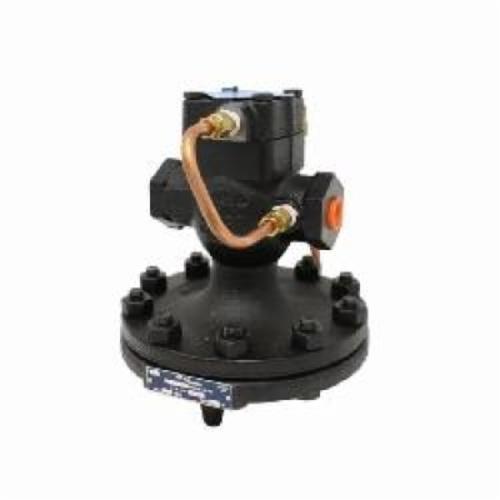

Spirax Sarco 25P Pilot Operated Pressure Reducing Valve 250 psi
Spirax Sarco 25P Pilot Operated Pressure Reducing Valve, NPT, 250 psi, 450 deg F
| Compare (0) selected | Item | Properties | Quantity | Price / UOM | Availability |
|---|---|---|---|---|---|
|
VS25P-T1/2 |
Nominal/DiameterSize: 1/2 in EndStyle: FNPT Domestic/Import: Domestic Type: Pilot Operated Series: 25P PressureRating: 250 psi TemperatureRating: 450 deg F Media: Steam Spirax Sarco 55222 Spirax Sarco 55222, 25P Pilot Operated Pressure Reducing Valve, 1/2 in, NPT, 250 psi, 450 deg F |
/
|
|
|
|
|
VS25P-T3/4 |
Nominal/DiameterSize: 3/4 in EndStyle: FNPT Domestic/Import: Domestic Type: Pilot Operated Series: 25P PressureRating: 250 psi TemperatureRating: 450 deg F Media: Steam Spirax Sarco 55223 Spirax Sarco 55223, 25P Pilot Operated Pressure Reducing Valve, 3/4 in, NPT, 250 psi, 450 deg F |
/
|
|
|
|
|
VS25P-T1 |
Nominal/DiameterSize: 1 in EndStyle: FNPT Domestic/Import: Domestic Type: Pilot Operated Series: 25P PressureRating: 250 psi TemperatureRating: 450 deg F Media: Steam Spirax Sarco 55224 Spirax Sarco 55224, 25P Pilot Operated Pressure Reducing Main Valve, 1 in, NPT, 250 psi, 450 deg F |
/
|
|
|
|
|
VS25P-T11/2 |
Nominal/DiameterSize: 1-1/2 in EndStyle: FNPT Domestic/Import: Domestic Type: Pilot Operated Series: 25P PressureRating: 250 psi TemperatureRating: 450 deg F Media: Steam Spirax Sarco 55226 Spirax Sarco 55226, 25P Pilot Operated Pressure Reducing Main Valve, 1-1/2 in, NPT, 250 psi, 450 deg F |
/
|
|
|
|
|
VS25P-T2 |
Nominal/DiameterSize: 1-1/4 in EndStyle: FNPT Domestic/Import: Domestic Type: Pilot Operated Series: 25P PressureRating: 250 psi TemperatureRating: 450 deg F Media: Steam Spirax Sarco 55225 Spirax Sarco 55225, 25P Pilot Operated Pressure Reducing Main Valve, 1-1/4 in, NPT, 250 psi, 450 deg F |
/
|
|
The Spirax Sarco® 25-Series regulators are a versatile family of self-acting pressure regulators with control pilots and interchangeable main valves for most steam applications. Options include pressure reduction (25P), combined pressure reduction with electrical on/off override (25PE), pressure reduction with air loaded pilot (25PA), and as a back pressure regulator (25BP). Designed with the user in mind, the 25-Series offers versatility and simplicity. Color coded, interchangeable springs allow quick and easy change of downstream pressure range eliminating the need to isolate the valve or break the steam line.
Spirax Sarco Pressure Reducing Valve, Pilot Operated, 1/2 in Nominal, NPT, 250 psi, 450 deg F, Cast Iron Body, Media: Steam
| Domestic/Import | : | Domestic |
| End Style | : | FNPT |
| Item Type | : | Pressure Reducing Valve |
| Material | : | Cast Iron |
| Media | : | Steam |
| Nominal/Diameter Size | : | 1/2 in |
| Pressure Rating | : | 250 psi |
| Series | : | 25P |
| Temperature Rating | : | 450 deg F |
| Type | : | Pilot Operated |
