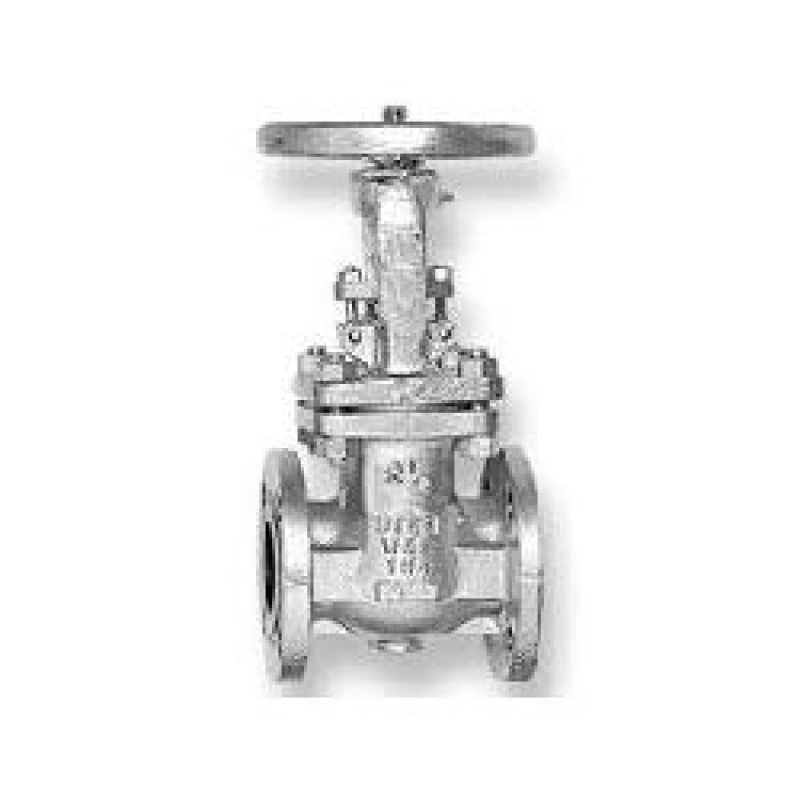

CRANE® Gate Valve, Series: 47 Series, Flanged End Style, 285 psi Pressure, 150 lb Pressure Class, -20 to 100 deg F, Handwheel Actuator, Cast Steel Body, 410 Stainless Steel Trim, Graphite Packing Softgoods
CRANE® Gate Valve, Series: 47 Series, Flanged End Style, 285 psi Pressure, 150 lb Pressure Class, -20 to 100 deg F, Handwheel Actuator, Cast Steel Body, 410 Stainless Steel Trim, Graphite Packing Softgoods
| Compare (0) selected | Item | Properties | Quantity | Price / UOM | Availability |
|---|---|---|---|---|---|
|
VC47XUF2 |
ItemType: Flanged Gate Valve Nominal/DiameterSize: 2 in Material: Cast Steel EndStyle: Flanged ActuatorType: Handwheel Type: Standard PressureClass: 150 lb Domestic/Import: Import Series: 47 TrimMaterial: 410 Stainless Steel InlettoOutletLength: 7 in SoftgoodsMaterial: Graphite Packing CRANE® 47XUF-2 CRANE® 47XUF-2 47 Series Gate Valve, 2 in Nominal, Flanged End Style, 150 lb, Cast Steel Body, Handwheel Actuator |
/
|
|
|
|
|
VC47XUF21/2 |
ItemType: Flanged Gate Valve Nominal/DiameterSize: 2-1/2 in Material: Cast Steel EndStyle: Flanged ActuatorType: Handwheel Type: Standard PressureClass: 150 lb Domestic/Import: Import Series: 47 TrimMaterial: 410 Stainless Steel InlettoOutletLength: 7-1/2 in SoftgoodsMaterial: Graphite Packing CRANE® 47XUF-2-1/2 CRANE® 47XUF-2-1/2 47 Series Gate Valve, 2-1/2 in Nominal, Flanged End Style, 150 lb, Cast Steel Body, Handwheel Actuator |
/
|
|
|
|
|
VC47XUF3 |
ItemType: Flanged Gate Valve Nominal/DiameterSize: 3 in Material: Cast Steel EndStyle: Flanged ActuatorType: Handwheel Type: Standard PressureClass: 150 lb Domestic/Import: Import Series: 47 TrimMaterial: 410 Stainless Steel InlettoOutletLength: 8 in SoftgoodsMaterial: Graphite Packing CRANE® 47XUF-3 CRANE® 47XUF-3 47 Series Gate Valve, 3 in Nominal, Flanged End Style, 150 lb, Cast Steel Body, Handwheel Actuator |
/
|
|
|
|
|
VC47XUF4 |
ItemType: Flanged Gate Valve Nominal/DiameterSize: 4 in Material: Cast Steel EndStyle: Flanged ActuatorType: Handwheel Type: Standard PressureClass: 150 lb Domestic/Import: Import Series: 47 TrimMaterial: 410 Stainless Steel InlettoOutletLength: 9 in SoftgoodsMaterial: Graphite Packing CRANE® 47XUF-4 CRANE® 47XUF-4 47 Series Gate Valve, 4 in Nominal, Flanged End Style, 150 lb, Cast Steel Body, Handwheel Actuator |
/
|
|
|
|
|
VC47XUF6 |
ItemType: Flanged Gate Valve Nominal/DiameterSize: 6 in Material: Cast Steel EndStyle: Flanged ActuatorType: Handwheel Type: Standard PressureClass: 150 lb Domestic/Import: Import Series: 47 TrimMaterial: 410 Stainless Steel InlettoOutletLength: 10-1/2 in SoftgoodsMaterial: Graphite Packing CRANE® 47XUF-6 CRANE® 47XUF-6 47 Series Gate Valve, 6 in Nominal, Flanged End Style, 150 lb, Cast Steel Body, Handwheel Actuator |
/
|
|
|
|
|
VC47XUF8 |
ItemType: Flanged Gate Valve Nominal/DiameterSize: 8 in Material: Cast Steel EndStyle: Flanged ActuatorType: Handwheel Type: Standard PressureClass: 150 lb Domestic/Import: Import Series: 47 TrimMaterial: 410 Stainless Steel InlettoOutletLength: 11-1/2 in SoftgoodsMaterial: Graphite Packing CRANE® 47XUF-8 CRANE® 47XUF-8 47 Series Gate Valve, 8 in Nominal, Flanged End Style, 150 lb, Cast Steel Body, Handwheel Actuator |
/
|
|
|
|
|
VC47XUF10 |
ItemType: Flanged Gate Valve Nominal/DiameterSize: 10 in Material: Cast Steel EndStyle: Flanged ActuatorType: Handwheel Type: Standard PressureClass: 150 lb Domestic/Import: Import Series: 47 TrimMaterial: 410 Stainless Steel InlettoOutletLength: 13 in SoftgoodsMaterial: Graphite Packing CRANE® 47XUF-10 CRANE® 47XUF-10 47 Series Gate Valve, 10 in Nominal, Flanged End Style, 150 lb, Cast Steel Body, Handwheel Actuator |
/
|
|
|
|
|
VC47XUF12 |
ItemType: Flanged Gate Valve Nominal/DiameterSize: 12 in Material: Cast Steel EndStyle: Flanged ActuatorType: Handwheel Type: Standard PressureClass: 150 lb Domestic/Import: Import Series: 47 TrimMaterial: 410 Stainless Steel InlettoOutletLength: 14 SoftgoodsMaterial: Graphite Packing CRANE® 47XUF-12 CRANE® 47XUF-12 47 Series Gate Valve, 12 in Nominal, Flanged End Style, 150 lb, Cast Steel Body, Handwheel Actuator |
/
|
|
CRANE® cast steel gate valves offer the ultimate in dependable service for steam, air, gas, oil, oil vapor, and high pressure installations. All have straight-through ports to assure minimum turbulence, erosion, and resistance to flow. They are available in a wide variety of trims.
CRANE® Gate Valve, Series: 47 Series, 10 in Nominal, Flanged End Style, 285 psi Pressure, 150 lb Pressure Class, -20 to 100 deg F, Handwheel Actuator, 13 in Inlet to Outlet Length, 47 in Top to Inlet Center, Cast Steel Body, 410 Stainless Steel Trim, Graphite Packing Softgoods, 16 in Diameter Hand Wheel
| Actuator Type | : | Handwheel |
| Domestic/Import | : | Import |
| End Style | : | Flanged |
| Inlet to Outlet Length | : | 13 in |
| Item Type | : | Flanged Gate Valve |
| Material | : | Cast Steel |
| Nominal/Diameter Size | : | 10 in |
| Pressure Class | : | 150 lb |
| Pressure Rating | : | 285 psi |
| Series | : | 47 |
| Softgoods Material | : | Graphite Packing |
| Trim Material | : | 410 Stainless Steel |
| Type | : | Standard |
