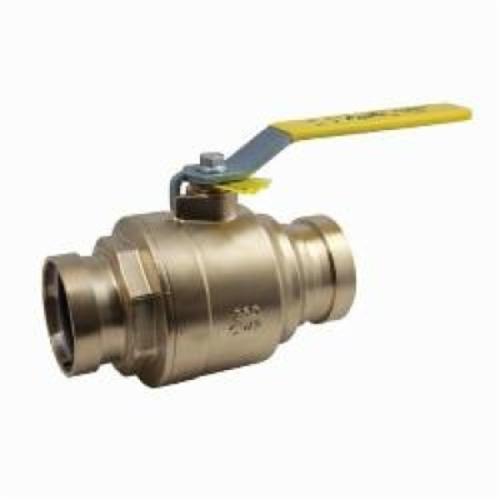

Apollo™ APOLLOXPRESS® 77V 2-Piece Heavy Pattern Ball Valve, Press End Style, Forged Brass Body, Full Port, EPDM Softgoods, Domestic
Apollo™ APOLLOXPRESS® 77V 2-Piece Heavy Pattern Ball Valve, Press End Style, Forged Brass Body, Full Port, EPDM Softgoods, Domestic
| Compare (0) selected | Item | Properties | Quantity | Price / UOM | Availability |
|---|---|---|---|---|---|
|
VAP77V10901 |
ItemType: Ball Valve-Press Nominal/DiameterSize: 2-1/2 in PressureRating: 250 psig CWP Type: 2-Piece Heavy Pattern InlettoOutletLength: 8.04 in PortType: Full SoftgoodsMaterial: EPDM BallMaterial: Chrome Plated Brass EndStyle: Press Domestic/Import: Domestic ActuatorType: Lever Handle Material: Brass/Bronze TrimMaterial: Forged Brass Stem and RPTFE Seat Series: 77V TemperatureRating: 0 to 250 deg F ToptoInletCenter: 4.13 in Media: Gas/Oil/Steam/Water Apollo™ 77V-109-01 Apollo™ APOLLOXPRESS® 77V-109-01 2-Piece Heavy Pattern Ball Valve, 2-1/2 in Nominal, Press End Style, Forged Brass Body, Full Port, EPDM Softgoods, Domestic |
/
|
|
|
|
|
VAP77V10001 |
ItemType: Ball Valve-Press Nominal/DiameterSize: 3 in PressureRating: 250 psig CWP Type: 2-Piece Heavy Pattern InlettoOutletLength: 9.45 in PortType: Full SoftgoodsMaterial: EPDM BallMaterial: Chrome Plated Brass EndStyle: Press Domestic/Import: Domestic ActuatorType: Lever Handle Material: Brass/Bronze TrimMaterial: Forged Brass Stem and RPTFE Seat Series: 77V TemperatureRating: 0 to 250 deg F ToptoInletCenter: 5.03 in Media: Gas/Oil/Steam/Water Apollo™ 77V-100-01 Apollo™ APOLLOXPRESS® 77V-100-01 2-Piece Heavy Pattern Ball Valve, 3 in Nominal, Press End Style, Forged Brass Body, Full Port, EPDM Softgoods, Domestic |
/
|
|
The APOLLOXPRESS® 77V series ball valve is ideal for installation in heating, cooling and nonpotable plumbing. Features Leak Before Press® technology and 250 psig maximum working pressure. Proudly made in the USA.
Apollo™ APOLLOXPRESS® Ball Valve, 2-Piece Heavy Pattern, Series: 77V, 2-1/2 in Nominal, Press, 250 psig CWP, 0 to 250 deg F, Full Port, Standard Lever Actuator, Chrome Plated Brass Ball, 8.04 in Inlet to Outlet Length, 4.13 in Top to Inlet Center, Forged Brass Body, Forged Brass Stem and RPTFE Seat Trim, EPDM, Domestic
| Actuator Type | : | Lever Handle |
| Ball Material | : | Chrome Plated Brass |
| Domestic/Import | : | Domestic |
| End Style | : | Press |
| Inlet to Outlet Length | : | 8.04 in |
| Item Type | : | Ball Valve-Press |
| Material | : | Brass/Bronze |
| Media | : | Gas/Oil/Steam/Water |
| Nominal/Diameter Size | : | 2-1/2 in |
| Port Type | : | Full |
| Pressure Rating | : | 250 psig CWP |
| Series | : | 77V |
| Softgoods Material | : | EPDM |
| Temperature Rating | : | 0 to 250 deg F |
| Top to Inlet Center | : | 4.13 in |
| Trim Material | : | Forged Brass Stem and RPTFE Seat |
| Type | : | 2-Piece Heavy Pattern |
