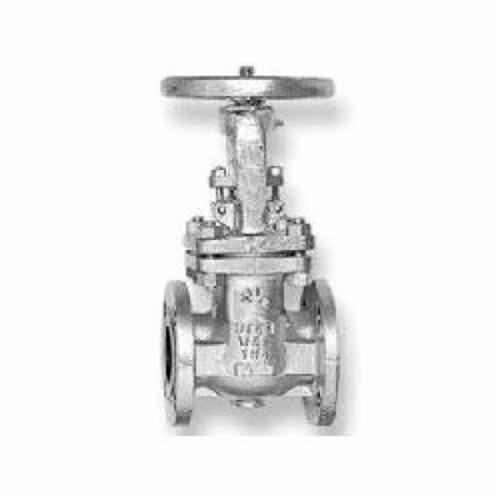

CRANE® Gate Valve, Series: 76 Series, Flanged End Style, 1480 psi Pressure, 600 lb Pressure Class, -20 to 100 deg F, Handwheel Actuator, Cast Steel Body, 410 Stainless Steel Trim, Graphite Packing Softgoods

Flanged Gate Valve
Nominal/Diameter Size
- 2 in 2 in
  Nominal/Diameter Size
  2+in
- 3 in 3 in
  Nominal/Diameter Size
  3+in
- 4 in 4 in
  Nominal/Diameter Size
  4+in
- 6 in 6 in
  Nominal/Diameter Size
  6+in
Cast Steel
Flanged
Handwheel
Standard
600 lb
Import
76
410 Stainless Steel
Inlet to Outlet Length
- 11-1/2 in 11-1/2 in
  Inlet to Outlet Length
  11-1%2F2+in
- 14 in 14 in
  Inlet to Outlet Length
  14+in
- 17 in 17 in
  Inlet to Outlet Length
  17+in
- 22 in 22 in
  Inlet to Outlet Length
  22+in
Steam,Gas,General
Graphite Packing

Compare (0) selected	Item	Properties	Price / UOM
VC76XUF2	VC76XUF2	ItemType: Flanged Gate Valve Nominal/DiameterSize: 2 in Material: Cast Steel EndStyle: Flanged ActuatorType: Handwheel Type: Standard PressureClass: 600 lb Domestic/Import: Import Series: 76 TrimMaterial: 410 Stainless Steel InlettoOutletLength: 11-1/2 in Media: Steam,Gas,General SoftgoodsMaterial: Graphite Packing CRANE® 76XUF-2 CRANE® 76XUF-2 76 Series Gate Valve, 2 in Nominal, Flanged End Style, 600 lb, Cast Steel Body, Handwheel Actuator	/	Add to cart Add to product groups
VC76XUF3	VC76XUF3	ItemType: Flanged Gate Valve Nominal/DiameterSize: 3 in Material: Cast Steel EndStyle: Flanged ActuatorType: Handwheel Type: Standard PressureClass: 600 lb Domestic/Import: Import Series: 76 TrimMaterial: 410 Stainless Steel InlettoOutletLength: 14 in Media: Steam,Gas,General SoftgoodsMaterial: Graphite Packing CRANE® 76XUF-3 CRANE® 76XUF-3 76 Series Gate Valve, 3 in Nominal, Flanged End Style, 600 lb, Cast Steel Body, Handwheel Actuator	/	Add to cart Add to product groups
VC76XUF4	VC76XUF4	ItemType: Flanged Gate Valve Nominal/DiameterSize: 4 in Material: Cast Steel EndStyle: Flanged ActuatorType: Handwheel Type: Standard PressureClass: 600 lb Domestic/Import: Import Series: 76 TrimMaterial: 410 Stainless Steel InlettoOutletLength: 17 in Media: Steam,Gas,General SoftgoodsMaterial: Graphite Packing CRANE® 76XUF-4 CRANE® 76XUF-4 76 Series Gate Valve, 4 in Nominal, Flanged End Style, 600 lb, Cast Steel Body, Handwheel Actuator	/	Add to cart Add to product groups
VC76XUF6	VC76XUF6	ItemType: Flanged Gate Valve Nominal/DiameterSize: 6 in Material: Cast Steel EndStyle: Flanged ActuatorType: Handwheel Type: Standard PressureClass: 600 lb Domestic/Import: Import Series: 76 TrimMaterial: 410 Stainless Steel InlettoOutletLength: 22 in Media: Steam,Gas,General SoftgoodsMaterial: Graphite Packing CRANE® 76XUF-6 CRANE® 76XUF-6 76 Series Gate Valve, 6 in Nominal, Flanged End Style, 600 lb, Cast Steel Body, Handwheel Actuator	/	Add to cart Add to product groups

Description
Features
Specifications
Guides & Manuals

CRANE® cast steel gate valves offer the ultimate in dependable service for steam, air, gas, oil, oil vapor, and high pressure installations. All have straight-through ports to assure minimum turbulence, erosion, and resistance to flow. They are available in a wide variety of trims.

CRANE® Gate Valve, Series: 76 Series, 2 in Nominal, Flanged End Style, 1480 psi Pressure, 600 lb Pressure Class, -20 to 100 deg F, Handwheel Actuator, 11-1/2 in Inlet to Outlet Length, 17 in Top to Inlet Center, Cast Steel Body, 410 Stainless Steel Trim, Graphite Packing Softgoods, 10 in Diameter Hand Wheel

Actuator Type	:	Handwheel
Domestic/Import	:	Import
End Style	:	Flanged
Inlet to Outlet Length	:	11-1/2 in
Item Type	:	Flanged Gate Valve
Material	:	Cast Steel
Media	:	Steam,Gas,General
Nominal/Diameter Size	:	2 in
Pressure Class	:	600 lb
Pressure Rating	:	1480 psi
Series	:	76
Softgoods Material	:	Graphite Packing
Trim Material	:	410 Stainless Steel
Type	:	Standard
