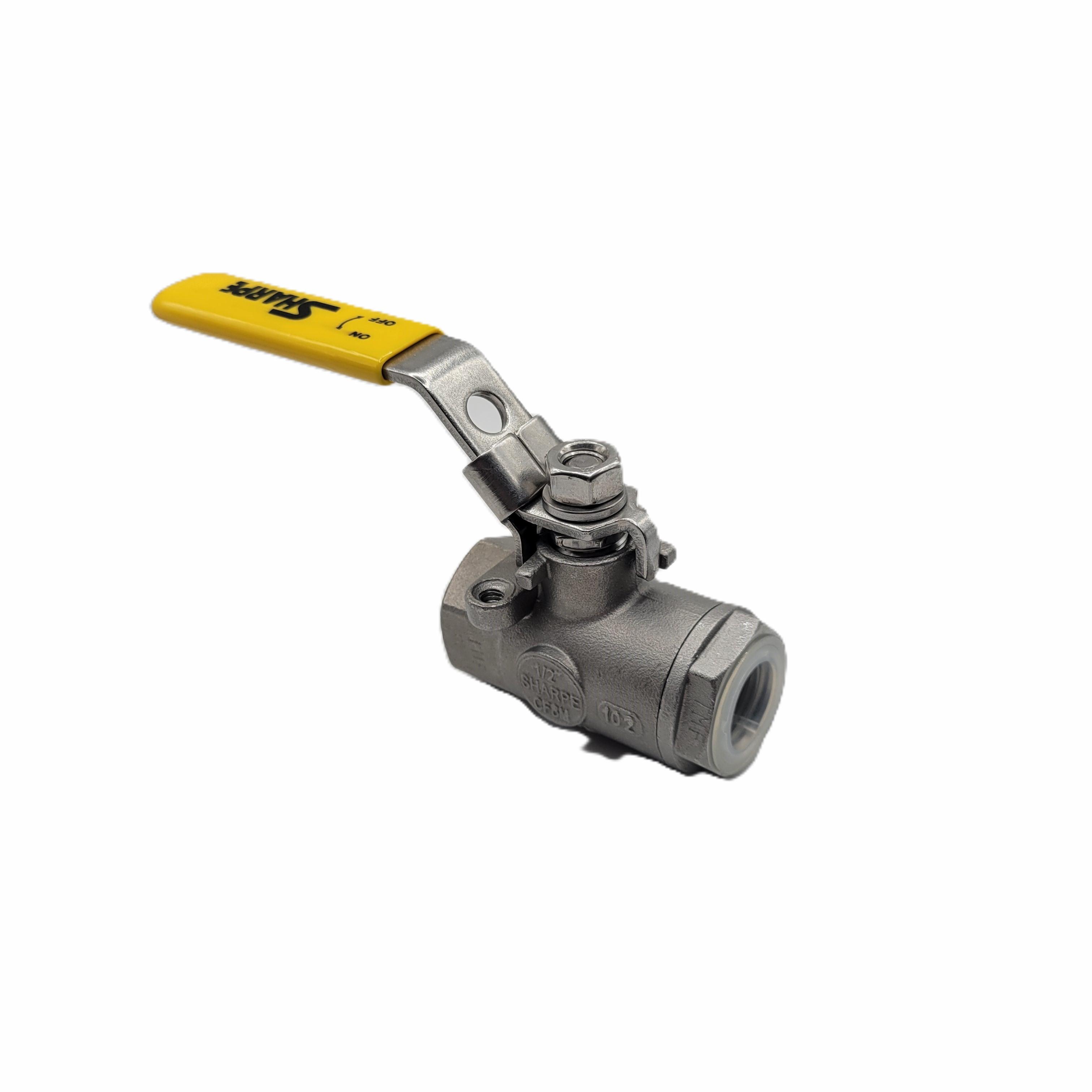

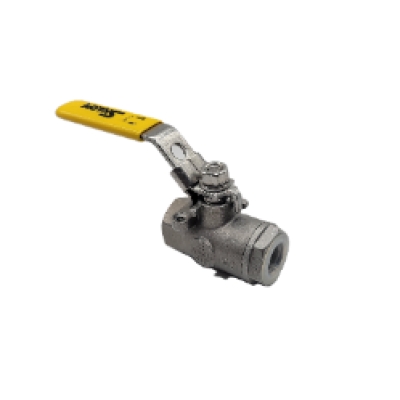

Sharpe® 54576 2-Piece Ball Valve, FNPT End Style, 316 Stainless Steel Body, Standard Port, PTFE Softgoods
Sharpe® 54576 2-Piece Ball Valve, FNPT End Style, 316 Stainless Steel Body, Standard Port, PTFE Softgoods
| Compare (0) selected | Item | Properties | Quantity | Price / UOM | Availability |
|---|---|---|---|---|---|
|
VS545761/2 |
ItemType: Ball Valve-Threaded 2 Piece OrificeSize: 1/2 Material: 316/316L Stainless Steel EndStyle: FNPT BallMaterial: 316 Stainless Steel ActuatorType: Lever Handle SoftgoodsMaterial: PTFE Type: 2-Piece TrimMaterial: 316 Stainless Steel Stem and RTFE Seat PressureRating: 2000 psig CWP InlettoOutletLength: 2.32 in Domestic/Import: Import PortType: Standard Series: 54576 TemperatureRating: 0 to 450 deg f ToptoInletCenter: 2.13 in Nominal/DiameterSize: 1/2 in Sharpe® SV54576004 Sharpe® SV54576004 54576 2-Piece Ball Valve, 1/2 in Nominal, FNPT End Style, 316 Stainless Steel Body, Standard Port, PTFE Softgoods |
/
|
|
|
|
|
VS545763/4 |
ItemType: Ball Valve-Threaded 2 Piece OrificeSize: 0.69 Material: 316/316L Stainless Steel EndStyle: FNPT BallMaterial: 316 Stainless Steel ActuatorType: Lever Handle SoftgoodsMaterial: PTFE Type: 2-Piece TrimMaterial: 316 Stainless Steel Stem and RTFE Seat PressureRating: 2000 psig CWP InlettoOutletLength: 3.12 in Domestic/Import: Import PortType: Standard Series: 54576 TemperatureRating: 0 to 450 deg f ToptoInletCenter: 2-1/2 in Nominal/DiameterSize: 3/4 in Sharpe® Sharpe® SV54576006 54576 2-Piece Ball Valve, 3/4 in Nominal, FNPT End Style, 316 Stainless Steel Body, Standard Port, PTFE Softgoods |
/
|
|
Sharpe® Ball Valve, 2-Piece, Series: 54576, 3/4 in Nominal, FNPT, 2000 psi, 0 to 450 deg F, Standard Port, 0.69 in Orifice, Lever Operated Actuator, 316 Stainless Steel Ball, 3.12 in Inlet to Outlet Length, 2-1/2 in Top to Inlet Center, 316 Stainless Steel Body, 316 Stainless Steel Stem and RTFE Seat Trim, PTFE
| Actuator Type | : | Lever Handle |
| Ball Material | : | 316 Stainless Steel |
| Domestic/Import | : | Import |
| End Style | : | FNPT |
| Inlet to Outlet Length | : | 3.12 in |
| Item Type | : | Ball Valve-Threaded 2 Piece |
| Material | : | 316/316L Stainless Steel |
| Nominal/Diameter Size | : | 3/4 in |
| Orifice Size | : | 0.69 |
| Port Type | : | Standard |
| Pressure Rating | : | 2000 psig CWP |
| Series | : | 54576 |
| Softgoods Material | : | PTFE |
| Temperature Rating | : | 0 to 450 deg f |
| Top to Inlet Center | : | 2-1/2 in |
| Trim Material | : | 316 Stainless Steel Stem and RTFE Seat |
| Type | : | 2-Piece |
Smith_Cooper_54576B_Specification_Sheet.pdf
