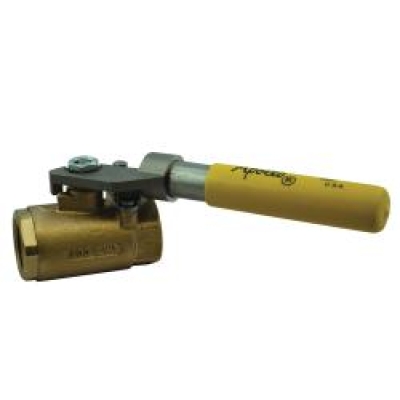

Apollo™ Ball Valve, 2-Piece, Series: 71-500, FNPT End Style, 600 psig CWP Pressure, Standard Port, Spring Return Handle Actuator, Chrome Plated Brass Ball, Bronze Body, 316 Stainless Steel/PTFE Trim, MPTFE Softgoods, Domestic
Apollo™ Ball Valve, 2-Piece, Series: 71-500, FNPT End Style, 600 psig CWP Pressure, Standard Port, Spring Return Handle Actuator, Chrome Plated Brass Ball, Bronze Body, 316 Stainless Steel/PTFE Trim, MPTFE Softgoods, Domestic
| Compare (0) selected | Item | Properties | Quantity | Price / UOM | Availability |
|---|---|---|---|---|---|
|
VAP71503 |
Nominal/DiameterSize: 1/2 in Material: Bronze EndStyle: FNPT BallMaterial: Brass ActuatorType: Handle SoftgoodsMaterial: PTFE/RPTFE Type: 2-Piece Straight TrimMaterial: 316 Stainless Steel PressureRating: 600 psi InlettoOutletLength: 2-1/4 in Domestic/Import: Domestic PortType: Standard Series: 71-500 Series TemperatureRating: -20 to 500 deg F Color: Yellow Apollo™ 7150301 Apollo™ 71-500 Series 7150301 Ball Valve With Spring Return Handle, 1/2 in, FNPT End, Handle, 600 psi Pressure, Brass Ball, Bronze, Domestic |
/
|
|
|
|
VAP7150401 |
ItemType: Ball Valve-Threaded 2 Piece Nominal/DiameterSize: 3/4 in Material: Brass/Bronze EndStyle: FNPT BallMaterial: Chrome Plated Brass ActuatorType: Spring Return Handle SoftgoodsMaterial: MPTFE Type: 2-Piece TrimMaterial: 316 Stainless Steel/PTFE PressureRating: 600 psi CWP Pressure InlettoOutletLength: 3 in Domestic/Import: Domestic PortType: Standard Series: 71-500 Media: Gas/Water Apollo™ 7150401 Apollo™ 7150401 71-500 71-500 2-Piece Ball Valve, 3/4 in Nominal, FNPT End Style, Bronze Body, Standard Port, Domestic |
/
|
|
|
|
|
VAP7150501 |
ItemType: Ball Valve-Threaded 2 Piece Nominal/DiameterSize: 1 in Material: Brass/Bronze EndStyle: FNPT BallMaterial: Chrome Plated Brass ActuatorType: Spring Return Handle SoftgoodsMaterial: MPTFE Type: 2-Piece TrimMaterial: 316 Stainless Steel/PTFE PressureRating: 600 psi CWP Pressure InlettoOutletLength: 3.37 in Domestic/Import: Domestic PortType: Standard Series: 71-500 Media: Gas/Water Apollo™ 7150501 Apollo™ 7150501 71-500 71-500 2-Piece Ball Valve, 1 in Nominal, FNPT End Style, Bronze Body, Standard Port, Domestic |
/
|
|
The Apollo™ 71 Series is a standard port bronze ball valve with direct-mounting pad. It is made from proven ASTM-grade materials for long service satisfaction.
Apollo™ Ball Valve, 2-Piece Straight TYPE, 1/2 in Nominal/Diameter Size, Bronze, FNPT End Style, Brass Ball, Handle Actuator, PTFE/RPTFE Softgoods, 316 Stainless Steel Trim, 600 psi, 2-1/4 in Inlet to Outlet Length, Domestic/Import: Domestic, Standard Port, 71-500 Series, -20 to 500 deg F, Yellow
| Actuator Type | : | Handle |
| Ball Material | : | Brass |
| Color | : | Yellow |
| Domestic/Import | : | Domestic |
| End Style | : | FNPT |
| Inlet to Outlet Length | : | 2-1/4 in |
| Material | : | Bronze |
| Nominal/Diameter Size | : | 1/2 in |
| Port Type | : | Standard |
| Pressure Rating | : | 600 psi |
| Series | : | 71-500 Series |
| Softgoods Material | : | PTFE/RPTFE |
| Temperature Rating | : | -20 to 500 deg F |
| Trim Material | : | 316 Stainless Steel |
| Type | : | 2-Piece Straight |
- Adjustable packing
- Blowout-proof stem design
- RPTFE seats and stuffing box ring
- Chromium plated ball
- Mounting pad for easy actuator attachment
