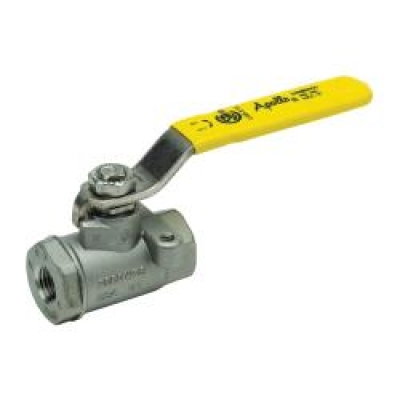

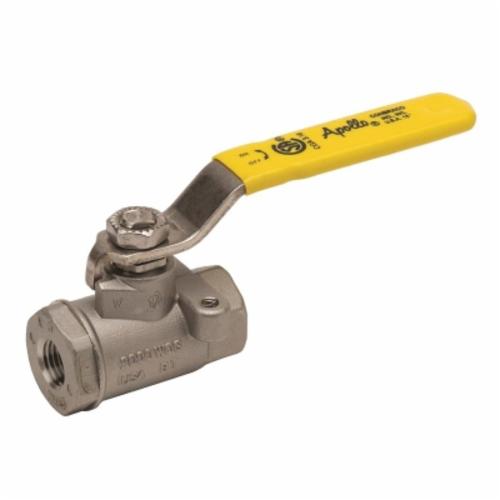

Apollo™ 76-100 Series Ball Valve With Mounting Pad, FNPT End, Lever, 2000 psi Pressure, 316 Stainless Steel Ball, Domestic
Apollo™ Ball Valve, 2-Piece Standard Configuration, Series: 76-100, FNPT End Style, 2000 psig CWP Pressure, Standard Port, Media: Water, Lever Operated Actuator, 316 Stainless Steel Ball, Stainless Steel Body, 316 Stainless Steel/PTFE Trim, MPTFE/PTFE Softgoods, Domestic
| Compare (0) selected | Item | Properties | Quantity | Price / UOM | Availability |
|---|---|---|---|---|---|
|
VAP7610401A |
ItemType: Ball Valve-Threaded 2 Piece Material: 316/316L Stainless Steel EndStyle: FNPT BallMaterial: 316 Stainless Steel ActuatorType: Lever Handle SoftgoodsMaterial: MPTFE/PTFE Type: 2-Piece TrimMaterial: 316 Stainless Steel/RPTFE PressureRating: 150 psi InlettoOutletLength: 2.96 in Domestic/Import: Domestic PortType: Standard Series: 76-100 ToptoInletCenter: 2.03 in Nominal/DiameterSize: 3/4 in Apollo™ 7610401A Apollo™ 7610401A 76-100 76-100 2-Piece Standard Configuration Ball Valve, 3/4 in Nominal, FNPT End Style, Standard Port |
/
|
|
|
|
VAP7610701A |
ItemType: 2-Piece OrificeSize: 1-1/4 in Material: 316 Stainless Steel EndStyle: FNPT BallMaterial: 316 Stainless Steel ActuatorType: Lever SoftgoodsMaterial: PTFE/RPTFE TrimMaterial: 316 Stainless Steel PressureRating: 1500 psi InlettoOutletLength: 4.34 in Domestic/Import: Domestic PortType: Standard Series: 76-100 Series Media: Steam, Vacuum, Water ToptoInletCenter: 3-1/4 in Nominal/DiameterSize: 1-1/2 in Lead-Free/ContainsLead: Lead-Free FlowCoefficient(Cv): 48 Cv PackingMaterial: MPTFE Color: Silver Apollo™ 76-107-01 Apollo™ 76-100 Series 76-107-01 Ball Valve With Mounting Pad, 1-1/2 in, FNPT End, Lever, 1500 psi Pressure, 316 Stainless Steel Ball, Domestic |
/
|
|
Apollo™ Ball Valve, 2-Piece Item Type, 1-1/4 in Orifice, 316 Stainless Steel, FNPT End Style, 316 Stainless Steel Ball, Lever Actuator, PTFE/RPTFE Softgoods, 316 Stainless Steel Trim, 1500 psi, 4.34 in Inlet to Outlet Length, Domestic/Import: Domestic, Standard Port, 76-100 Series, Steam, Vacuum, Water Media, 3-1/4 in Top to Inlet Center, 1-1/2 in Nominal/Diameter Size, Lead-Free, 48 Cv Flow Coefficient (Cv), MPTFE Packing, Silver
| Actuator Type | : | Lever |
| Ball Material | : | 316 Stainless Steel |
| Color | : | Silver |
| Domestic/Import | : | Domestic |
| End Style | : | FNPT |
| Flow Coefficient (Cv) | : | 48 Cv |
| Inlet to Outlet Length | : | 4.34 in |
| Item Type | : | 2-Piece |
| Lead-Free/Contains Lead | : | Lead-Free |
| Material | : | 316 Stainless Steel |
| Media | : | Steam, Vacuum, Water |
| Nominal/Diameter Size | : | 1-1/2 in |
| Orifice Size | : | 1-1/4 in |
| Packing Material | : | MPTFE |
| Port Type | : | Standard |
| Pressure Rating | : | 1500 psi |
| Series | : | 76-100 Series |
| Softgoods Material | : | PTFE/RPTFE |
| Top to Inlet Center | : | 3-1/4 in |
| Trim Material | : | 316 Stainless Steel |
- Investment cast components
- Reinforced seats
- Mounting pad for easy actuator mounting
- Blowout-proof stem design
- Adjustable packing gland
- Stainless steel lever and nut
Line Drawing
