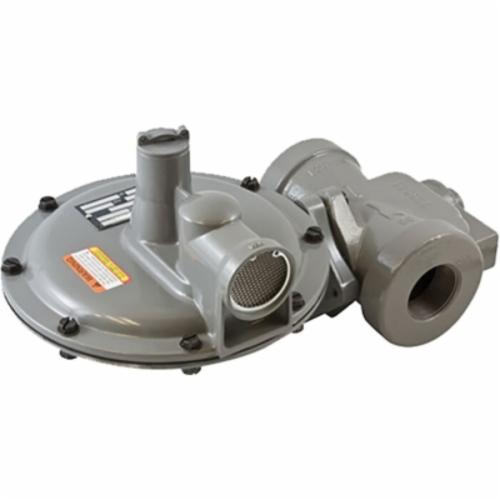

DRESSER® PIPELINE SOLUTIONS Regulator, B34SR Series, NPT Connection, 5/8 x 3/4 in Orifice, Natural Gas Media, Pressure Class: 10 lb, 125 psig, Cast Iron, Stainless Steel Trim
DRESSER® PIPELINE SOLUTIONS Regulator, B34SR Series, NPT Connection, 5/8 x 3/4 in Orifice, Natural Gas Media, Pressure Class: 10 lb, 125 psig, Cast Iron, Stainless Steel Trim
| Compare (0) selected | Item | Properties | Quantity | Price / UOM | Availability |
|---|---|---|---|---|---|
|
GRB34SR11/2 |
TrimMaterial: Stainless Steel Series: B34SR Series Media: Natural Gas PressureRating: 125 psig NominalSize: 1-1/2 in PressureClass: 10 lb FlowRate: 7500 scfh Material: Cast Iron OrificeSize: 5/8 x 3/4 in ConnectionType: NPT DRESSER® PIPELINE SOLUTIONS SR01150 DRESSER® PIPELINE SOLUTIONS B34SR Series SR01150 Regulator, 1-1/2 in Nominal, NPT, 125 psig Pressure, 7500 scfh, Cast Iron |
/
|
|
|
|
|
GRB34SR2 |
TrimMaterial: Stainless Steel Series: B34SR Series Media: Natural Gas PressureRating: 125 psig NominalSize: 2 in PressureClass: 10 lb FlowRate: 7500 scfh Material: Cast Iron OrificeSize: 5/8 x 3/4 in ConnectionType: NPT DRESSER® PIPELINE SOLUTIONS SR01151 DRESSER® PIPELINE SOLUTIONS B34SR Series SR01151 Regulator, 2 in Nominal, NPT, 125 psig Pressure, 7500 scfh, Cast Iron |
/
|
|
The B34SR is the internal relief version of the B34S Series. This model features an internal relief valve with a 1 in vent.
DRESSER® PIPELINE SOLUTIONS Regulator, B34SR Series, 1-1/2 in Nominal, NPT Connection, 5/8 x 3/4 in Orifice, Natural Gas Media, Pressure Class: 10 lb, 125 psig, Cast Iron, Stainless Steel Trim, 7500 scfh Flow Rate
| Connection Type | : | NPT |
| Flow Rate | : | 7500 scfh |
| Material | : | Cast Iron |
| Media | : | Natural Gas |
| Nominal Size | : | 1-1/2 in |
| Orifice Size | : | 5/8 x 3/4 in |
| Pressure Class | : | 10 lb |
| Pressure Rating | : | 125 psig |
| Series | : | B34SR Series |
| Trim Material | : | Stainless Steel |
- Interchangeable brass orifice
- 27 sq-in of diaphragm area
- Molded diaphragm consisting of Buna-N and nylon
- Upper diaphragm plate of plated steel
- Stainless steel lever pin
- Zinc with dichromate-plated steel lever
- One-piece molded Buna-N valve seat
- Anodized aluminum valve stem
- Delrin® vent valve with Buna-N seat
- Stainless steel vent screen
- Die cast aluminum seal cap
- Field interchangeable adjustment spring
- Controlled size breather orifice eliminates pulsation and provides normal action at low flows
- Wide range of valve body sizes including NPT and flange connections
