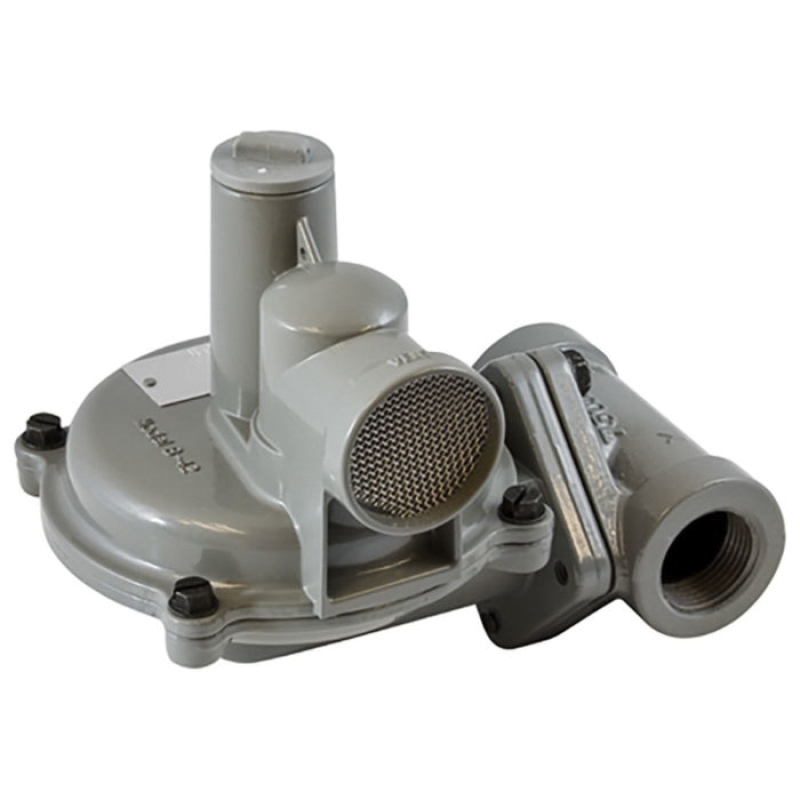

DRESSER® PIPELINE SOLUTIONS Regulator, B42R Series, NPT Connection, 1/2 x 9/16 in Orifice, Liquid Propane, Natural Gas Media, Pressure Class: 10 lb, 125 psig, Cast Iron, Aluminum Trim, Neoprene Softgoods
DRESSER® PIPELINE SOLUTIONS Regulator, B42R Series, NPT Connection, 1/2 x 9/16 in Orifice, Liquid Propane, Natural Gas Media, Pressure Class: 10 lb, 125 psig, Cast Iron, Aluminum Trim, Neoprene Softgoods
| Compare (0) selected | Item | Properties | Quantity | Price / UOM | Availability |
|---|---|---|---|---|---|
|
GRB42R1/2 |
TrimMaterial: Aluminum Series: B42R Series Media: Liquid Propane, Natural Gas PressureRating: 125 psig NominalSize: 1/2 in PressureClass: 10 lb FlowRate: 2000 scfh Material: Cast Iron OrificeSize: 1/2 x 9/16 in ConnectionType: NPT DRESSER® PIPELINE SOLUTIONS SR27534 DRESSER® PIPELINE SOLUTIONS B42R Series SR27534 Regulator, 1/2 in Nominal, NPT, 125 psig Pressure, 2000 scfh, Cast Iron |
/
|
|
|
|
|
GRB42R3/4 |
TrimMaterial: Aluminum Series: B42R Series Media: Liquid Propane, Natural Gas PressureRating: 125 psig NominalSize: 3/4 in PressureClass: 10 lb FlowRate: 2000 scfh Material: Cast Iron OrificeSize: 1/2 x 9/16 in ConnectionType: NPT DRESSER® PIPELINE SOLUTIONS SR27535 DRESSER® PIPELINE SOLUTIONS B42R Series SR27535 Regulator, 3/4 in Nominal, NPT, 125 psig Pressure, 2000 scfh, Cast Iron |
/
|
|
|
|
|
GRB42R1 |
TrimMaterial: Aluminum Series: B42R Series Media: Liquid Propane, Natural Gas PressureRating: 125 psig NominalSize: 1 in PressureClass: 10 lb FlowRate: 2000 scfh Material: Cast Iron OrificeSize: 1/2 x 9/16 in ConnectionType: NPT DRESSER® PIPELINE SOLUTIONS SR27536 DRESSER® PIPELINE SOLUTIONS B42R Series SR27536 Regulator, 1 in Nominal, NPT, 125 psig Pressure, 2000 scfh, Cast Iron |
/
|
|
The B42R is the internal relief (R) version of the B42 Series. The large 1 in internal relief valve provides exceptional relief capacity.
DRESSER® PIPELINE SOLUTIONS Regulator, B42R Series, 1/2 in Nominal, NPT Connection, 1/2 x 9/16 in Orifice, Liquid Propane, Natural Gas Media, Pressure Class: 10 lb, 125 psig, Cast Iron, Aluminum Trim, Neoprene Softgoods, 2000 scfh Flow Rate
| Connection Type | : | NPT |
| Flow Rate | : | 2000 scfh |
| Material | : | Cast Iron |
| Media | : | Liquid Propane, Natural Gas |
| Nominal Size | : | 1/2 in |
| Orifice Size | : | 1/2 x 9/16 in |
| Pressure Class | : | 10 lb |
| Pressure Rating | : | 125 psig |
| Series | : | B42R Series |
| Softgoods Material | : | Neoprene |
| Trim Material | : | Aluminum |
- Interchangeable aluminum orifice
- 12.6 sq-in of diaphragm area
- Molded deep convolution diaphragm with O-ring seal
- Plated steel 6:1 lever
- One-piece molded Buna-N valve seat
- Delrin® vent valve with Buna-N seat
- Fiberglass reinforced polyethylene seal cap with integral relief valve stop
- Field interchangeable adjustment spring
