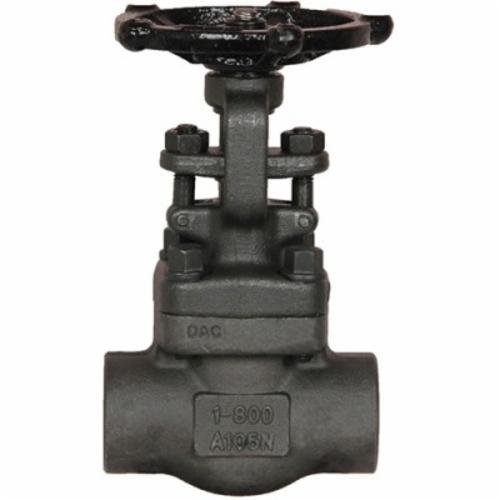

Warren Valve Gate Valve, Carbon Steel, Socket Weld End Style, Gear, Handwheel Actuator, Pressure Class: 800 lb, Full, Standard Port, 851 Series, 316L/410 Stainless Steel Trim, Graphite Softgoods
Warren Valve Gate Valve, Carbon Steel, Socket Weld End Style, Gear, Handwheel Actuator, Pressure Class: 800 lb, Full, Standard Port, 851 Series, 316L/410 Stainless Steel Trim, Graphite Softgoods
| Compare / Item # | Properties | Quantity | UOM | Price | Availability |
|---|---|---|---|---|---|
|
Nominal/DiameterSize: 1/2 in Material: Carbon Steel EndStyle: Socket Weld ActuatorType: Gear, Handwheel PressureClass: 800 lb PortType: Full, Standard Series: 851 Series InlettoOutletLength: 0.39 in ToptoInletCenter: 6.18 in TrimMaterial: 316L/410 Stainless Steel HandWheelDiameter: 3.94 in SoftgoodsMaterial: Graphite Warren Valve 0.5V851B-8SHG Warren Valve 851 Series 0.5V851B-8SHG Gate Valve, 1/2 in, Socket Weld End, Gear, Handwheel, Pressure Class: 800 lb, Carbon Steel |
|
|
||
|
|
Nominal/DiameterSize: 1 in Material: Carbon Steel EndStyle: Socket Weld ActuatorType: Gear, Handwheel PressureClass: 800 lb PortType: Full, Standard Series: 851 Series InlettoOutletLength: 0.51 in ToptoInletCenter: 7.28 in TrimMaterial: 316L/410 Stainless Steel HandWheelDiameter: 4.72 in SoftgoodsMaterial: Graphite Warren Valve 1V851B-8SHG Warren Valve 851 Series 1V851B-8SHG Gate Valve, 1 in, Socket Weld End, Gear, Handwheel, Pressure Class: 800 lb, Carbon Steel |
|
|
||
|
ItemType: Gate Valve-Threaded Nominal/DiameterSize: 1 in Material: Forged-Carbon Steel EndStyle: FNPT ActuatorType: Handwheel Type: Stem Rising PressureClass: 800 lb Domestic/Import: Import PortType: Standard Series: 851 Media: Gas,Oil,Water Warren Alloy 851-S 3/4 Warren Alloy 851-S 3/4 Gate Valve, 3/4 in Nominal, Socket Welded End Style, 800 lb, Forged Carbon Body |
|
|
||
|
|
Nominal/DiameterSize: 1-1/4 in Material: Carbon Steel EndStyle: Socket Weld ActuatorType: Gear, Handwheel PressureClass: 800 lb PortType: Full, Standard Series: 851 Series InlettoOutletLength: 0.51 in ToptoInletCenter: 8.9 in TrimMaterial: 316L/410 Stainless Steel HandWheelDiameter: 6.3 in SoftgoodsMaterial: Graphite Warren Valve 1.25V851B-8SHG Warren Valve 851 Series 1.25V851B-8SHG Gate Valve, 1-1/4 in, Socket Weld End, Gear, Handwheel, Pressure Class: 800 lb, Carbon Steel |
|
|
||
|
|
Nominal/DiameterSize: 1-1/2 in Material: Carbon Steel EndStyle: Socket Weld ActuatorType: Gear, Handwheel PressureClass: 800 lb PortType: Full, Standard Series: 851 Series InlettoOutletLength: 0.51 in ToptoInletCenter: 9.49 in TrimMaterial: 316L/410 Stainless Steel HandWheelDiameter: 6.3 in SoftgoodsMaterial: Graphite Warren Valve 1.5V851B-8SHG Warren Valve 851 Series 1.5V851B-8SHG Gate Valve, 1-1/2 in, Socket Weld End, Gear, Handwheel, Pressure Class: 800 lb, Carbon Steel |
|
|
||
|
|
Nominal/DiameterSize: 2 in Material: Carbon Steel EndStyle: Socket Weld ActuatorType: Gear, Handwheel PressureClass: 800 lb PortType: Full, Standard Series: 851 Series InlettoOutletLength: 0.65 in ToptoInletCenter: 10-3/4 in TrimMaterial: 316L/410 Stainless Steel HandWheelDiameter: 8.66 in SoftgoodsMaterial: Graphite Warren Valve 2V851B-8SHG Warren Valve 851 Series 2V851B-8SHG Gate Valve, 2 in, Socket Weld End, Gear, Handwheel, Pressure Class: 800 lb, Carbon Steel |
|
|
