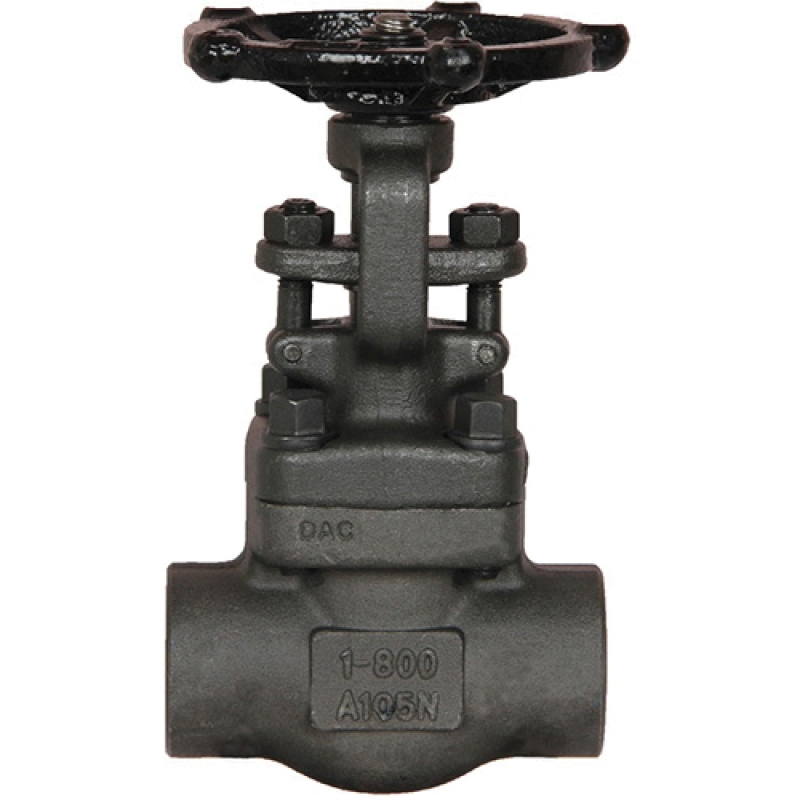

Warren Valve Gate Valve, Carbon Steel, Threaded End Style, Gear, Handwheel Actuator, Full, Standard Port, Pressure Class: 800 lb, 851 Series, 316L/410 Stainless Steel Trim, 3.94 in Hand Wheel Diameter, Graphite Softgoods
Warren Valve Gate Valve, Carbon Steel, Threaded End Style, Gear, Handwheel Actuator, Full, Standard Port, Pressure Class: 800 lb, 851 Series, 316L/410 Stainless Steel Trim, 3.94 in Hand Wheel Diameter, Graphite Softgoods
| Compare (0) selected | Item | Properties | Quantity | Price / UOM | Availability |
|---|---|---|---|---|---|
|
VW851T1/4 |
Nominal/DiameterSize: 1/4 in Warren Valve 0.25V851B-8THG Warren Valve 851 Series 0.25V851B-8THG Gate Valve, 1/4 in, Threaded End, Gear, Handwheel, Pressure Class: 800 lb, Carbon Steel |
/
|
|
|
|
|
VW851T1 |
Nominal/DiameterSize: 1 in Warren Alloy 851-T 1 Warren Alloy 851-T 1 Gate Valve, 1 in, Thread, 800 lb, Forged Carbon Body |
/
|
|
|
|
|
VW851T11/2 |
Nominal/DiameterSize: 1-1/2 in Warren Valve 1.5V851B-8THG Warren Valve 851 Series 1.5V851B-8THG Gate Valve, 1-1/2 in, Threaded End, Gear, Handwheel, Pressure Class: 800 lb, Carbon Steel |
/
|
|
|
|
|
VW851T1/2 |
Nominal/DiameterSize: 1/2 in Warren Valve 0.5V851B-8THG Warren Valve 851 Series 0.5V851B-8THG Gate Valve, 1/2 in, Threaded End, Gear, Handwheel, Pressure Class: 800 lb, Carbon Steel |
/
|
|
|
|
|
VW851T3/8 |
Nominal/DiameterSize: 3/8 in Warren Valve 0.375V851B-8THG Warren Valve 851 Series 0.375V851B-8THG Gate Valve, 3/8 in, Threaded End, Gear, Handwheel, Pressure Class: 800 lb, Carbon Steel |
/
|
|
|
|
|
VW851T3/4 |
Nominal/DiameterSize: 3/4 in Warren Alloy 851-T 3/4 Warren Alloy 851-T 3/4 Gate Valve, 3/4 in, Thread, 800 lb, Forged Carbon Body |
/
|
|
|
|
|
VW851T11/4 |
Nominal/DiameterSize: 1-1/4 in Warren Valve 1.25V851B-8THG Warren Valve 851 Series 1.25V851B-8THG Gate Valve, 1-1/4 in, Threaded End, Gear, Handwheel, Pressure Class: 800 lb, Carbon Steel |
/
|
|
|
|
|
VW851T2 |
Nominal/DiameterSize: 2 in Warren Alloy 851-T 2 Warren Alloy 851-T 2 Gate Valve, 2 in, Thread, 800 lb, Forged Carbon Body |
/
|
|
Warren valve is a pioneer in the forged gate market. Warren Valve manufacturing capabilities for API 602 forged gate valves include 1/4 to 2 in, ANSI pressure class 150 to 1500 lb. Materials of construction include carbon steel, stainless steel, alloy 20 and other exotic materials.
Warren Valve Gate Valve, 1/4 in Nominal/Diameter Size, Carbon Steel, Threaded End Style, Gear, Handwheel Actuator, Full, Standard Port, Pressure Class: 800 lb, 851 Series, 0.39 in Inlet to Outlet Length, 6.18 in Top to Inlet Center, 316L/410 Stainless Steel Trim, 3.94 in Hand Wheel Diameter, Graphite Softgoods
| Actuator Type | : | Gear, Handwheel |
| End Style | : | Threaded |
| Hand Wheel Diameter | : | 3.94 in |
| Inlet to Outlet Length | : | 0.39 in |
| Material | : | Carbon Steel |
| Nominal/Diameter Size | : | 1/4 in |
| Port Type | : | Full, Standard |
| Pressure Class | : | 800 lb |
| Series | : | 851 Series |
| Softgoods Material | : | Graphite |
| Top to Inlet Center | : | 6.18 in |
| Trim Material | : | 316L/410 Stainless Steel |
- OS and Y gate valve
- Rising stem
- Solid wedge
- Graphite packing and gasket (low fugitive emission)
