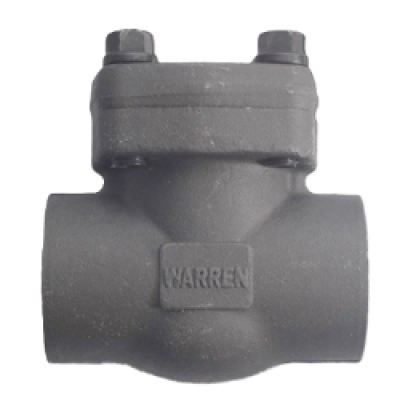

Warren Valve Check Valve, Piston TYPE, 854B Series, Pressure Class: 800 lb, Socket Weld End Style, Carbon Steel, Gear Actuator, Carbon Steel Trim, Graphite Softgoods
Warren Valve Check Valve, Piston TYPE, 854B Series, Pressure Class: 800 lb, Socket Weld End Style, Carbon Steel, Gear Actuator, Carbon Steel Trim, Graphite Softgoods
| Compare (0) selected | Item | Properties | Quantity | Price / UOM | Availability |
|---|---|---|---|---|---|
|
VW854S1/2 |
Series: 854B Series InlettoOutletLength: 3.11 in PressureClass: 800 lb ToptoInletCenter: 2.28 in EndStyle: Socket Weld Type: Piston Nominal/DiameterSize: 1/2 in Material: Carbon Steel ActuatorType: Gear TrimMaterial: Carbon Steel SoftgoodsMaterial: Graphite Warren Valve 0.5V854B-8S0G Warren Valve 854B Series 0.5V854B-8S0G Check Valve, 1/2 in, Socket Weld End, Pressure Class: 800 lb, Carbon Steel |
/
|
|
|
|
|
VW854S3/4 |
Series: 854B Series InlettoOutletLength: 3.62 in PressureClass: 800 lb ToptoInletCenter: 2.28 in EndStyle: Socket Weld Type: Piston Nominal/DiameterSize: 3/4 in Material: Carbon Steel ActuatorType: Gear TrimMaterial: Carbon Steel SoftgoodsMaterial: Graphite Warren Valve 0.75V854B-8S0G Warren Valve 854B Series 0.75V854B-8S0G Check Valve, 3/4 in, Socket Weld End, Pressure Class: 800 lb, Carbon Steel |
/
|
|
|
|
|
VW854S1 |
Series: 854B Series InlettoOutletLength: 4.37 in PressureClass: 800 lb ToptoInletCenter: 2.95 in EndStyle: Socket Weld Type: Piston Nominal/DiameterSize: 1 in Material: Carbon Steel ActuatorType: Gear TrimMaterial: Carbon Steel SoftgoodsMaterial: Graphite Warren Valve 1V854B-8S0G Warren Valve 854B Series 1V854B-8S0G Check Valve, 1 in, Socket Weld End, Pressure Class: 800 lb, Carbon Steel |
/
|
|
|
|
|
VW854S11/4 |
Series: 854B Series InlettoOutletLength: 4.72 in PressureClass: 800 lb ToptoInletCenter: 3.35 in EndStyle: Socket Weld Type: Piston Nominal/DiameterSize: 1-1/4 in Material: Carbon Steel ActuatorType: Gear TrimMaterial: Carbon Steel SoftgoodsMaterial: Graphite Warren Valve 1.25V854B-8S0G Warren Valve 854B Series 1.25V854B-8S0G Check Valve, 1-1/4 in, Socket Weld End, Pressure Class: 800 lb, Carbon Steel |
/
|
|
|
|
|
VW854S11/2 |
Series: 854B Series InlettoOutletLength: 5.98 in PressureClass: 800 lb ToptoInletCenter: 3.82 in EndStyle: Socket Weld Type: Piston Nominal/DiameterSize: 1-1/2 in Material: Carbon Steel ActuatorType: Gear TrimMaterial: Carbon Steel SoftgoodsMaterial: Graphite Warren Valve 1.5V854B-8S0G Warren Valve 854B Series 1.5V854B-8S0G Check Valve, 1-1/2 in, Socket Weld End, Pressure Class: 800 lb, Carbon Steel |
/
|
|
|
|
|
VW854S2 |
Series: 854B Series InlettoOutletLength: 6.77 in PressureClass: 800 lb ToptoInletCenter: 4-1/4 in EndStyle: Socket Weld Type: Piston Nominal/DiameterSize: 2 in Material: Carbon Steel ActuatorType: Gear TrimMaterial: Carbon Steel SoftgoodsMaterial: Graphite Warren Valve 2V854B-8S0G Warren Valve 854B Series 2V854B-8S0G Check Valve, 2 in, Socket Weld End, Pressure Class: 800 lb, Carbon Steel |
/
|
|
Warren valve is a pioneer in the check valve market. Warren offers a forged piston check valve design. Manufacturing capabilities include 1/4 to 2 in, ANSI 150 to 1500 lb. Materials of construction include carbon steel, stainless steel, alloy 20 and other exotic materials.
Warren Valve Check Valve, Piston TYPE, 854B Series, 3.11 in Inlet to Outlet Length, Pressure Class: 800 lb, 2.28 in Top to Inlet Center, Socket Weld End Style, 1/2 in Nominal/Diameter Size, Carbon Steel, Gear Actuator, Carbon Steel Trim, Graphite Softgoods
| Actuator Type | : | Gear |
| End Style | : | Socket Weld |
| Inlet to Outlet Length | : | 3.11 in |
| Material | : | Carbon Steel |
| Nominal/Diameter Size | : | 1/2 in |
| Pressure Class | : | 800 lb |
| Series | : | 854B Series |
| Softgoods Material | : | Graphite |
| Top to Inlet Center | : | 2.28 in |
| Trim Material | : | Carbon Steel |
| Type | : | Piston |
- Metal-seated-design
- Strong one-piece construction to withstand the severe shock of check valve service
