Carbon Steel Press Raised Face Adapter Flange 150lb

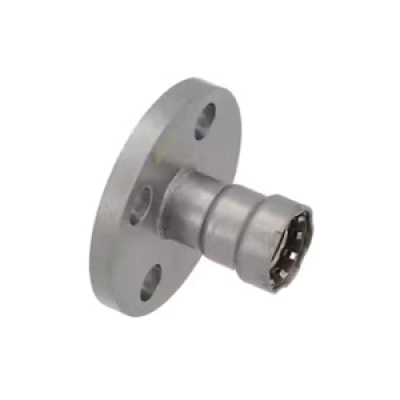

MegaPress®G Raised Face Adapter Flange, Raised Face, Press End, Pressure Class: 150 lb, Carbon
| Compare (0) selected | Item | Properties | Quantity | Price / UOM | Availability |
|---|---|---|---|---|---|
|
MPGFL2 |
ItemType: Raised Face Nominal/DiameterSize: 2 in Material: Carbon Steel PressureRating: 200 psi TemperatureRating: -40 to 180 deg F Finish: Zinc Nickel-Plated EndStyle: Press Dimensions: 5.91 in Dia x 3.9 in L PressureClass: 150 lb SuitableForUseWith: SCH 10 to SCH 40 Carbon Steel Pipes MegaPress®G 25786 MegaPress®G 25786 Raised Face Adapter Flange, Raised Face, 2 in, Press End, Pressure Class: 150 lb, Carbon Steel, Zinc Nickel-Plated |
/
|
|
|
|
MPGFLXL21/2 |

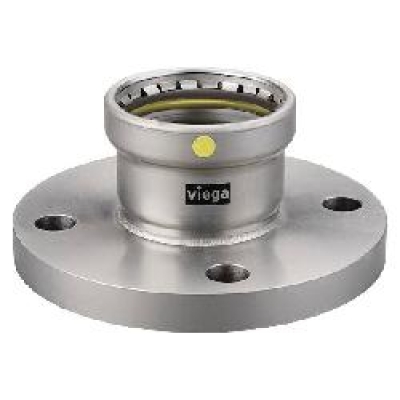

ItemType: Flange-Press Nominal/DiameterSize: 2-1/2 in Material: Carbon Steel PressureRating: 125 psi for Fuel Gas/200 psi for Other Applications Media: Gas TemperatureRating: 0 To 250 deg F Domestic/Import: Import Finish: EndStyle: Press x Flanged PressureClass: 150 lb MegaPress®G 28875 MegaPress®G 28875 Model 6659.5XL Adapter, 2-1/2 in Nominal, Press x Flanged End Style, SCH 5 to 40, 200 psi Pressure, Carbon Steel, Import |
/
|
|
|
|
|
MPGFLXL3 |
ItemType: Flange-Press Nominal/DiameterSize: 3 in Material: Carbon Steel PressureRating: 125 psi for Fuel Gas/200 psi for Other Applications Media: Gas TemperatureRating: 0 To 250 deg F Domestic/Import: Import Finish: EndStyle: Press x Flanged PressureClass: 150 lb MegaPress®G 28880 MegaPress®G 28880 Model 6659.5XL Adapter, 3 in Nominal, Press x Flanged End Style, SCH 5 to 40, 200 psi Pressure, Carbon Steel, Import |
/
|
|
|
|
|
MPGFLXL4 |
ItemType: Flange-Press Nominal/DiameterSize: 4 in Material: Carbon Steel PressureRating: 125 psi for Fuel Gas/200 psi for Other Applications Media: Gas TemperatureRating: 0 To 250 deg F Domestic/Import: Import Finish: EndStyle: PressureClass: 150 lb MegaPress®G 28885 MegaPress®G 28885 Model 6659.5XL Adapter, 4 in Nominal, Press x Flanged End Style, SCH 5 to 40, 200 psi Pressure, Carbon Steel, Import |
/
|
|
Viega's MegaPressG adapter flange is designed for use with the MegaPressG black iron pipe joining system. The flange uses Viega's press end technology, eliminating the need for threading or welding and saving valuable time. Viega MegaPressG fittings are designed for use in piping systems utilizing ASTM A53, A106, A135, A795 SCH 5 to sch40 black iron pipe. Fuel gas or fuel oil systems require SCH 40 black iron pipe.
MegaPress®G Raised Face Adapter Flange, Carbon Steel, 200 psi, -40 to 180 deg F, Finish: Zinc Nickel-Plated, Press End Style, 2 in Nominal/Diameter Size, Raised Face Item Type, 5.91 in Dia x 3.9 in L, Pressure Class: 150 lb, For Use With: SCH 10 to SCH 40 Carbon Steel Pipes
| Dimensions | : | 5.91 in Dia x 3.9 in L |
| End Style | : | Press |
| Finish | : | Zinc Nickel-Plated |
| Item Type | : | Raised Face |
| Material | : | Carbon Steel |
| Nominal/Diameter Size | : | 2 in |
| Pressure Class | : | 150 lb |
| Pressure Rating | : | 200 psi |
| Suitable For Use With | : | SCH 10 to SCH 40 Carbon Steel Pipes |
| Temperature Rating | : | -40 to 180 deg F |
- Carbon steel with corrosion-resistant zinc-nickel coating
- 304 stainless steel separator ring for 1/2 in to 2 in flanges
- Graphite separator ring for 2-1/2 in to 4 in flanges
- 420 stainless steel grip ring
- HNBR sealing element
- Smart connect technology
