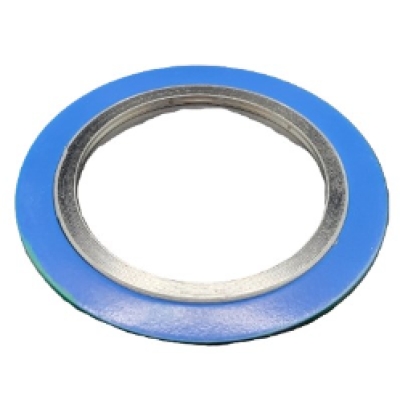

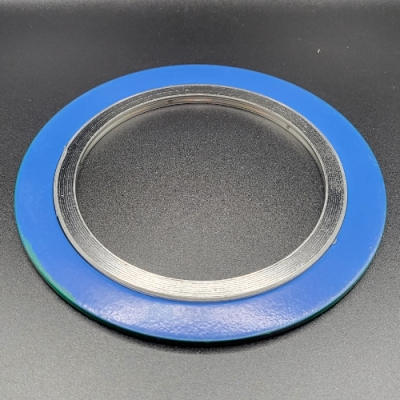

Spiral Wound 304 Ring Gasket 1/8in Thickness 300-600lb
1 inch Spiral Wound Gasket, 304 Stainless Steel, 300-600 LB, 1/8 inch Thickness Compressed
| Compare (0) selected | Item | Properties | Quantity | Price / UOM | Availability |
|---|---|---|---|---|---|
|
GXF3/4 |
ItemType: Gasket-Spiral Wound Nominal/DiameterSize: 3/4 in Material: 304/304L Stainless Steel Thickness: 1/8 in PressureClass: 300,400,600 lb Color: Yellow with Gray Stripe Series: Spiral Wound Approved Vendor 3/4 inch Spiral Wound Gasket, 304 Stainless Steel, 300-600 LB, 1/8 inch Thickness Compressed |
/
|
|
|
|
|
GXF1 |
ItemType: Gasket-Spiral Wound Nominal/DiameterSize: 1 in Material: 304/304L Stainless Steel Thickness: 1/8 in PressureClass: 300,400,600 lb Color: Yellow with Gray Stripe Series: Spiral Wound Approved Vendor 1 inch Spiral Wound Gasket, 304 Stainless Steel, 300-600 LB, 1/8 inch Thickness Compressed |
/
|
|
|
|
|
GXF11/4 |
ItemType: Gasket-Spiral Wound Nominal/DiameterSize: 1-1/4 in Material: 304/304L Stainless Steel Thickness: 1/8 in PressureClass: 300,400,600 lb Color: Yellow with Gray Stripe Series: Spiral Wound Approved Vendor 1-1/4 inch Spiral Wound Gasket, 304 Stainless Steel, 300-600 LB, 1/8 inch Thickness Compressed |
/
|
|
|
|
|
GXF11/2 |
ItemType: Gasket-Spiral Wound Nominal/DiameterSize: 1-1/2 in Material: 304/304L Stainless Steel Thickness: 1/8 in PressureClass: 300,400,600 lb Color: Yellow with Gray Stripe Series: Spiral Wound Approved Vendor 1-1/2 inch Spiral Wound Gasket, 304 Stainless Steel, 300-600 LB, 1/8 inch Thickness Compressed |
/
|
|
|
|
|
GXF3 |
ItemType: Gasket-Spiral Wound Nominal/DiameterSize: 3 in Material: 304/304L Stainless Steel Thickness: 1/8 in PressureClass: 300,400,600 lb Color: Yellow with Gray Stripe Series: Spiral Wound Approved Vendor 3 inch Spiral Wound Gasket, 304 Stainless Steel, 300-600 LB, 1/8 inch Thickness Compressed |
/
|
|
|
|
|
GXF2 |
ItemType: Gasket-Spiral Wound Nominal/DiameterSize: 2 in Material: 304/304L Stainless Steel Thickness: 1/8 in PressureClass: 300,400,600 lb Color: Yellow with Gray Stripe Series: Spiral Wound Approved Vendor 2 inch Spiral Wound Gasket, 304 Stainless Steel, 300-600 LB, 1/8 inch Thickness Compressed |
/
|
|
|
|
|
GXF21/2 |
ItemType: Gasket-Spiral Wound Nominal/DiameterSize: 2-1/2 in Material: 304/304L Stainless Steel Thickness: 1/8 in PressureClass: 300,400,600 lb Color: Yellow with Gray Stripe Series: Spiral Wound Approved Vendor 2-1/2 inch Spiral Wound Gasket, 304 Stainless Steel, 300-600 LB, 1/8 inch Thickness Compressed |
/
|
|
|
|
|
GXF4 |
ItemType: Gasket-Spiral Wound Nominal/DiameterSize: 4 in Material: 304/304L Stainless Steel Thickness: 1/8 in PressureClass: 300,400,600 lb Color: Yellow with Gray Stripe Series: Spiral Wound Approved Vendor 4 inch Spiral Wound Gasket, 304 Stainless Steel, 300-600 LB, 1/8 inch Thickness Compressed |
/
|
|
|
|
GXF5 |
ItemType: Gasket-Spiral Wound Nominal/DiameterSize: 5 in Material: 304/304L Stainless Steel Thickness: 1/8 in PressureClass: 300,400,600 lb Color: Yellow with Gray Stripe Series: Spiral Wound Approved Vendor 5 inch Spiral Wound Gasket, 304 Stainless Steel, 300-600 LB, 1/8 inch Thickness Compressed |
/
|
|
|
|
|
GXF6 |
ItemType: Gasket-Spiral Wound Nominal/DiameterSize: 6 in Material: 304/304L Stainless Steel Thickness: 1/8 in PressureClass: 300,400,600 lb Color: Yellow with Gray Stripe Series: Spiral Wound Approved Vendor 6 inch Spiral Wound Gasket, 304 Stainless Steel, 300-600 LB, 1/8 inch Thickness Compressed |
/
|
|
|
|
|
GXF8 |
ItemType: Gasket-Spiral Wound Nominal/DiameterSize: 8 in Material: 304/304L Stainless Steel Thickness: 1/8 in PressureClass: 300,400,600 lb Color: Yellow with Gray Stripe Series: Spiral Wound Approved Vendor 8 inch Spiral Wound Gasket, 304 Stainless Steel, 300-600 LB, 1/8 inch Thickness Compressed |
/
|
|
|
|
|
GXF10 |
ItemType: Gasket-Spiral Wound Nominal/DiameterSize: 10 in Material: 304/304L Stainless Steel Thickness: 1/8 in PressureClass: 300,400,600 lb Color: Yellow with Gray Stripe Series: Spiral Wound Approved Vendor 10 inch Spiral Wound Gasket, 304 Stainless Steel, 300-600 LB, 1/8 inch Thickness Compressed |
/
|
|
|
|
|
GXF12 |
ItemType: Gasket-Spiral Wound Nominal/DiameterSize: 12 in Material: 304/304L Stainless Steel Thickness: 1/8 in PressureClass: 300,400,600 lb Color: Yellow with Gray Stripe Series: Spiral Wound Approved Vendor 12 inch Spiral Wound Gasket, 304 Stainless Steel, 300-600 LB, 1/8 inch Thickness Compressed |
/
|
|
3/4 inch Spiral Wound Gasket, 304 Stainless Steel , 1/8 inch Thickness Compressed, Temperature range (F): 1400 to -320, Pressure Class 300, 400, 600, Color Code: Yellow with Gray Stripe
| Color | : | Yellow with Gray Stripe |
| Item Type | : | Gasket-Spiral Wound |
| Material | : | 304/304L Stainless Steel |
| Nominal/Diameter Size | : | 3/4 in |
| Pressure Class | : | 300,400,600 lb |
| Series | : | Spiral Wound |
| Temperature Range | : | 1400 to -320 deg f |
| Thickness | : | 1/8 in |
