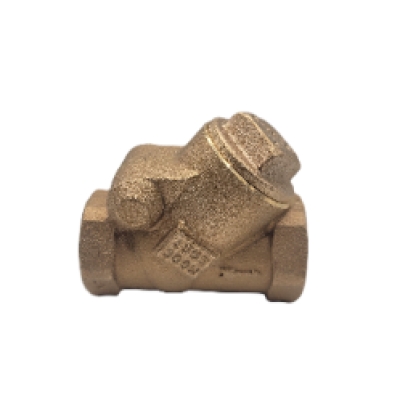

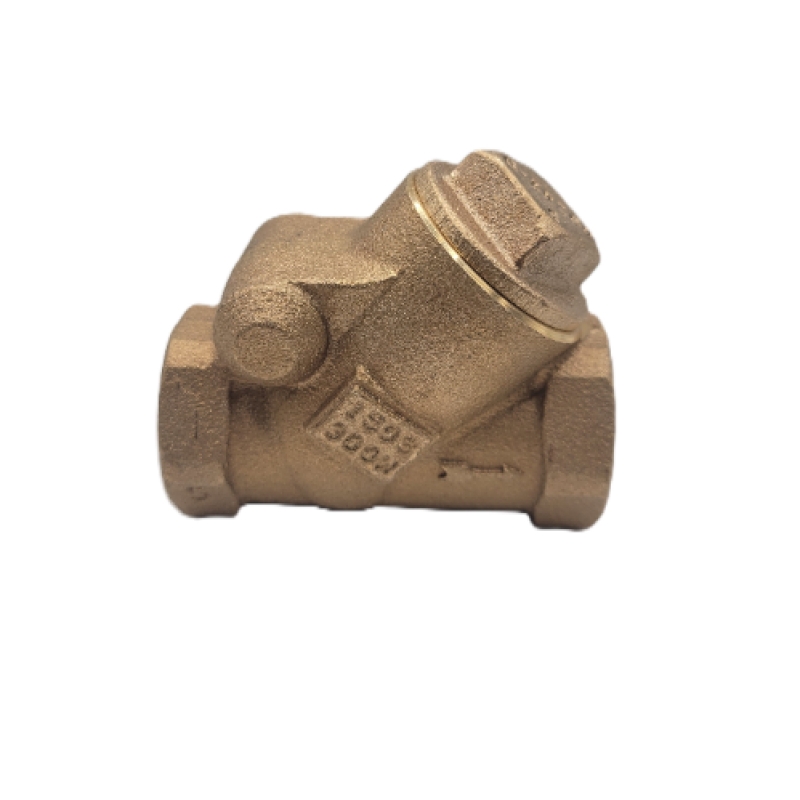

Milwaukee Valve Horizontal Y-Pattern Swing Check Valve, Thread End Style, 300 lb WOG, Bronze Body, Domestic
Milwaukee Valve Horizontal Y-Pattern Swing Check Valve, Thread End Style, 300 lb WOG, Bronze Body, Domestic
| Compare (0) selected | Item | Properties | Quantity | Price / UOM | Availability |
|---|---|---|---|---|---|
|
VM515Y1/2 |
ItemType: Swing Check Valve-Threaded Nominal/DiameterSize: 1/2 in Material: Bronze EndStyle: Thread Type: Horizontal Y-Pattern TrimMaterial: Brass/Bronze PressureRating: 150 psi SWP/300 psi WOG InlettoOutletLength: 2.63 in Domestic/Import: Domestic Series: 515Y LowLeadCompliance: No ToptoInletCenter: 1-3/4 in Milwaukee Valve 515Y-12 Milwaukee Valve 515Y-12 Horizontal Y-Pattern Swing Check Valve, 1/2 in Nominal, Thread End Style, 300 lb WOG, Bronze Body, Domestic |
/
|
|
|
|
|
VM515Y3/4 |
ItemType: Swing Check Valve-Threaded Nominal/DiameterSize: 3/4 in Material: Bronze EndStyle: Threaded Type: Horizontal Y-Pattern TrimMaterial: Brass/Bronze PressureRating: 150 psi SWP/300 psi WOG InlettoOutletLength: 3 in Domestic/Import: Domestic Series: 515Y LowLeadCompliance: No ToptoInletCenter: 1.94 in Milwaukee Valve 515Y - 34 Hammond Valve 515Y - 34 515Y Horizontal Y-Pattern Swing Check Valve, 3/4 in Nominal, Threaded End Style, Cast Bronze Body |
/
|
|
|
|
|
VM515Y1 |
ItemType: Swing Check Valve-Threaded Nominal/DiameterSize: 1 in Material: Bronze EndStyle: Thread Type: Horizontal Y-Pattern TrimMaterial: Brass/Bronze PressureRating: 150 psi SWP/300 psi WOG InlettoOutletLength: 3.69 in Domestic/Import: Domestic Series: 515Y LowLeadCompliance: No ToptoInletCenter: 2-1/2 in Milwaukee Valve 515Y-100 Milwaukee Valve 515Y-100 Horizontal Y-Pattern Swing Check Valve, 1 in Nominal, Thread End Style, 300 lb WOG, Bronze Body, Domestic |
/
|
|
|
|
|
VM515Y11/4 |
ItemType: Swing Check Valve-Threaded Nominal/DiameterSize: 1-1/4 in Material: Bronze EndStyle: Thread Type: Horizontal Y-Pattern TrimMaterial: Brass/Bronze PressureRating: 150 psi SWP/300 psi WOG InlettoOutletLength: 4.38 in Domestic/Import: Domestic Series: 515Y LowLeadCompliance: No ToptoInletCenter: 3 in Milwaukee Valve 515Y-114 Milwaukee Valve 515Y-114 Horizontal Y-Pattern Swing Check Valve, 1-1/4 in Nominal, Thread End Style, 300 lb WOG, Bronze Body, Domestic |
/
|
|
|
|
|
VM515Y11/2 |
ItemType: Swing Check Valve-Threaded Nominal/DiameterSize: 2 in Material: Bronze EndStyle: Thread Type: Horizontal Y-Pattern TrimMaterial: Bronze PressureRating: 150 psi SWP/300 psi WOG InlettoOutletLength: 5.88 in Domestic/Import: Domestic Series: 515Y LowLeadCompliance: No ToptoInletCenter: 4 in Milwaukee Valve 515Y-200 Milwaukee Valve 515Y-200 Horizontal Y-Pattern Swing Check Valve, 2 in Nominal, Thread End Style, 300 lb WOG, Bronze Body, Domestic |
/
|
|
|
|
|
VM515Y2 |
ItemType: Swing Check Valve-Threaded Nominal/DiameterSize: 2 in Material: Bronze EndStyle: Threaded Type: Horizontal Y-Pattern TrimMaterial: Bronze/Cast Bronze PressureRating: 150 psi SWP/300 psi WOG InlettoOutletLength: 5.88 in Domestic/Import: Domestic Series: 515Y LowLeadCompliance: No ToptoInletCenter: 4 in Milwaukee Valve 515Y - 200 Hammond Valve 515Y - 200 515Y Horizontal Y-Pattern Swing Check Valve, 2 in Nominal, Threaded End Style, Cast Bronze Body |
/
|
|
Hammond Valve Swing Check Valve, Horizontal Y-Pattern, Series: 515Y, 3/4 in Nominal, Threaded End Style, 150 psi SWP/300 psi WOG Pressure, 3 in Inlet to Outlet Length, 1.94 in Top to Inlet Center, Cast Bronze Body, Brass/Bronze Trim
| Actuator Type | : | Lever Handle |
| Domestic/Import | : | Domestic |
| End Style | : | Threaded |
| Inlet to Outlet Length | : | 3 in |
| Item Type | : | Swing Check Valve-Threaded |
| Low Lead Compliance | : | No |
| Material | : | Bronze |
| Nominal/Diameter Size | : | 3/4 in |
| Pressure Class | : | 300 lb WOG |
| Pressure Rating | : | 150 psi SWP/300 psi WOG |
| Series | : | 515Y |
| Top to Inlet Center | : | 1.94 in |
| Trim Material | : | Brass/Bronze |
| Type | : | Horizontal Y-Pattern |
